13ton disc type heavy duty trailer axle with square and round  tube

Feature:

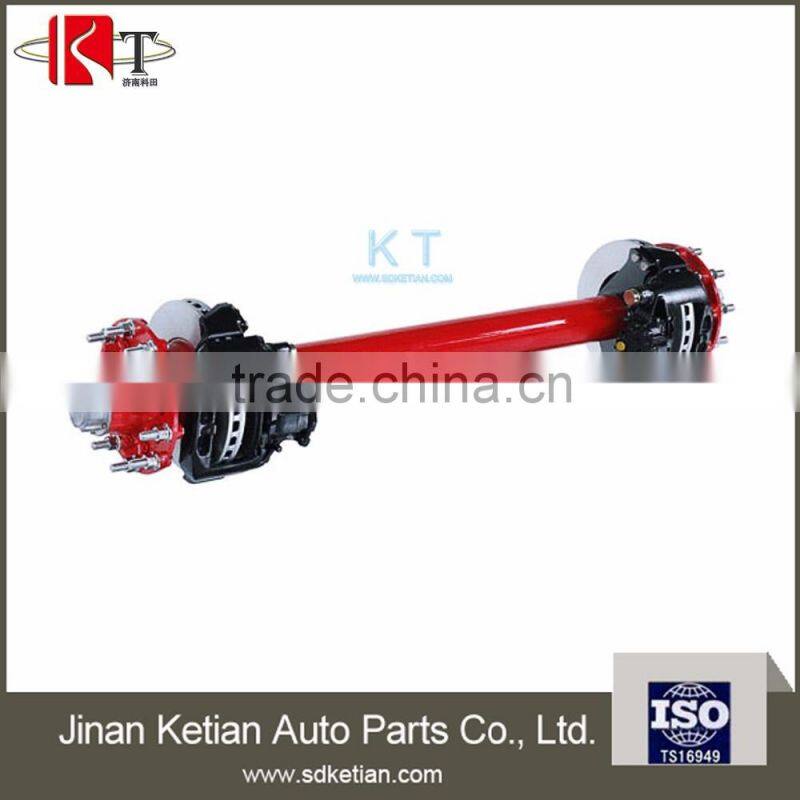

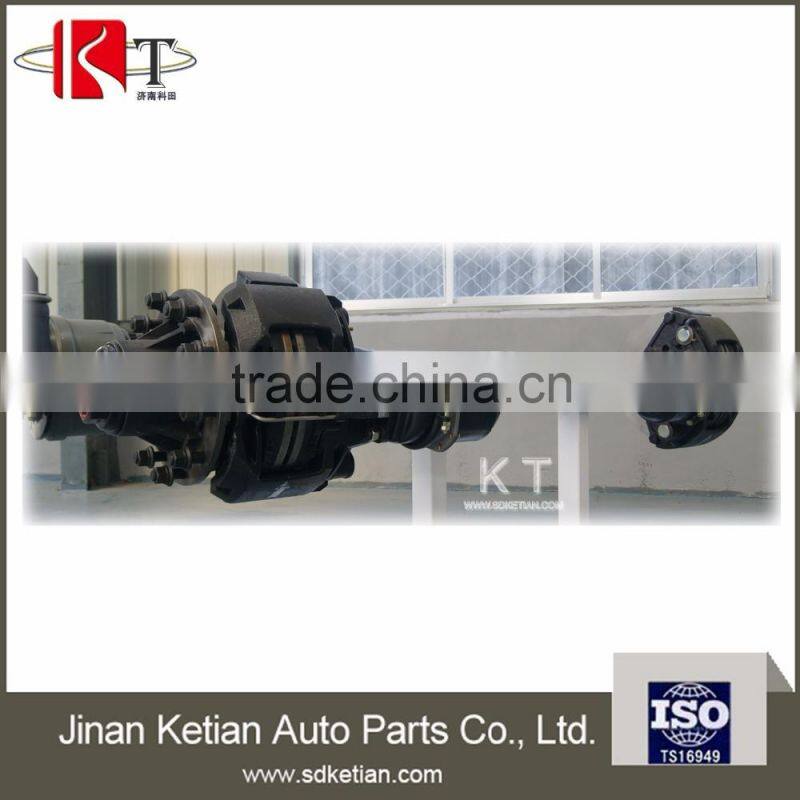

Semi trailer axle with disc brake 10 holes wheel  disposition.KTD/13t:
1.rated load:13000kg

2.track:1840mm

3.axle tube: 150mm

4.Studs:10*M22*1.5

5.P.C.D:335mm

6.H:281mm

7.Brake size:22.5

8.recommended wheel:7.5V-20

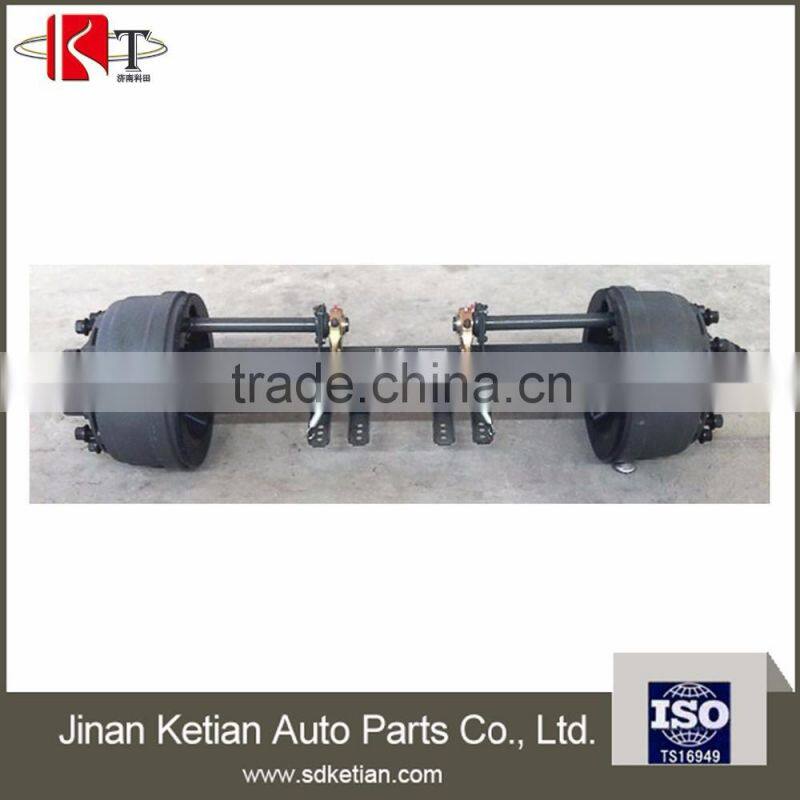

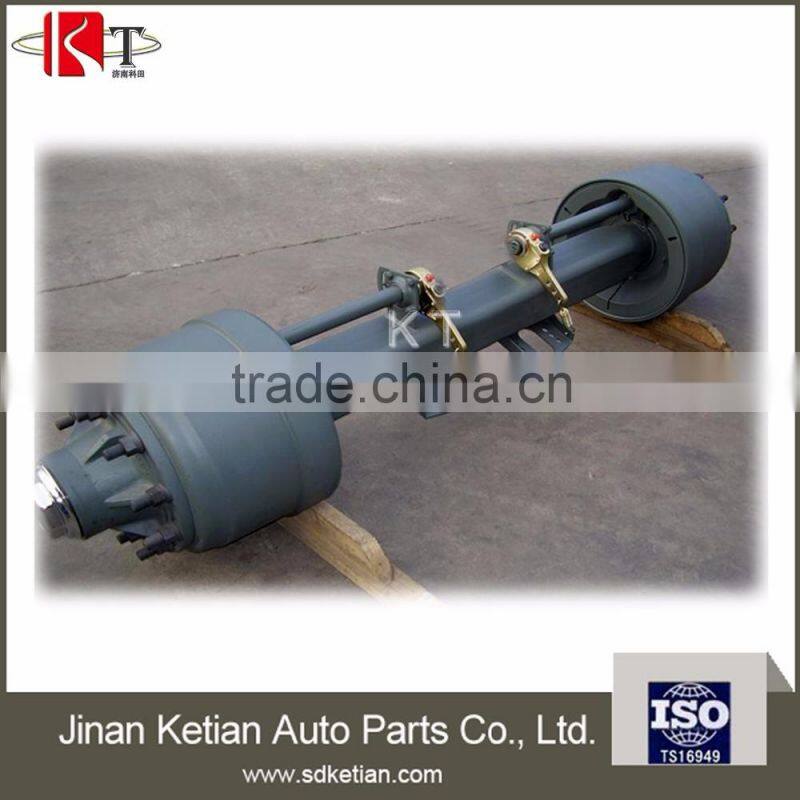

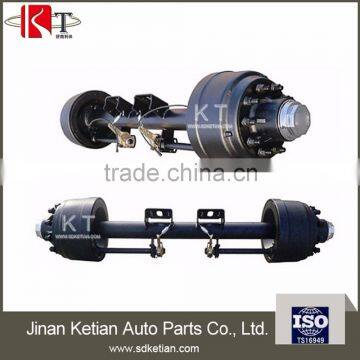

American round style axle 13t,

1.track:1840mm

2.brake 420*180mm

3.axle beam:127*127*13mm

4.P.C.D:335MM

5.centre hole:281MM

6.BOLT:10-M22*1.5

7.brake chamber center distance:390mm

Characteristics:

1).Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.

2).High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue capability.

3).High performance premium non-asbestos brake linings, extend service life.

4).Easy for ABS installation.

5).Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.

6).New tight fit hub capO rings, high property for sealing.

7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.

8).Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.
