Integral axles beam for trailer axles assembly ,Truck trailer axle beam

Integral axles beam for trailer axles assembly ,Truck trailer axle beam

Axle Featurers:

1. Axle beam use 20Mn2 seamless pipe, through one-piece press forging and special heat-treatment, which has great over loading capacity and high intensity.

2. Axle spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.

3.Axle spindle is connected by the by submerged -arc welding, which make the whole beam more reliable and solid.

4.Axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.

5.Axle grease lubricant is supplied by EXXON Mobile which could provide high lubricating performance and protect bearing well.

6.Axle brake lining is high performance, non-asbestos, non-pollution and long service life. To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.

7.Axle bearing is adopted famous brand in China, with the advantages of over loading capability, High rotating speed, good intensity, abrade resistant and heat resistant.

8 Axle wheel hub and brake drum use the international standard material of ball iron and gary iron separately, which has the advantages of over loading capability, abrade resistant, heat resistant and do not distort.

9.Axle be National Automobile Monitor and Inspe ction Center certified ,axle shaft that undergoes over 1.2 million times of Fatigue testing and built to meet or exceed national industry standards.

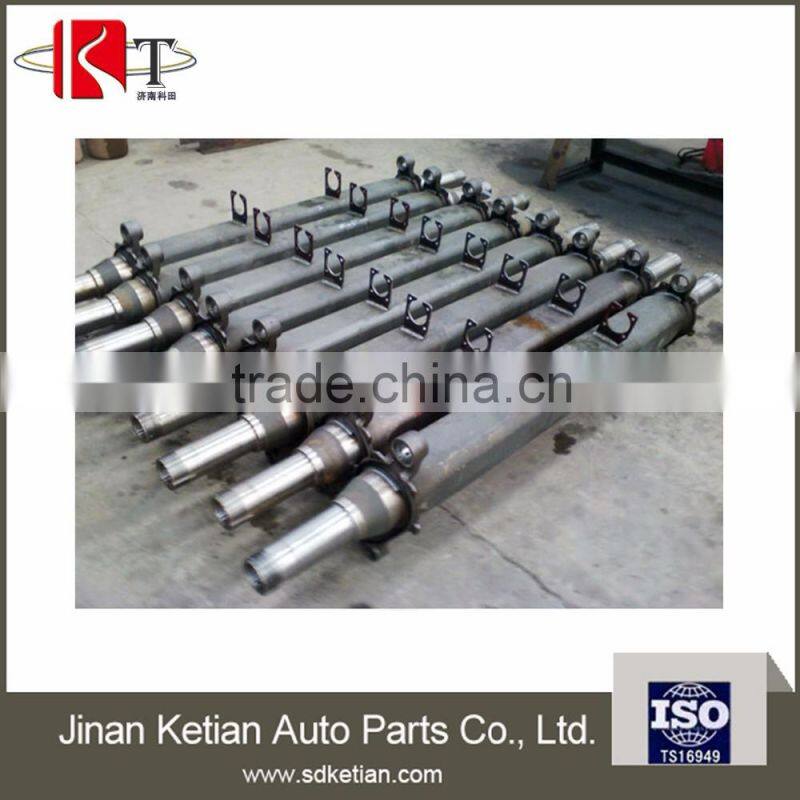

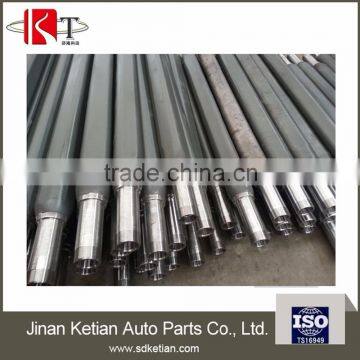

 America Axle beam:

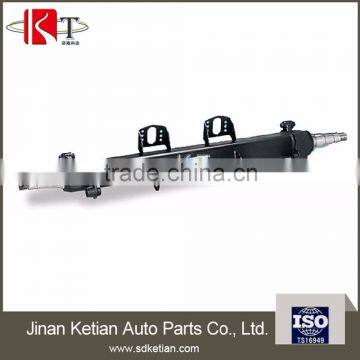

 German type Axle beam:

Integral axles beam for trailer axles assembly ,Truck trailer axle beam

Poducts package:

Our factory:

Our show

Our certificate:
