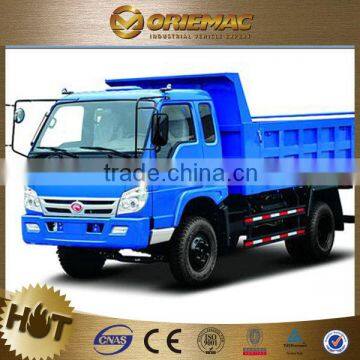

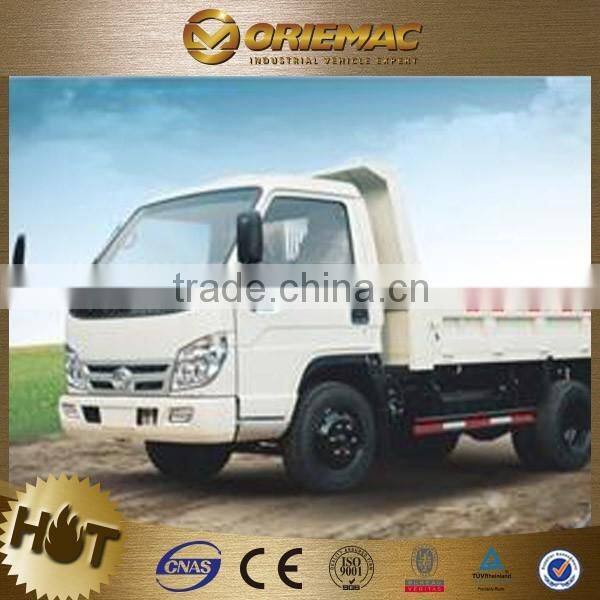

Foton BJ3073DCPFA-S4 Small Dump Truck for Sale

FOB Price

US$ 1,200 - 1,250 / Set

1 Set(Min. Order)

Port Shanghai Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Drive Wheel	4x2	Capacity (Load)	1 - 10t
Horsepower	150 - 250hp	Condition	New
Transmission Type	Manual	Emission Standard	Euro 2
Fuel Type	Diesel
Gross Vehicle Weight	4790	Place of Origin	Shandong, China
Brand Name	Foton	Model Number	BJ3073DCPFA-S4/3052AEL34100L34-1
Dimensions (L x W x H) (mm)	613022002570

Product Description

foton BJ3073DCPFA-S4 small dump truck for sale !!

BJ3073DCPFA-S4/3072AEL34100L35-1(RHD)


Product positioning: short-distance transportation or transferring of agricultural and sideline products and construction materials.


Working condition: rural roads, pavement of sand/cement roads and mountain roads.


Engine
Engine model and emission		phaser135Ti (Euro II)
Engine type		Vertical/in-line/water-cooling/ four-stroke/ supercharged intercooler
Rated power of engine (kw/rpm)		101/2600
Maximum torque (N.m/rpm)		445/1400-1600
Engine displacement (L)		3.99
Gearbox
Gearbox type		WLT6T120
Gearbox speed ratio		i1:6.32,i2:3.927,i3:2.283,i4:1.396,i5:1.00,i6:0.789
Rear axle
Rear axle type		Dead axle full float axle
Rear axle load (T)		7.6T
Rear axle speed ratio		6.33
Dumping type/oil cylinder size		Single-top amplification mechanism/ HG-E160×700
Cabin type/width		Right side driving, flat head,single-row/1900
Drive form		4×2
Tire type/number		8.25-20/6+1
Brake	Service brake type	Drum type, air braking
	Parking brake type	Energy storage spring rear wheel braking
Steering device		Power steering
Weight parameter
Curb weight (Kg)		4200
Rated load capacity (Kg)		6000
Performance parameter
Maximum speed (km/h)		90
Maximum gradeability (%)		≥25%
Fuel consumption per hundred kilometers (L/100km)		12.45
Minimum turning radius (m)		7.599
Minimum ground clearance (mm)		≥200
Maximum lift degree (°)		51.9°
Dimension parameters
Overall dimensions (LxWxH)mm		6130×2200×2600
Internal cargo body dimensions (LxWxH)mm		4200×2100×800
Cargo body capacity (m³)		7
Wheelbase (mm)		3450
Front/rear wheel track (mm)		1669/1680
Front/rear suspension (mm)		1130/1550
Rated voltage (V)		24
Capacity of the fuel tank (L)		120
Standard configuration		Heater,Spare tire, electronically controlled flameout, adjustable steering wheel
Selective configuration		air-conditioner
The engine with strong power is of safety, reliability, good acceleration on start-up, outstanding power performance.

Hydraulic power steering makes the steering convenient, safe and reliable. Adjustable steering wheel can effectively relieve the burden of driver.

Mallery single-top amplification mechanism has great lifting force. The lifting is smooth with stable and reliable performance.

The cab has front tilting design. Easy engine maintenance and repair.
