Outdoor DOCSIS3.0 CMTS with 16 Frequency Points Downstream

Specifications

DOCSIS3.0 Outdoor CMTS cable modem termination system

 Summarize

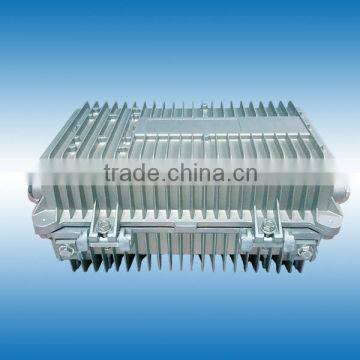

JH-F3416 is the outdoor CMTS of D3 series, it is tailor made for those networks which deploy CMTS on optical nodes, it can be installed in simple machine room, sharing box even wall hanging. It has all core D3 functions and high performance, added more RF port in order to connect current optical equipment.

It is Chassis cooling mode, no fan rain-proof design, mute operation. The data port can connect upward to Ethernet and EPON. As to RF port, there are 4 TV IN for connecting TV signals from the optical receiver while other 4 RF OUT for connecting coaxial cable network.

The Outdoor CMTS forward lead the data signal and tv signal mixture from the machine room to optical node, narrowed the upstream funnel and reduced the noise interference accordingly. It can rapidly cover and connect all users without reconstructing original optical network structure.

Features

• ØCompatible with DOCSIS3.0, C-DOCSIS standard, work with all cable modem based on DOCSIS, support both EURO DOCSIS and DOCSIS.
• Ø16 DS channels bound, 64/256/1024QAM modulation mode optional. Data rate could reach up to 1.1Gbps@1024QAM.
• Ø4 US channels bound, could be configured to QPSK, 3-8 grade QAM mode, data rate could reach up to 160Mbps.
• ØFlexible on channels bound quantity set for convenient use of channel resource
• ØLayer 3 routing functions, support static route, VLAN,NAT and DHCP relay agent
• ØThere are 1000M RJ45 port and SFP on data port which could be connected to not only EPON’s ONU but also Ethernet via optical port
• ØThere are a variety of RF interfaces which could be adapted to all kinds of optical nodes connection.
• ØBuilt-in DHCP/TFTP server, support PPPoE.
• ØLoad balancing.
• ØSupport IPV6, multicast.
• ØQos based on service flow ensures bandwidth needs for various services.
• ØEnsure network transmit safety via various kinds of methods such as BPI+, CM identification, anti-DOS attack , user  isolation and IP source checking .
• ØReal time upstream spectral analysis function which helps to check US channel signal and noise status.
• ØSupport three management ways: CLI after log in via serial port or by telnet; Remote log in embed web NMS; External NMS server based on SNMP protocols which run windows OS.

 Specification

 Workshop

Company overview

 Jinghong Company always insist in specialization based on hi-tech & high quality. Jinghong’s CMTS has already been deployed successfully over 30 countries and places since 2007. We have won the confidence and trust of clients with high-quality products, excellent after-sales service and good reputation in the past years.

 We will persistently hold the cooperation concept of “create the mutual prosperous future” and provide reliable products and services to all users.

Jinghong’s advantages

1.The first CMTS manufacturer in China, have been in this line for more than 15 years

2.Global buyers all over 40 countries and places

3.Prompt after-sales support

Payment and delivery

Items will be shiped within 7 working days after T/T in advance  via ups dhl fedex or ems etc.
