HELI Forklift Clamp Attachments, Forklift Rotator

FOB Price

US$ 5,000 - 12,000 / Unit

1 Unit(Min. Order)

Port Shnaghai Qingdao Lianyugang
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	HELI	Model Number	CPCD30
Type	Manual Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	3000	Max. Lifting Height	4270
Min. Lifting Height	220	Fork Length	1070
Fork Width	125	Overall Dimensions	284514804270
Certification	3C.ISO.TUV.CNAS.BV	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

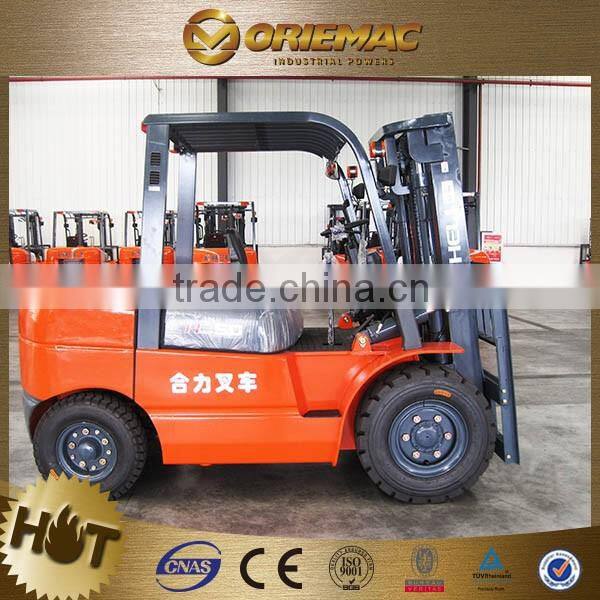

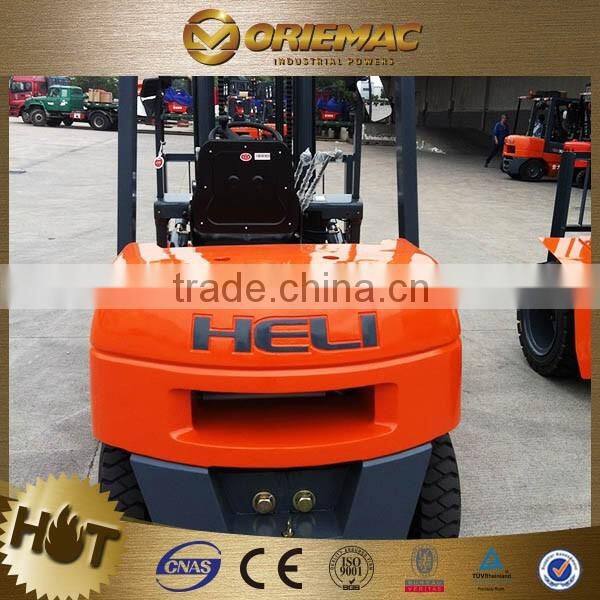

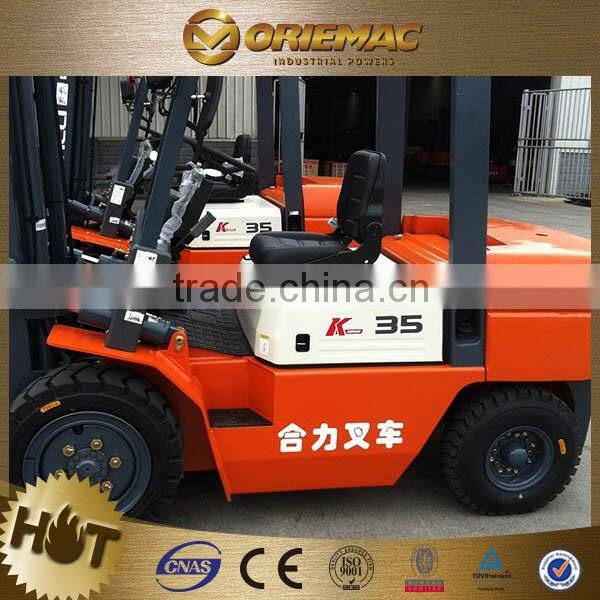

HELI forklift clamp attachments, forklift rotator

Diesel forklift truck with 3,000kg load capacity

Model Number: CPCD30

Equipped with China engine/Japanese engine,Hydraulic transmission with TCM-technology

Standard with 2-stage wide-view mast, lifting height is 3,000mm

Pneumatic tires, 1070mm forks,Safety seat,Free tool box and spare parts.

Back-up buzze, rearview mirror, full set of lights and so on.

H2007 series 2.0-3.5T Diesel Forklift specification
General	1	Model				CPCD30

	2	Power type				Diesel
	3	Rated capacity			kg	3000
	4	Load center			mm	500
	5	Operator type				Seated
	6	Tyre type		Front/Rear		Pneumatic
	7	Number of wheels(X=driven))		Front/Rear		2 X /2
Dimensions	8	Lifting height			mm	3000
	9	Free lift height			mm	145
	10	Fork size		LxWxT	mm	1070x125x25

	11	Mast tilt range		F/R		6/12
	12	Overall Length(Without fork)			mm	2698
	13	Overall width			mm	1225
	14	Mast lowered height			mm	2070
	15	Mast extended height			mm	4250
	16	Overhead guard height			mm	2090
	17	Turning radius(Outside)			mm	2400
	18	Fork overhang(Wheel center to fork face)			mm	498
	19	Min.right angle stacking aisle width (Add load length and clearance)			mm	2885
	20	Wheelbase			mm	1700
	21	Tread		Front	mm	1000
	22			Rear	mm	970
	23	Ground clearance	Lowest		mm	135
	24		Wheel base center		mm	140
Performance	25	Speed	Travel	Full load	km/h	18
	26			No load	km/h	19.5
	27		Lifting	Full load	mm/s	450
	28			No load	mm/s	500
	29		Lowering	Full load	mm/s	450
	30			No load	mm/s	500
	31	Max.Drawbar Pull		Full load/No load	kg	1100/1000	1350/1000
	32
	33	Max.Gradeability		Full load/No load	%	15/18	19/20
Weight	34	Self weight			kg	4280
	35	Wheel distribution	Full load	Front	kg	6455
	36			Rear	kg	825
	37		No load	Front	kg	1720
	38			Rear	kg	2560
Wheels	39	Tyres	Spec	Front		28*9-15-12PR
	40			Rear		6.50-10-10PR
B rake	41	Brake type	Driving brake			Hydraulic
	42		Parking brake			Mechanical hand brake
	43	Battery	Voltage/Capacity		V/AH	12/100
	44	Transmission	Model type			Powershift (Manual)
	45		Stage	FWD/RVS		1/1 (2/2)
	46	Operating pressure			Mpa	17.5
	47	Fuel tank capacity			L	70


Power & Transmission	48	Engine	Model			ISUZUC240-PKJ30
						(EUIII)
	49		Rated output/r.p.m		Kw	34.6
					/rpm	2500
	50		Rated torque/r.p.m		N.m	139
					/rpm	1800
	51		No.of cylinder			4
	52		BorexStroke		mm	86x102
	53		Displacement		L	2.369
