SINOTRUK HOWO concrete mixer truck for hot sale

FOB Price

USD $10,000 - $120,000 / Unit

1 Unit(Min.Order)

Supply Ability 3000 Unit / Units per Month
Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	sinotruck howo	Model Number	ZZ1257M3247W
Weight	12800KG	Dimension(LWH)	8204x2496x3850mm
Power(W)	290/371hp	Certification	ISO,CE
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

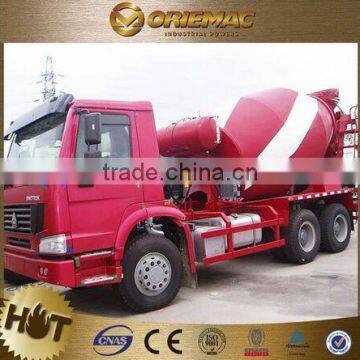

SINOTRUK HOWO ZZ1257M3247W concrete mixer truck for sale

Model	ZZ1257M3247W ZZ5257GJBN3247W ZZ5257GJBS3247W		ZZ5257GJBM3641W ZZ5257GJBN3641W	ZZ5257GJBM3841W ZZ5257GJBN3841W
Product code	52576028 52576038 52576048		52576029 52576099	525760210 525760910
Cubage(m3)	8		9	10
Cab	HW76		HW76	HW76
Engine(Hp)	290 336 371		290 336/371	290 336/371
Power(Kw)	213 247 273		213 247/273	213 247/273
Transmission	HW15710/HW19710		HW15710/HW19710	HW15710/HW19710
Front Axle	HF9		HF9	HF9
Steering	ZF8098		ZF8098	ZF8098
Rear Axles	HC16		HC16	HC16
Wheels & Tyres	8.5/12.00R20		8.5/12.00R20	8.5/12.00R20
Dimensions(mm)	8204x2496x3850		8715x2496x3850	9040x2496x3850
Kerb weight (Kg)	12800		13100	13220
Wheel base(mm)	3225+1350		3625+1350	3825+1350
Engine	Model	WD615.87	WD615.69	WD615.47
	Horsepower	290	336	371
	Maximum output Kw/r/min	213/2200	247/2200	273/2200
	Maximum torque N.m/r/min	1160/1100-1600	1350/1300-1600	1460/1300-1600
	Type	6-cylinder in line, 4-stroke, water-cooled turbo-charged & inter-cooled, direct injection
	Bore x Stroke	126x130mm
	Valve	2
	Displacement	9.726L
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
	Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery)
Cab	SINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments safety belts, exterior sun visor,stereo radio/cassette recorder,left driving air conditioner.Option: right driving; color
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW15710 or HW19710 transmission ,10 forward and 2 reverse Ratio:14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91(R1) 3.18(R2)
Front Axle	SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes Option: disc brake
Steering	German ZF8098 Steering Gear Box ,hydraulic steering with power assistance Ratio:22.2-26.2
Rear Axles	HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System	Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake
Wheels & Tyres	Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tire Option:12.00R20 radial tyre
Electrics	Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light Option:2x180Ah Batteries
Oil Tank	Square type-300L Aluminum alloy fuel tank
Other Optional	Vertical Muffler;ABS;Automatic Break Clearance Adjusting Arm;Traveling Data Recorder;Under Starting/Stopping Device;Metal Pipeline;Engine Protective Board
Delivery date	Within 45 days after receipt advance
Weight in kg	Gross vehicle weight 25000 Front axle loading capacity 9000 Rear axles loading capacity 2x16000
Performance	Maximum drving speed (km/h) 75 Fuel consumption (1/100 km) 38
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
