G3/4'' AC5000-06 SMC Series Air Units Three Pieces Combinatiom F.R.L With Gauge

Ensured Pressure Resistance

1.5MPa(15kgf/cm2)

 Highest Working Pressure

1.0MPa(10kgf/cm2)

   Ambient and Fluid Temperature

5-60C

    * Filter Precision *

25 µm

 Recommended Oil Use

Turbine NO.1 Oil  ISOVG32

  Container Material

Polycarbonate

 Protective Cover

AC1000-2000(Not Available)  AC2500-5000(Available)

  Pressure Regulating Range

AC1000:0.05-0.7MPa(0.5-7kgf/cm2)
AC2000~5000:0.05-0.85MPa(0.5-8.5kgf/cm2)

   Valve Type

With Overflow

  5,50 µm available in addition

Model

Specifications

Accessories

Assembly

Rated Flow (L/min)

Port Size (G)

Pressure Gauge Size(G)

Weight
(kg)

Bracket
(tow)

Pressure Gauge

Filter

Regulator

Mist separator

AC1000-M5

AF1000

AR1000

AL1000

90

M5

1/16

0.26

Y10L

G27-10-R1

AC2000-01

AF2000

AR2000

HAL2000

500

1/8

1/8

0.74

Y20L

G36-10-01

AC2000-02

1/4

AC2500-02

AF3000

AR2500

HAL3000

1500

1/4

1/8

1.04

Y30L

AC2500-03

3/8

AC3000-02

AF3000

AR3000

HAL3000

2000

1/4

1/8

1.18

Y30L

AC3000-03

3/8

AC4000-03

AF4000

AR4000

HAL4000

4000

3/8

1/4

2.14

Y40L

G46-10-02

AC4000-04

1/2

AC4000-06

AF4000-06

AR4000-06

HAL4000-06

4500

3/4

1/4

2.47

Y50L

AC5000-06

AF5000

AR5000

HAL5000

5000

3/4

1/4

3.82

Y60L

AC5000-10

1

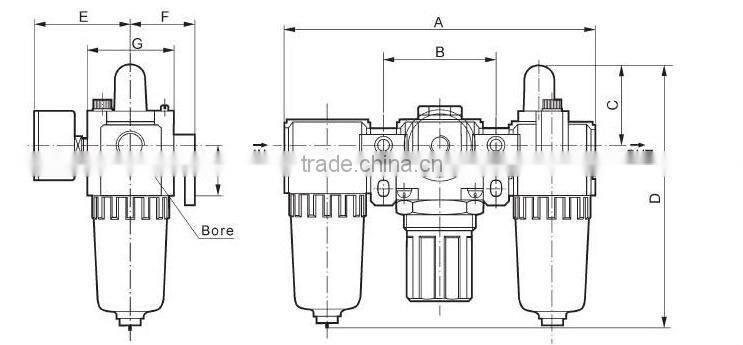

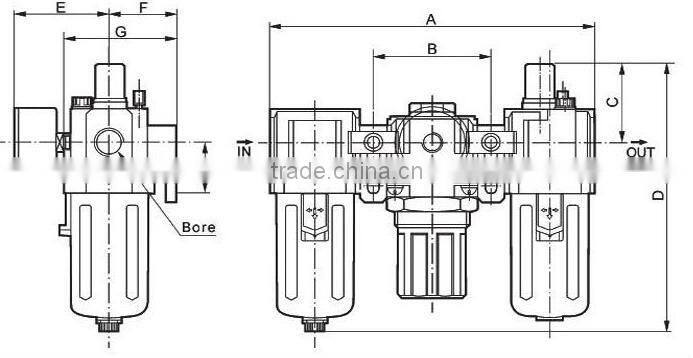

MODEL

BORE

A

B

C

D

E

F

G

H

AC1000

M5

91

33

25.5

84.5

28

25

25

20

AC2000

1/8''~1/4''

140

50

38

125

56.8

30

40

24

AC3000

1/4''~3/8''

181

64

38

156.5

60.8

41

53

35

AC4000-04

1/2''

238

84

41

191.5

66.5

50

70

40

AC4000-06

3/4''

253

89

41

193

69.5

50

70

40

AC5000

3/4''~1''

300

105

49

271.5

75.5

69.5

90

50

MODEL

BORE

A

B

C

D

E

F

G

H

AC1000

M5

91

33

25.5

84.5

28

25

25

20

AC2000

1/8''~1/4''

140

50

38

125

56.8

30

40

24

AC3000

1/4''~3/8''

181

64

38

156.5

60.8

41

53

35

AC4000-04

1/2''

238

84

41

191.5

66.5

50

70

40

AC4000-06

3/4''

253

89

41

193

69.5

50

70

40

AC5000

3/4''~1''

300

105

49

271.5

75.5

69.5

90

50
