Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | YU JIE | Model Number | SC200 | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Cable | Maximum Lifting Weight | 2 T | |
| Maximum Lifting Height | 250 m | Lift Speed | 0-33 m/min | |
| Certification | CE,ISO,BV,SGS | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

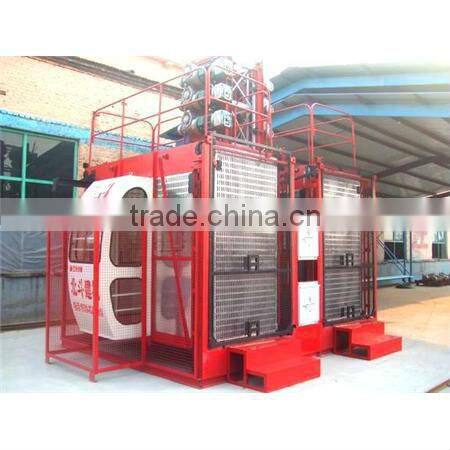

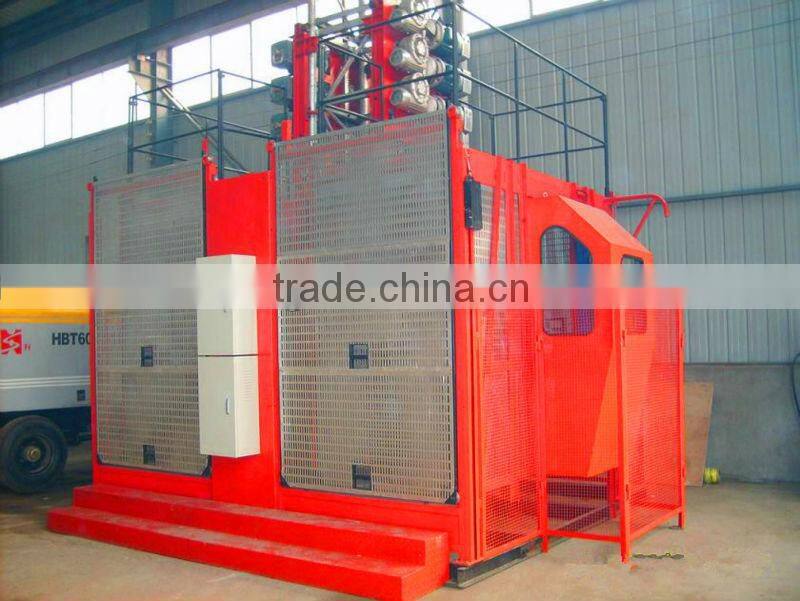

SC200 construction lift hoist price
1.Introduction of our Constrcution Hoist

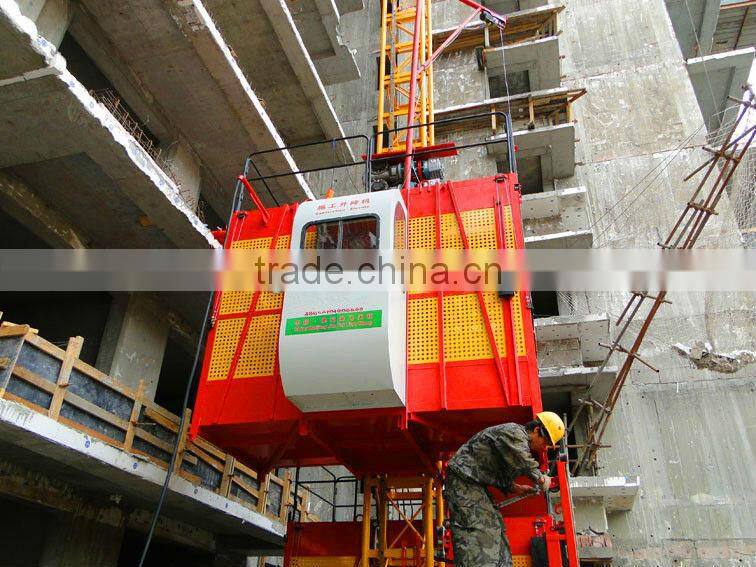

The SC series construction elevator that we produced is a new-type transport
equipment of high-rise buildings for vertical passengers&materials. For example, the
high residence, tower, bridge, chimney and so on. Recent years, the elevator is also
used for storehouse and quay as a vertical transport tools.
It is driven by rack and gear which is the most safety type in the modern world. Its
type include three-driven, dual-driven and single-driven for different models. There
are single-cage and double-cage type, with the loading capacity from 1000kg
to 2000kgs with common control system and PLC system.
It has a reasonable structure, beautiful appearance, simple operation, dismantling
easily and working safety
The SC series construction elevator that we produced is a new-type transport
equipment of high-rise buildings for vertical passengers&materials. For example, the
high residence, tower, bridge, chimney and so on. Recent years, the elevator is also
used for storehouse and quay as a vertical transport tools.
2.Main Parameters of SC200 Construction Hoist:
Model: SC200
| Rated load(kg) | 2000 |
| Rated erection load(kg): | 2000 |
| Jib attachment rated load(kg): | 200 |
| Cage size(m): | 3 .0×1.3 ×2.2 |
| Maximum lifting height(m): | 250 |
| Lifting speed(m/min): | 33 |
| Rated power(kw): | 11× 3 |
| Rated voltage (V): | 380 three-phrase |
| Rated frequency(Hz): | 50 |
| Rated current(A): | 23.2× 3 |
| Fuse protection current(A): | 96 |
| Protection level | IP55 |
| Triggering speed of safety device(m/s) | 1.1 |
| Braking distance(m) | 0.15--1.4 |
| Enclosure weight(kg) | 780 |
| Cage weight(kg) | 1522 |
| Mast section weight(kg) | 140 |
| Mast section size(mm) | 650×650×1508 |
3.Product Advantages
The cage is boarded up by all punched aluminum sheet
It is anti-aging , ante-rust, light-weight and beautiful in its service life.
Main structure of cage is made of high-quality steel after bending.
The bended steel is firm, good verticality, stability. Moreover it ensure stable of the whole structure.

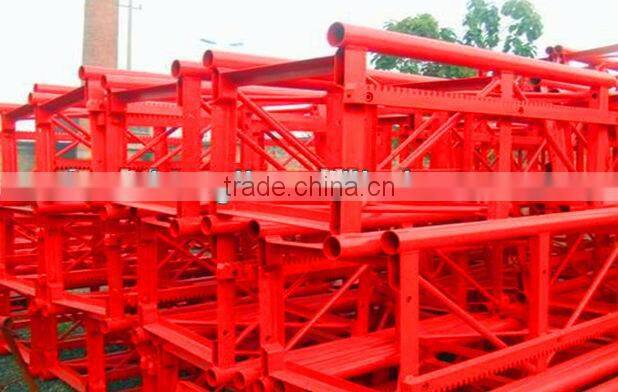

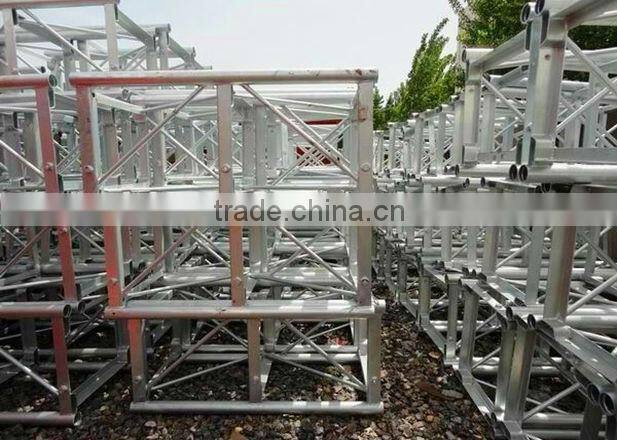

.The Mast section is made of seamless pipe
The high quality seamless steel pipe is good verticality, anti-pressure, anti-aging, thickness and so on.
Safety device
a. Equiping with the most optimal fall arrestor, which restricts the excessive downward movement of the cage and prevents cage falling accidents. Making the device absolutely reliable.
b. The Speed-limit device and stroke limit switch control the abnormal operation of cage.
c. Access door interlock device protects the safety of person’s in and out.
d. The top mast section with no rack which protect the cage from overrunning.

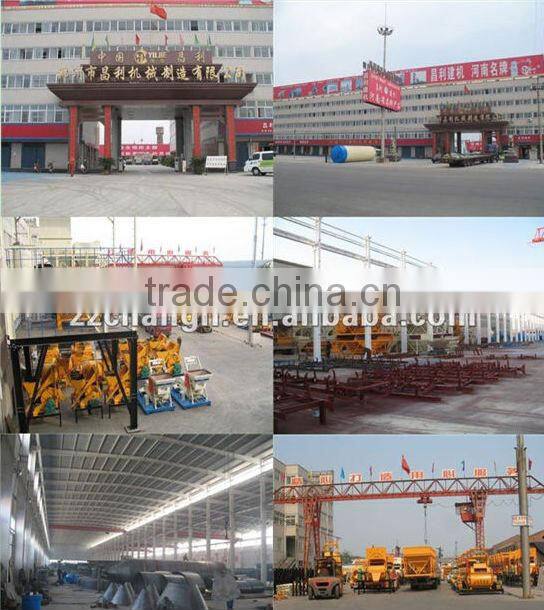

Photo of our factory
If you want more information ,welcome to contact us , we will give you best service !
