High Capacity Concrete Mixer Trucks,Howo 12m3 Concrete Mixer Truck
- Qingdao
- T/T Credit Card
You May Like
-
HOWO ,Dengfeng,Foton 6x4 Concrete Mixing Truck for 4,6,8,10,12,14 m3
-
Howo Dump Truck,4x2 Dongfeng 8 Tons Dump Truck, Tipper Truck
-
HOWO Chassis 12 Cubic Meters Concrete Mixer Truck
-
12M3 HOWO 6*4 Ready Mix Concrete Trucks With WD615.95E (9.726) Engine ,professional Manufacturer
-
Hot Sale!!!HOWO 6*6, 6*4 Transit Mixer Truck,cement Mixer Truck 12cbm to Mozambique
-
Cheap Concrete Mixer Truck,china Concrete Mixer Truck,china Concrete Mixer Truck for Sale
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Yujie | Model Number | CLCMT-12 | |
| Weight | 25t | Dimension(L*W*H) | 9350*2500*3990 | |
| Power(W) | 340HP | Certification | ISO,CE | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Capacity Concrete Mixer Trucks
Howo 12m3 Concrete Mixer Truck
Cement Silos Truck / Concrete Mixer Truck
Cement silo truck adopts the advanced circular arc automatic welding equipment, welding and makes it to mould at once time, which ensures the quality of mixing drum and the nice appearance. It also effectively prevents the oil and water leakage of the machine.
As a manufacturer of concrete mixer truck, we have 3m3 to 14m3 concrete mixer truck. The chasis is decided by the customer.
Technicial Papameters Of 8m3 HOWO Concrete Mixer Truck
Chassis | Brand | HOWO | |
Chassis model | ZZ1257N3847C | ||
Drive model | 6*4 | ||
Tire | 11.00-20 | ||
Brake | Air brake | ||
Engine | Model | WD615.95E | |
Horse Power | 340 | ||
Displacement(ml)/Power(kw) | 9726/247 | ||
Emission | Euro Ⅲ | ||
Main Parameter | Overall dimension(MM) | L*W*H | 9350*2500*3990 |
wheelbase | 3625+1350 | ||
Axles No. | 3 | ||
weight | GVW | 25000 | |
Payload weight | 12000 | ||
Curb weight | 12870 | ||
Leaf spring No. | 9/12 | ||
Approaching/Departure Angle(°) | 16/10 | ||
Front/Rear trace(mm) | 1500/2875 | ||
Front/Rear suspension(mm) | 1830/1830 | ||
Max speed(km/h) | 85 | ||
Gear box | 9 speed | ||
Front/Rear Axle Load | 7/16T | ||
Technical Parameters of Mixing Drum | Drum Geometric Volume(M³) | 15 | |
Mixing Volume(M³) | 12 | ||
Filling Rate(%) | 58% | ||
Rate of Feeding(M³/min) | ≥3 | ||
Rate of Delivery(M³/min) | ≥2.0 | ||
The Remaining Rate(Ml³/min) | ≤1.0 | ||
Drum Service Speed(r/min) | 0~12 | ||
Drum Dip(°) | 13~15 | ||
Hydraulic Drive Parameters | Oil Pump | Import from Italy | |
Hydraulic Motors | |||
Decelerator | |||

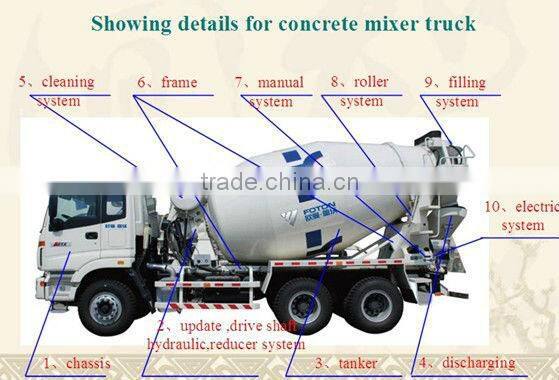

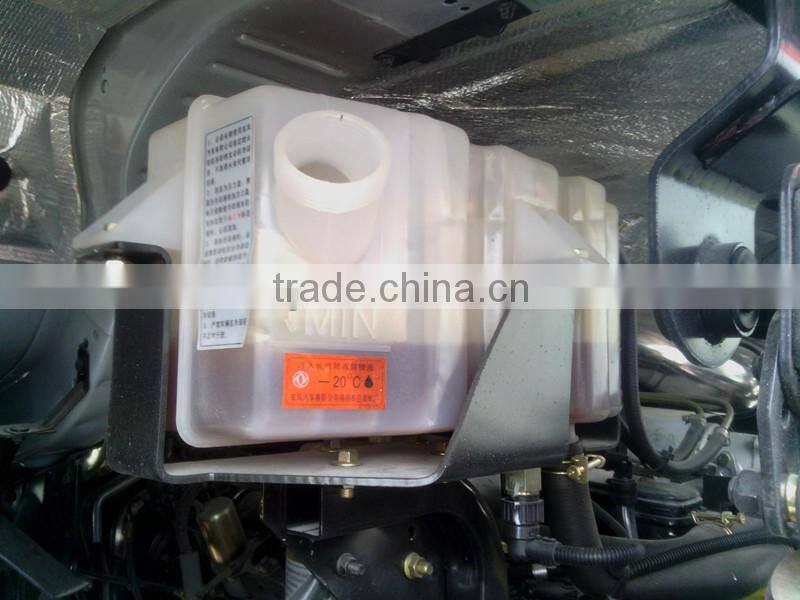

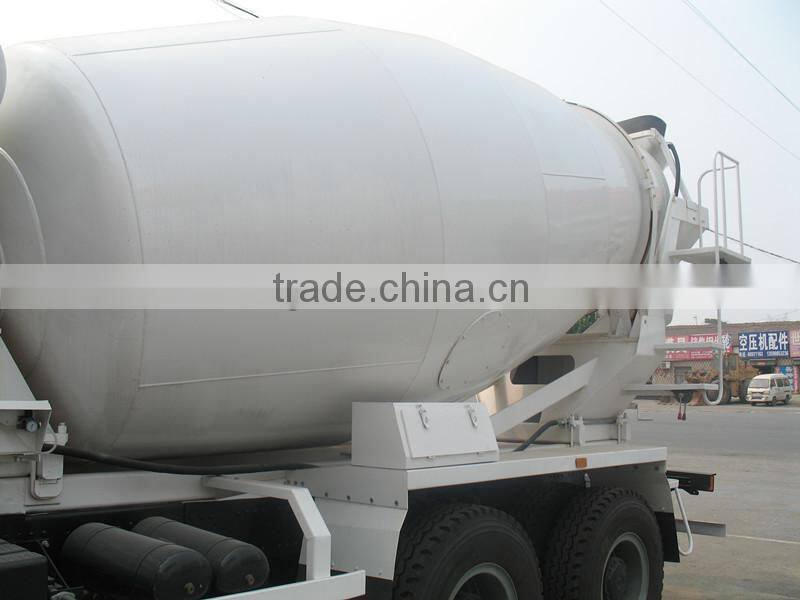

Showing Details Of Concrete Mixer Truck :

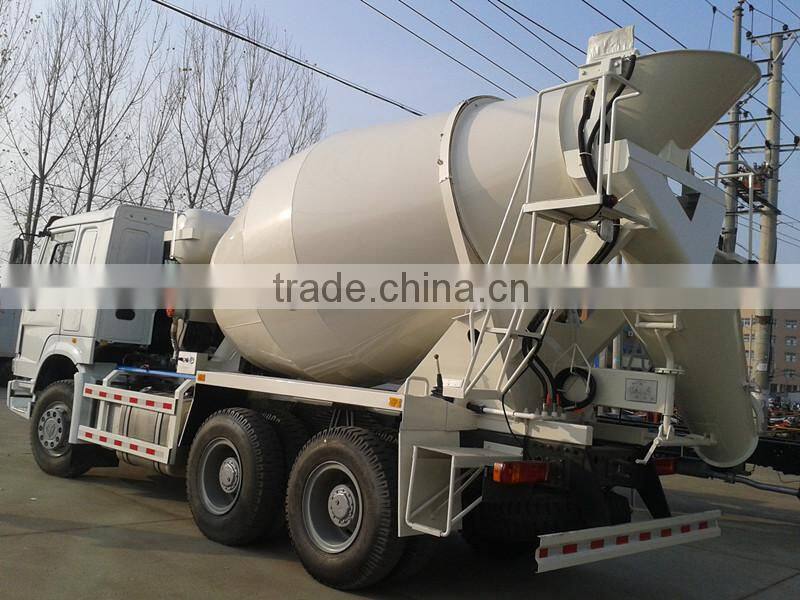

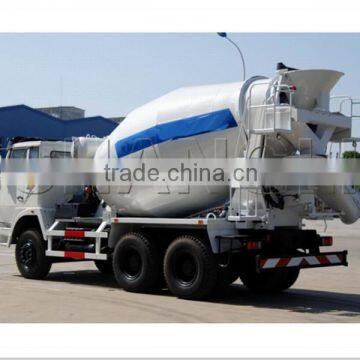

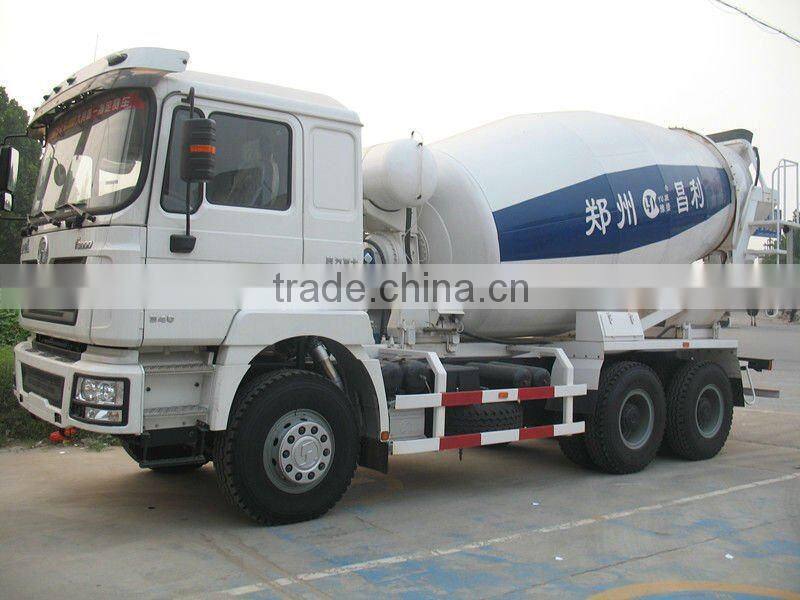

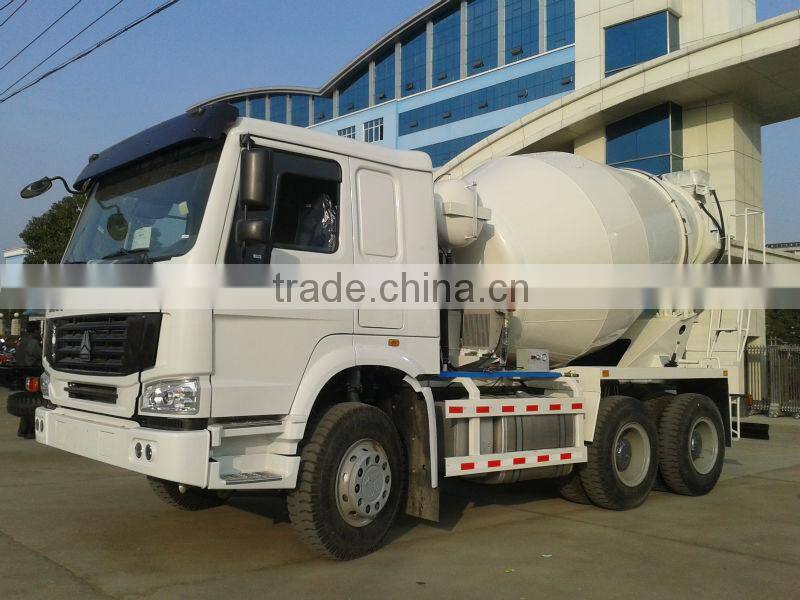

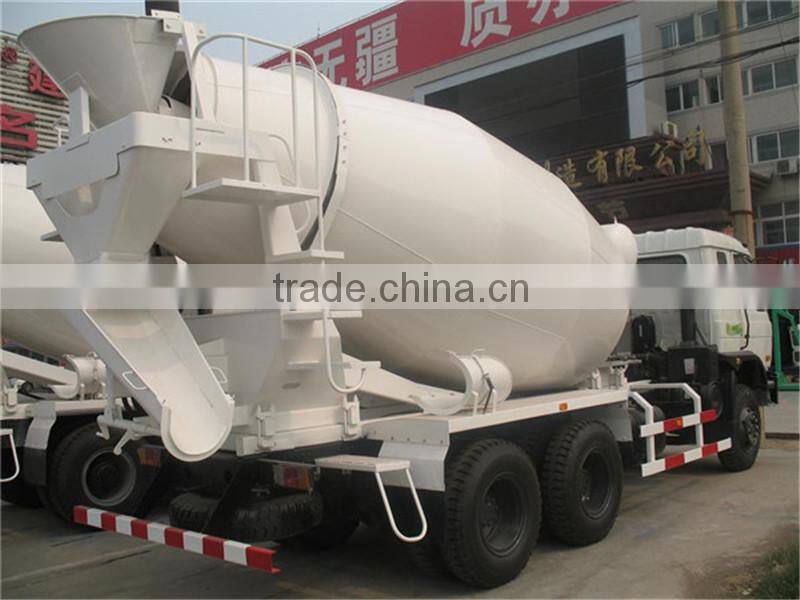

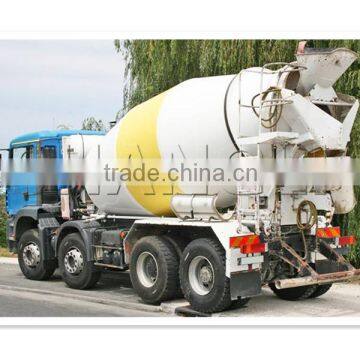

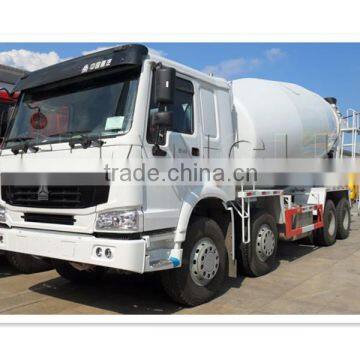

More Pictures Of 6m3 /8m3 /9m3 /10m3 /12m3 Concrete Mixer Truck :

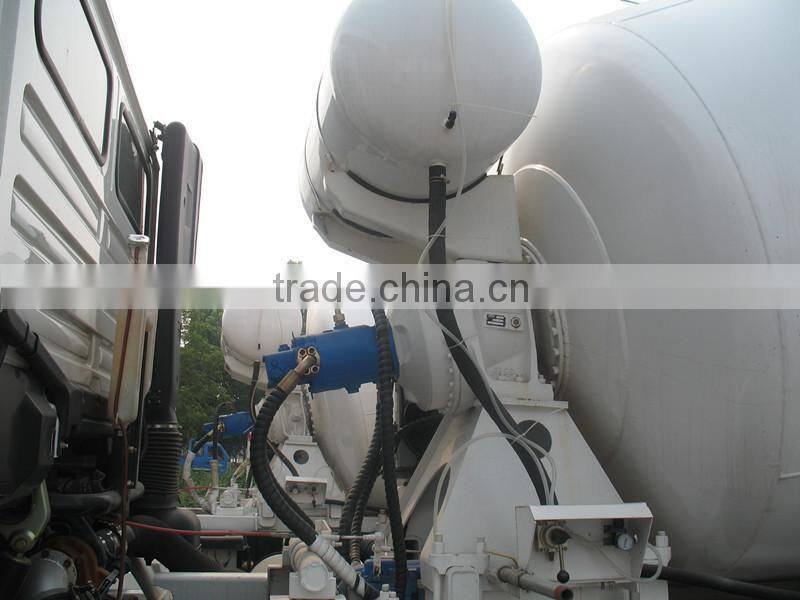

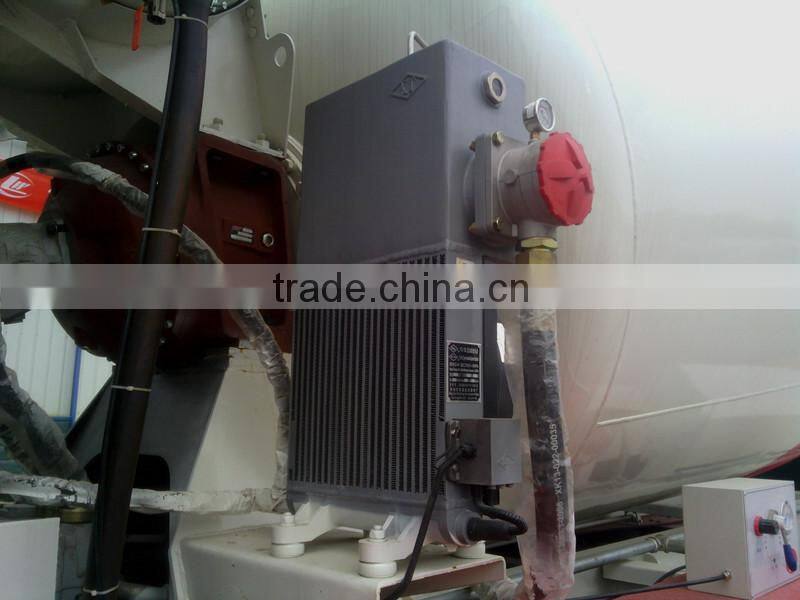

The detailed pictures
1. Guarantee time is one year; During this time, if there are parts that are damaged,
we will replace it with new one;
2. Spare parts supply;
3. Providing documents that needed for customers to clear the customs;
