Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | YU JIE | |
| Model Number | 50T | Power(W) | Varies according to capacity | |
| Dimension(L*W*H) | Varies according to capacity | Weight | Varies according to capacity | |
| Certification | ISO,CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CE ISO Certificated Steel Cement Silos,Cement Silo For Sale
1. Capacity we are available to supply: 30T, 50T, 60T, 100T, 100T, 150T, 200T, 250T, 300T, 400T, 500T, 600T, 700T, 800T, 900T, 1000T, 2000T etc.
2. Type: Detachable / bolted type and Non-detachable / welded type
3. Suitable for storage of bulk power material, such as cement, flyash, grain flour, wheat flour, mineral powder, etc
4. Indispensable components of concrete batching/mixing plant.
5. Coupled with dust collector, level indicator, pressure balance valve, butterfly valve, manhoe, inside and outside access ladder, handrails, maintainence platform, etc.
6. Bolted we use for detachable cement silo is 8.8 grade/tensile. 80 Ton Cement Silo,Design For Cement Silo,Cement Silo Tank
Main Parameters Of 50T /100Ton Ccement Silo
Serial number | Model and size | Diameter (mm) | Number of layers |
Leg distance (mm) | Theoretical capacity (M3) |
1 | PG50T | 3100 | 3 | 2020 | 40.67 |
2 | PG60T | 3100 | 4 | 2020 | 52.13 |
3 | PG100T | 3100 | 7 | 2020 | 86.52 |
4 | PG150T | 3300/3800 | 6/8 | 21 100t steel cement silo 80/2570 | 111.74/114.96 |
5 | PG200T | 4500 | 6 | 3010 | 164.27 |
6 | PG300T | 5000 | 7 | 3290 | 234.85 |
7 | PG400T | 5700 | 8 | 2640 | 348.14 |
8 | PG500T | 6500 | 8 | 3015 | 458.36 |
9 | PG800T | 8000 | 8 | 3660 | 700 |
MODEL | 100 T | 200 T | 300 T | 400 T | 500 T |
STEEL | Q235 | Q235 | Q235 | Q235 | Q235 |
CEMENT SILO TYPE | Detachable/bolted | Detachable/bolted | Detachable/bolted | Detachable/bolted | Detachable/bolted |
THICKNESS MM | 8-6-5-5-4-4-3-3-3-3mm | 8-8-5-5-4-4-4mm | 12-10-8-6-6-5-5-4-4mm | 12-10-8-6-5-4-4mm | 12-10-8-6-6-5-5-4-4mm |
DISCHARGE MOUTH HEIGHT MM | 7410mm | 7410mm | 7410mm | 7410mm | 7405mm |
DIAMETER MM | 3000mm | 4512mm | 4820mm | 6500mm | 6800mm |
TANK HEIGHT MM | 13144mm | 12949mm | 11570mm | 13654mm | 16022mm |
TOTAL HEIGHT MM | 20799mm | 21619mm | 23328mm | 21064mm | 24377mm |
CONTAINERS NEED | 1*40HQ | 2*40HQ | 2*40HQ | 3*40HQ | 3*40HQ |
PRODUCTION PERIOD | 15 working days | 15 working days | 20 working days | 20 working days | 20 working days |
DELIVER TIME | 20 working days | 20 working days | 25 working days | 25 working days | 25 working days |
ACCESSORIES | Dust Collector, Handrails, Inside& Outside Ladders, Inlet Tube, Butterfly Valve, Support Legs, Arch Breaking, Level Indicator | ||||

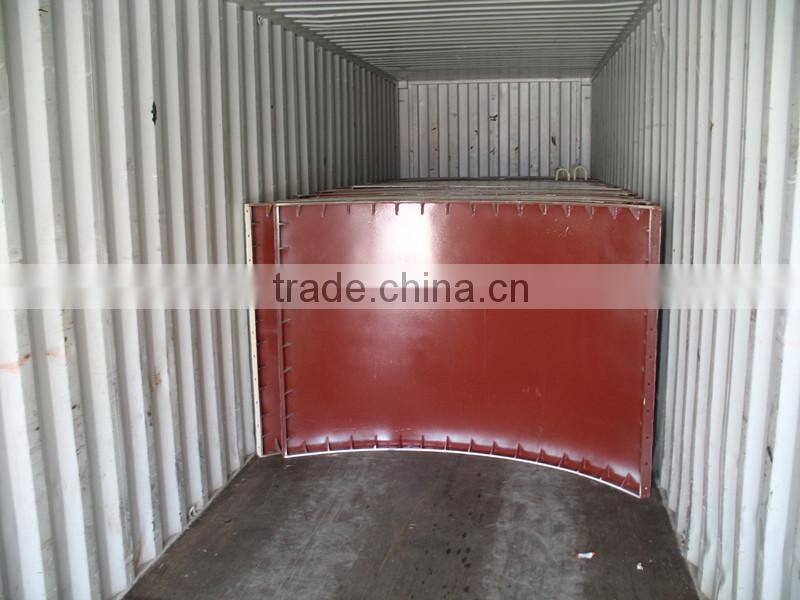

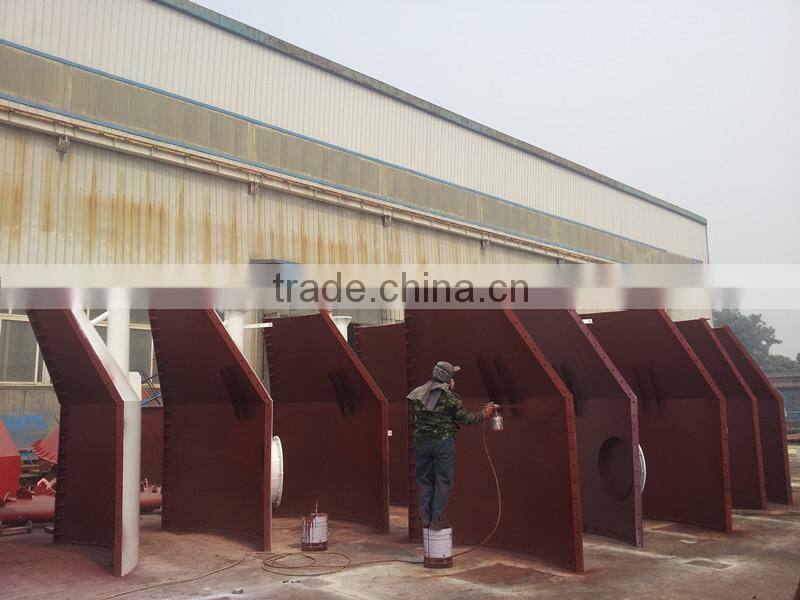

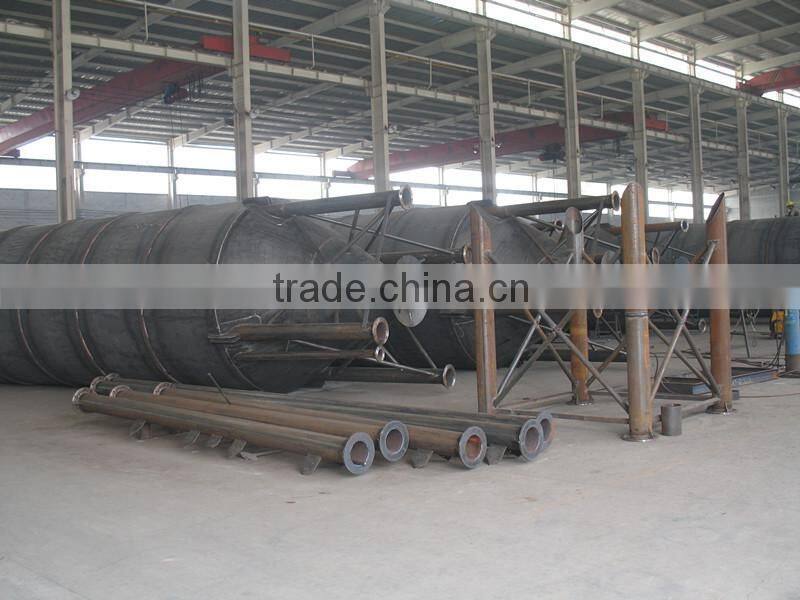

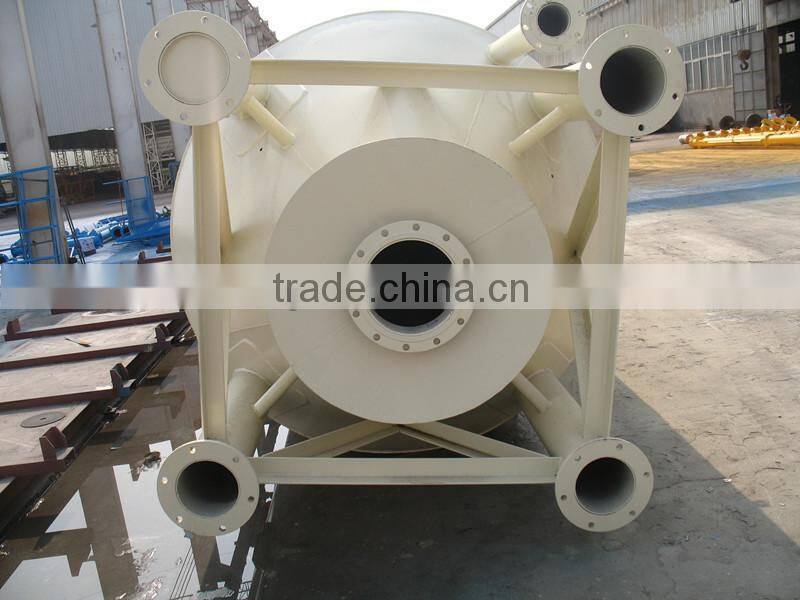

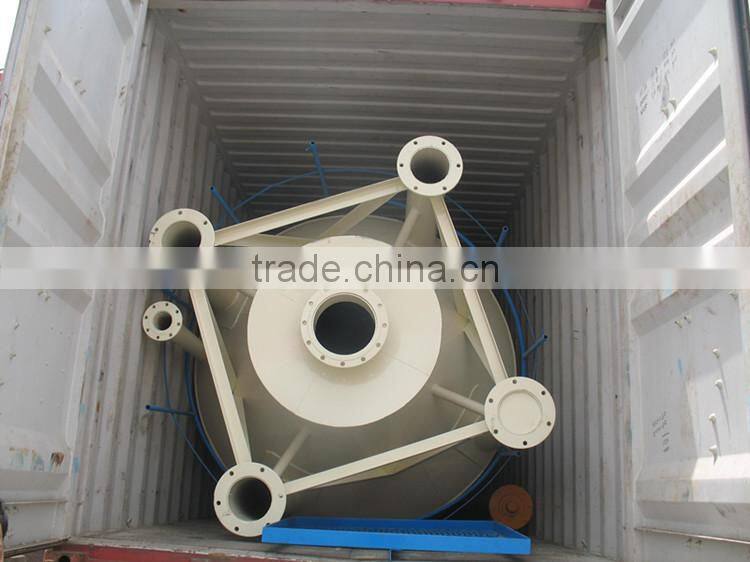

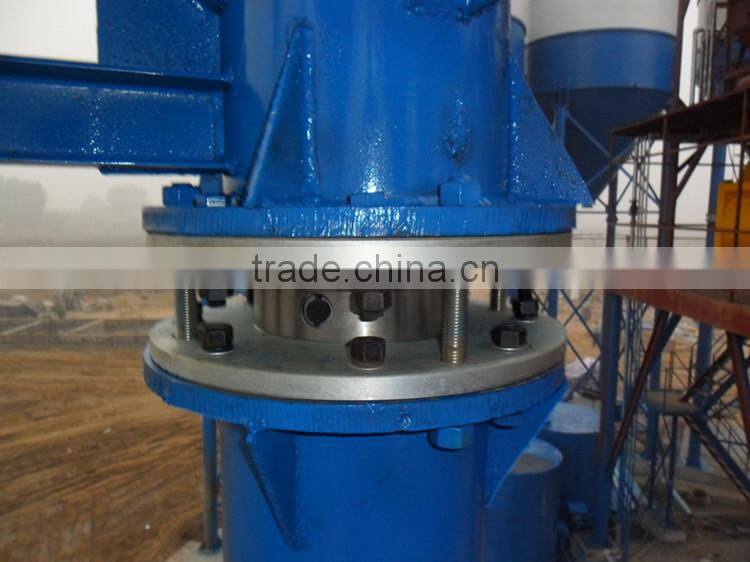

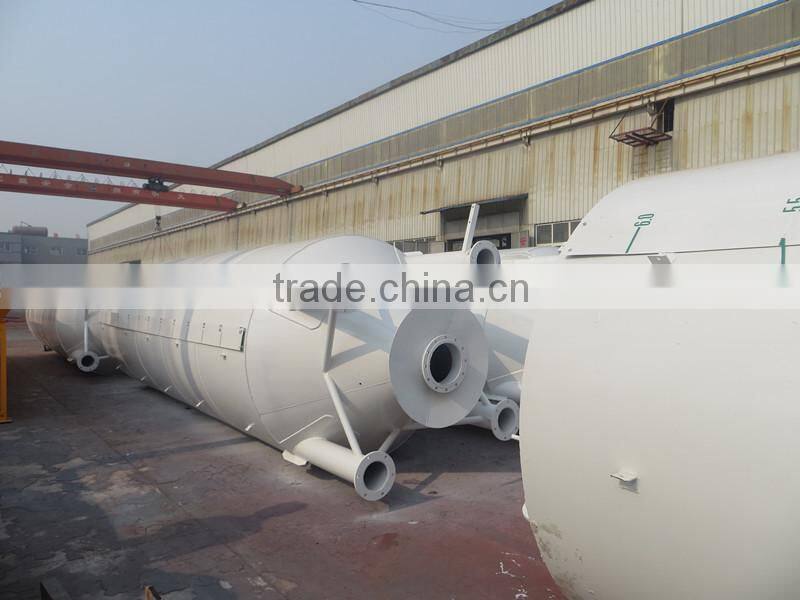

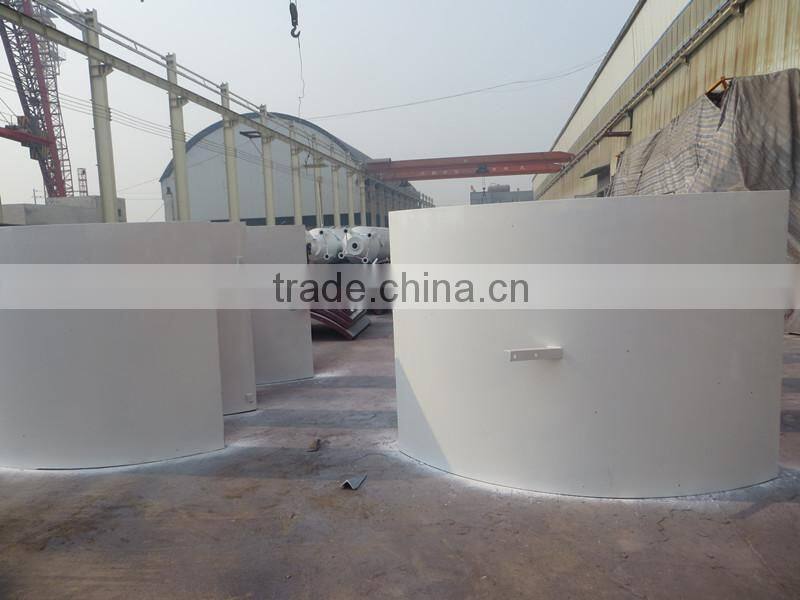

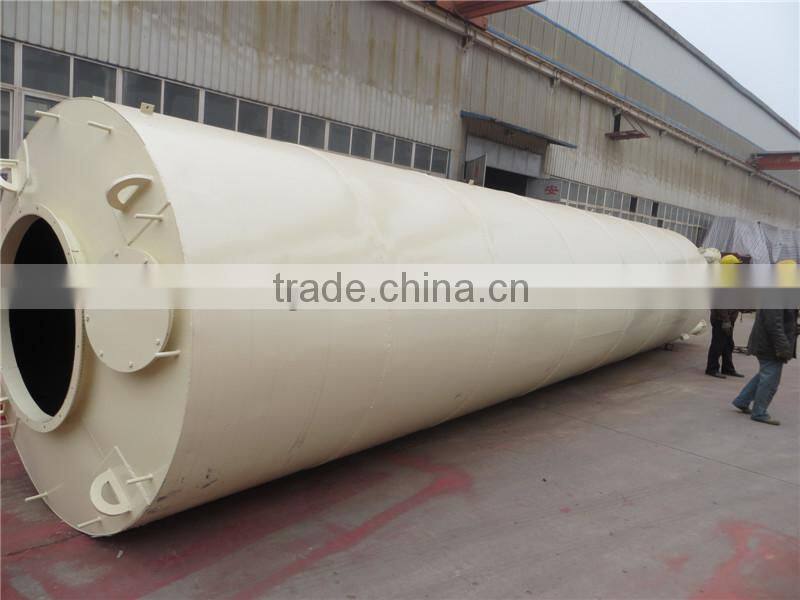

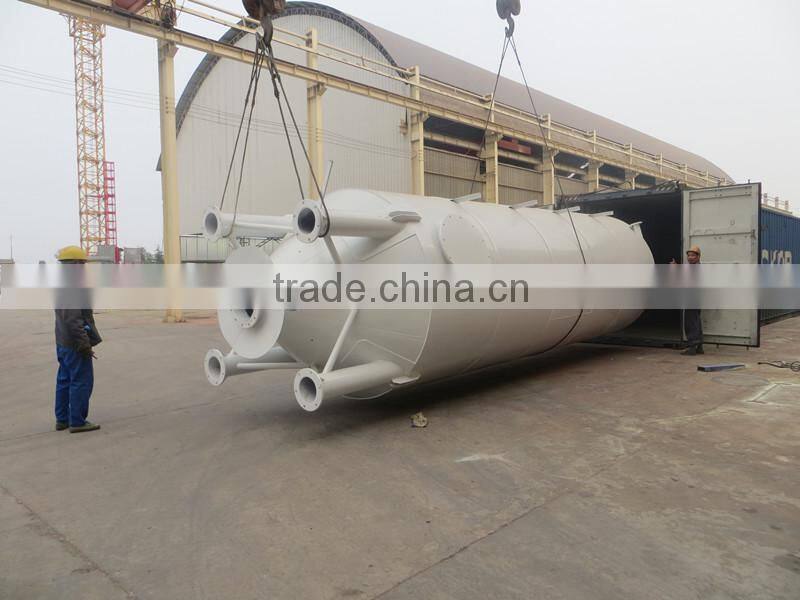

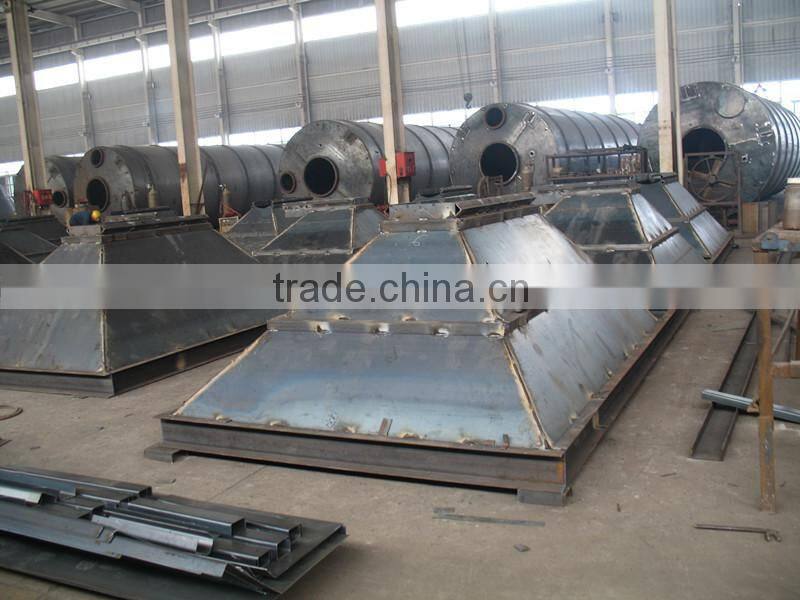

Some Pictures Of Detachable And Welde-type Cement Silo
Zhengzhou Changli Machinery Manufacturing Co., Ltd is established in 1982, specialized in cement storage silos for 31 years, as a supplier of World TOP500 Company - Lafarge Group.
