Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | YUJIE | |
| Model Number | LB200-2000 | Power(W) | 120KW | |
| Weight | 30T | Certification | CE ISO | |
| Warranty | ONE YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
asphalt mixing plant speco,asphalt mixing plant manufacturer thailand,asphalt mixing plant manufacturer pakistan
1.Ideal equipment for construction and maintenance of high-ways.
2.The filling rate is no more than 60% making bitumen, aggregates and powder well stirred.
3.The mixing scaleboard and blade use wear-resistant alloy cast iron and its mixing shaft adopts alloy cast steel.
4.The measuring device use Medianero weighing module which equipped with high precision and reliability resistance type strain sensors.

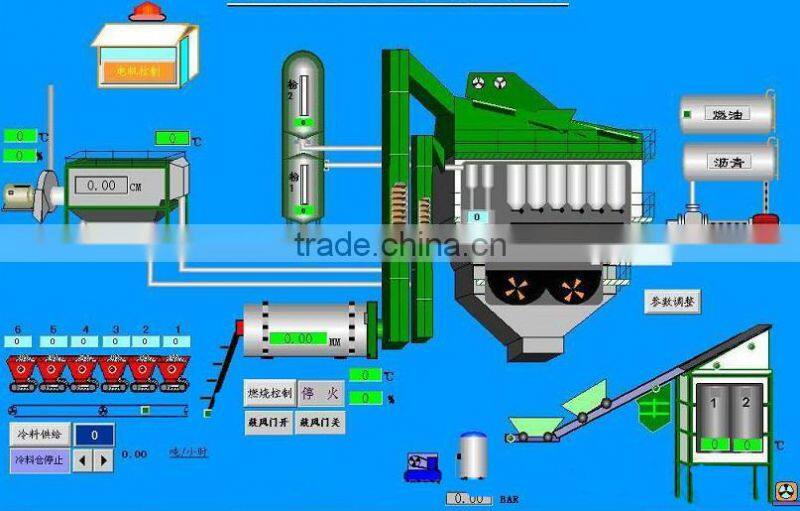

5.The control system using Siemens programming controller can carry on the automatic and manual control for the charging weighing,
mixing, discharging and so on.
6.The dust collecting system adopts the combination of gravity dust collection and water dust collection or the combination of gravity dust
collection and bag dust collection, dust emission is less than 50 mg/Nm
Type | LB500 | LB750 | LB1000 | LB1500 | LB2000 | LB2500 | LB3000 | LQ4000 |
Rated production | 30-40t/h | 50-60t/h | 60-80t/h | 90-120t/h | 120-160 t/h | 160-200 t/h | 200-240 t/h | 280-320 t/h |
Cold aggregate container | 4containers | 4containers | 4containers | 4containers | 5 containers | 5 containers | 5 containers | 5 containers |
Dry cylinder | 1.1m×4.2m | 1.3m×5m | 1.5m×6m | 1.8m×7m | 2.2m×8m | 2.35m×9m | 2.5m×10m | 2.8m×11m |
Bag dust-remover | CNM156 | CNM240 | CNM357 | CNM476 | CNM654 | CNM832 | CNM1012 | CNM1308 |
Emission standard | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 |
Vibrating screen | 4 layers | 4 layers | 4 layers | 4 layers | 5 layers | 5 layers | 5 layers | 5 layers |
Hot aggregate container | 12t | 12t | 26t | 26t | 5/40t | 40t | 80t | 100t |
Mixing kettle capacity | 500kg | 750kg | 1000kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
Mixing cycle | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
Mineral powder tank volume | 30t | 30t | 26+36t | 26+36t | 30+43t | 30+43t | 50+35t | 60+35t |
Asphalt tank volume | 30000L | 30000L | 50000L | 50000L | 2×50000L | 2×50000L | 3×50000L | 4×50000L |
Heat conduction oil stove | 200,000 kcol/h | 200,000 kcol/h | 300,000 kcol/h | 300,000 kcol/h | 500,000 kcol/h | 500,000 kcol/h | 800,000 kcol/h | 1,000,000 kcol/h |
End-product container volume | 50t | 50t | 90t | 90t | 110t | 110t | 200t | 200t |
The Models of Asphalt Mixing Plant: LB500-40t/h; LB750- 60t/h; LB1000- 80t/h; LB1500-120t/h; LB2000-160t/h; LB2500- 200t/h; LB3000-240t/h; LB4000-320t/h According to the requirements of your freedom of choice
