CE Approved Disposable Paper Plate Machine List

Company Brief Introduction:

Paper plate machine list

Paper plate machine list technical parameters:

paper plate machine list  make any shape of paper plates.

1:.Air source : Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air comprssor);

2:.If your plate is very large, and the paper is up 600gsm, we design a special machine for you.

Pressurizing Air Cylinder Technical Specification :

1. MPT-63-150-5T-10;

2. Air flow vlume :0.8 cubic/min;

3. Air pressure:0.6-0.8Mpa;

4.Air cylinder stroke:150mm;

Paper plate machine list main features:

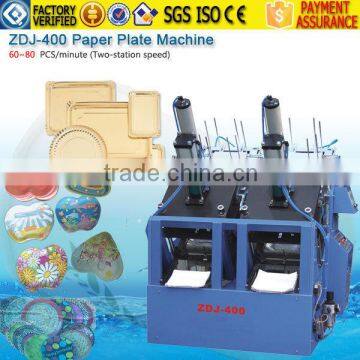

Model ZDJ-400 paper plate machine list developed and researched in the market requirement.

It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster

working speed, higher safety-performance, safer operation and easier maintenance than the conventional

one.

Model ZDJ-400 paper plate machine list adopts high efficientpressurizing air cylinder,

so that the Max. pressure can reach to 5T,compared with the oil pressure one, it has the advantages of high

speed, environment protection and humanism design.

Standard ZDJ-400 paper plate machine list has two working stations, each station install

one set of mold and each station has separately PLC digital control and electric control. It is widely applied to

make paper plate (or aluminum foil laminated paper )in round (rectangle, square, circular,or irregular)shape.

Machine speed changes against the material (paper)thickness and the plate size.

Samples made by ZDJ-400 paper plate machine list

packing:FCL: paper plate machine list with wood tray and plastic film.

                    LCL: paper plate machine list with wood box and plastic film.

                    We will Spraying oil in paper plate machine list for keeping rust away

CE certificate & Exhibition

If you are interested in our ZDJ-400 paper plate machine list , welcome to contact me.
