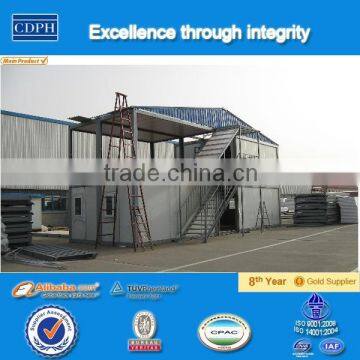

Living and comfortable prefabricated container house for dormitory

No.

Sort

Name

Specification

1

Specification

length

6055mm

2

Width

2435mm

3

Wall height

2790mm

4

weight

2000KGS

6

Standard accessory

Wall

75mm EPS sandwich panel( Glasswool panel ), 0.5mm color steel sheet and 15kg/m3 polystyrene foam density inside. Joining of panels with aluminum strip.

Permitted loading is 0.6KN/m2 and Coefficient of thermal conductivity is K=0.442W/m²k.

7

Roof

Girder use 16a channel, outside is 0.5mm color steel as the surface and inside is 5mm MDF laminated decorative panel as the ceiling. Between them is 60mm EPS insulation.

Permitted loading:1.6KN/m² and Coefficient of thermal conductivity: K=0.55W/ m²K

8

Base

Girder use 14a channel and The purlines of the floor are welded by two sides. External wainscot is 0.4mm flat galvanized steel sheet metal, and insulation is 30mm EPS. The supporting material is 11mm plywood and the decoration is 8mm laminated flooring. openings for a fork-lift truck in the base framework, dim 88*250mm in a distance of 1200mm

Permitted loading: 3.5KN/m² and Coefficient of thermal conductivity: K=1.1W/ m²K

9

Door

Steel door ,SIP door , single door with dimension of 800*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.

10

Window

PVC, white color, with dimensions of 700*1000mm, glazed with glass in a thickness of 5mm, aluminium decorative part, casement, supplied with fly screen.

11

Post

Galvanized , material: Q235, 4mm thickness. PVC rainwater pipe in the framework fixed by 2pc reinforced corner fittings which plate thickness is  8mm.

12

Option

Decorative floor

Water -ProofRubber plastic floor or laminated flooring in living area and aluminium panel in bathroom and kitchen

13

Drainage system

Provided plan, design and construction

14

Electric system

Provided plan, design and construction

15

Technical parameter

Resistant temperature

-20°C to 50°C

16

Fire proof

B2 grade (Can Reach B1)

17

The resistant earthquake grade

7 fission activate.
