Best Selling DGT-A Cake Board Foil Paper Machine

Welcome to  Wenzhou  Qichen  Industry & Trade Co.,Ltd.

                                    Tel: 86-15706776450      Skype:wzqc006

 Add: Room 101, Block B,Tongqian Lake, Qiaoli Village, Feiyun Street,Rui’an City,Zhejiang

First Quality, Best Service. We provide not only the products, but also the SOLUTION.

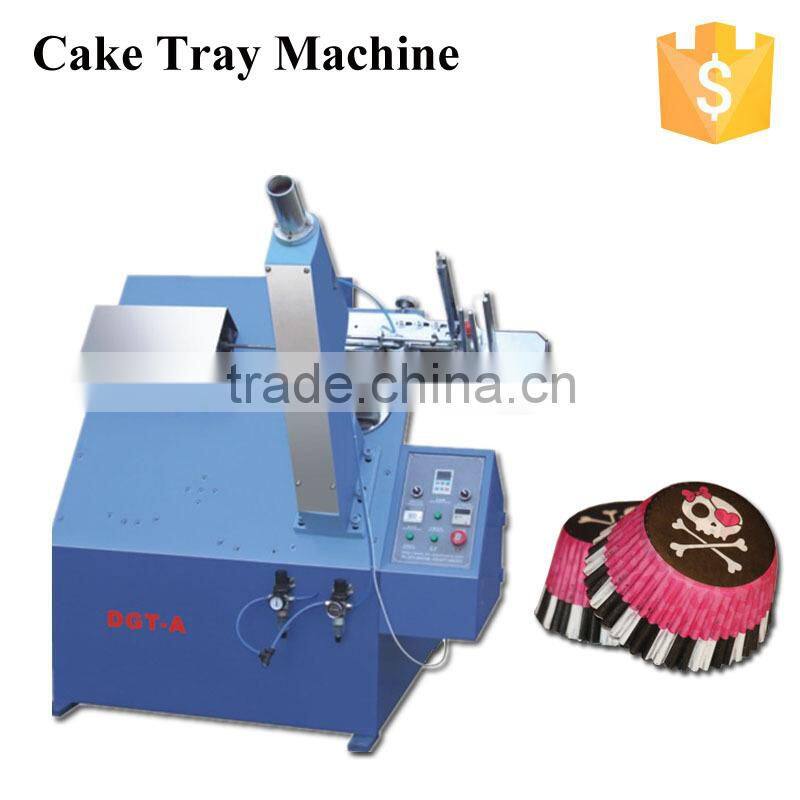

Description: cake board foil paper machine

Full automatic machine, only need you feed thousands pre-cut paper to the entrance.

Machine auto separate paper (tens pieces per time), pneumatic-controlled mechanical-hand clip paper, transfers to the mold, press the papers to the mold and form the shape

(with heater around the molds), press down to the collection.

Technical Specification: cake board foil paper machine

# Raw Paper Size : Φ50-Φ120 mm (open paper) (mold exchangeable);

# Raw Material : Anti-oil paper(Greaseproof paper), aluminium foil paper or other;

# Suitable paper weight : 15gsm-80 gsm;

# Rated Productivity : 20~40 beat/minute, 15-35 pcs/beat

(how many pieces depends on the paper thickness);

# Total Power : 2.5 KW (motor1.5kw, heating 1kw);

# Power Source : 220V 50Hz or other required;

# Total Weight : 500 Kg;

# Package Size (L x W x H) : 1580 x 1480 x 1800 mm;

# Working Air Source : Air Pressure: 0.6Mpa, Air Out-put : 0.3 m3/minute

If the paper cake tray paper size up 120mm, or the paper weight up 80gsm, should use following machine.

Packaging&Shipping: cake board foil paper machine

Company information

Our Services: cake board foil paper machine
The good should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems, even small problems. It is hard for customers to solve all the problems.

Our company will provide you good after services. We can help you solve the problem through video, email, phone. 24 hours hot line.

If needed, we can also let our engineer go to your country to solve the problem. We hope all the customer will satisfied with our machine and services.
