Product Details

Place of Origin	Beijing, China	Brand Name	CDPH
Model Number	ZA	Material	Steel
Use	Carport, Hotel, House, Other, Office, Shop, Toilet, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Warehouse, kitchen, dining hall, health center, school

Product Description

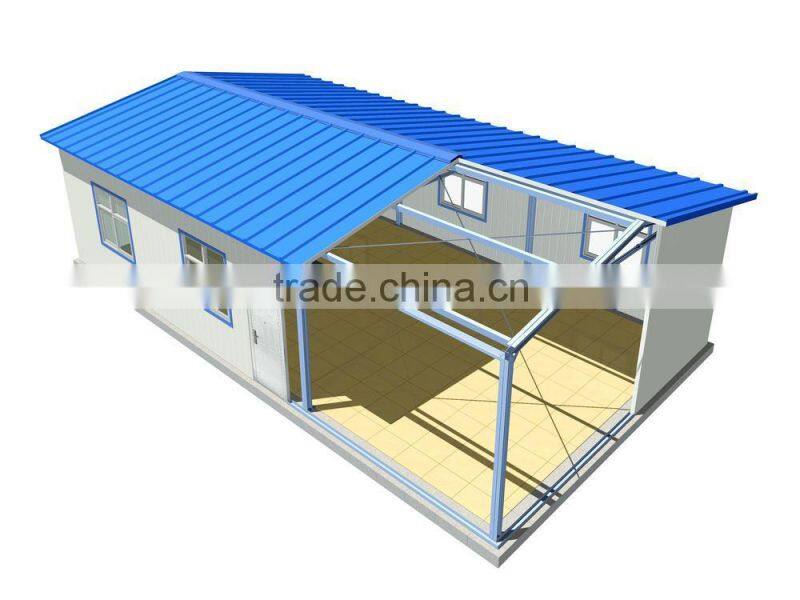

Prefabricated homes (ZA type) is flexible modular house. The size and layout can be designed as customers’requirements and local climate. When delivery, it is knock-down to save space. Based on bolts connection without welding work, the prefabricated houses could be assembled and disassembled easily and six common workers can finish 50m2 in 8 hours according to instruction and CD.

The detailed information as follows:

No.	Sort	Name	Specification
1	Specification	length	No limited
2		Width	Less than 12m
3		Wall height	3000mm
4		Clear height	2600mm
5		Roof slope	1:5
6	Standard accessory	Wall board	75mm or 100mm thickness sandwich panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k.
7		Roof board	75mm thickness sandwich panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k.
8		Outside door	Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam.
		Inside door	SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
9		Window(W-1)	PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.
		Window(W-2)	PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen.
10		Channel	Galvanized Steel Plain Sheet press moulding Material: Painted steel
11		Post	Square steel tube, Material: Galvanized steel
12		Purline	C style steel Material: Galvanized steel
13		Roof truss	Gabled truss, Material: Galvanized steel Q235
		Decoration and connection	Color steel sheet, 0.35mm thick
		Elevated ceiling	Ceiling of mineral wool acoustic panel in room and aluminium panel in bathroom and kitchen
20	Option	Decorative floor	PVC, laminated or ceramic tile
21		Drainage system	Provided plan, design and construction
22		Electric system	Provided plan, design and construction
25	Technical parameter	Bearing load	50kg/m², can be adjusted according to climate
27		Wind pressure:	0.5KN/M2, can be adjusted according to climate
28		Fire proof	B2 grade
29		Resistant temperature	-25 to 50
30		The resistant earthquake grade	7 fission activate.
