Home > Products > Prefabricated House > ISO Knock-down House for Camp Office and Dormitory
ISO Knock-down House for Camp Office and Dormitory
US$ 55 - 80
/ Square Meter
150 Square Meters(Min. Order)
- XINGANG(TIANJIN)
- T/T
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | CDPH | |
| Model Number | A TYPE | Material | Sandwich Panel | |
| Use | Carport, House, Other, Office, Shop, Toilet, Carport, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet |
Product Description

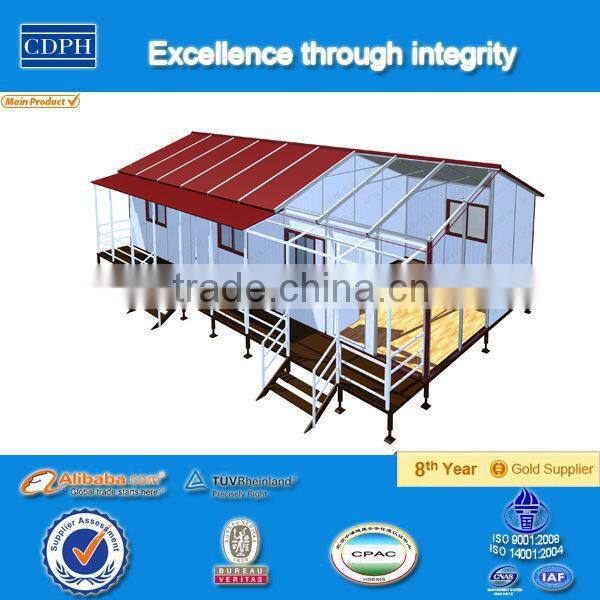

knock-down House (9910-A type) is a standard house model. The width is 5.048m as fixed size but the inside layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 120m2 in 8 hours according to instruction and CD.
The details as follows:
| House Type: 9910-A4 | ||
| Sort | Item | Specification |
| Dimension | Length | (n-2)*1224+2*1100mm (n is the prefab group,n=4,5,6…) |
| Width | 5050mm | |
| Height(ridge/eave) | 3500mm/2450mm | |
| Inner Net Height | 2450mm | |

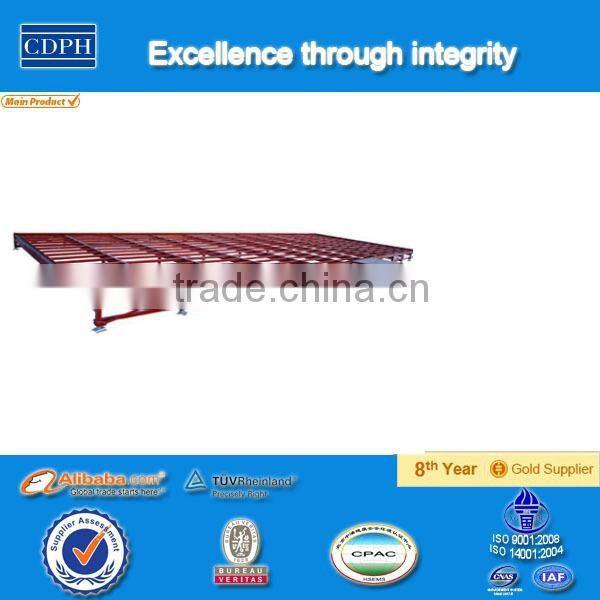

| Standard Accessory | Channel Ground | Z style steel 50*60*30mm, material:Q235 |
| Pillar | H style steel 56*40mm, material:Q235 | |
| Roof Beam | The trusses are made of 353 style steel and 20*20 sqaure steel tube,some robs fixed on the bottom,material:Q235 | |
| Wall Panel | 50mm thickness Color steel sandwich panel | |
| Roof Panel | 60mm thickness Color steel sandwich panel,red upper surface and blue nether surface | |
| Door | Color steel sandwich board door, size:800mm*2000mm | |
| Window | Color steel window, size:1200mm*1000mm, color:blue,red and white | |
| Optional Accessory | Reassemble Ceiling | Color steel single sheet |
| Reassemble ground basement | Two kinds: adjustable height style and fixed height style | |
| Reassemble Eave | The frame is made of welded square steel tube, the panel are color steel corrugated single sheet | |
| Door | Color coating steel frame door, color:blue and white | |
| Water Supply and Drainage | It can be designed and constructured by us | |
| Electricity | It can be designed and installed by us. | |
| Resistance | Live Load | 50kg/m2 |
| Wind Resistence | 22m/second | |
| Fire-proof | B1 grade (apyous material) | |
| Earthquake Resistence | 7 fission intensity | |
