Star product Roland printing machine with DX7 head FH740

Colorful custom wallpaper brings

a room to life.

Commercial indoor posters are as appealing at close

range as they are at a distance.

Command attention with brilliant

backlit displays

Short-term outdoor posters can be created

all on one device.

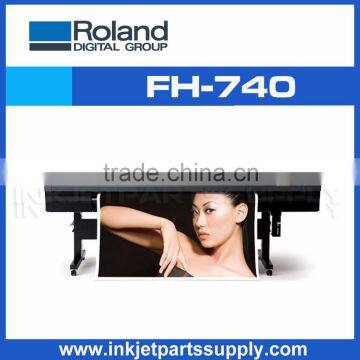

The FH-740 employs dual-head architecture featuring our latest gold-plated printhead. Based on an advanced eight-channel design with 180 nozzles per channel, this state-of-the-art printhead ensures flawless printing of the finest details, while its gold-plated casing reduces the static electricity that can lead to clogging. The FH-740 also includes Roland Intelligent Pass Control^® for reduced banding in between passes. The FH-740 combines 6-color CMYK, Light Cyan and Light Magenta inks with advanced variable droplet inkjet printing technology. Selecting from seven different droplet sizes, the FH-740 achieves smooth gradations and high-density output for photographic and vector images alike. With the FH-740, every detail of its performance has been fine tuned, down to the size of the droplets, to capture all the nuances within a design.

The FH-740 offers exceptional stability through the longest production runs, thanks to durable construction and advanced media handling features. Multi-point pinch rollers and a redesigned platen ensure accurate media feeding of rolls up to 40 kg, and a belt drive moves the print carriage with precision. The FH-740 includes a high-torque, durable scan motor -- technology commonly reserved for grand-format printing devices. With the FH-740, you can print 360 x 720 dpi images (4 pass mode) at 18.0 m²/hour. High-speed 100 Base-TX/10 Base-T networks are supported.

The FH-740's new media edge clamps are positioned to secure the media properly while allowing prints to be slit for removal without having to remove the clamps. The media flanges have been located close to the ground for easy loading and unloading of media. Once your media is loaded, you can simply choose the proper printer settings using the calibration test pattern. Calibration can be adjusted while printing as well, to save media and time. Register up to eight different media presets to share among operators. In addition, the FH-740 is fully compliant with ECO Label, Roland's guidelines for Environmentally-Conscious Product Design. This certification ensures that the FH-740 limits power consumption, reduces noise and electromagnetic emissions, and minimizes the use of hazardous chemical substances for a more sustainable production environment.
