mimaki printer for sale Mimaki CJV30-160

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port shanghai/guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Screen Printer
Place of Origin	Japan	Brand Name	Mimaki
Model Number	Mimaki cjv30-160	Usage	Other, banner, flex, vinyl, sticker printer
Automatic Grade	Automatic	Voltage	220v
Dimensions(LWH)	26307501050mm	Weight	160KG
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

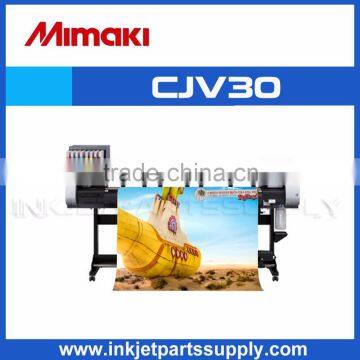

1. Mimaki cjv30-160 print and cut machine 1.6m
2.Mimaki CJV30-160 Printer Cutter
3.1.6 meter width
4.Eco solvent Printer
5.Use Epson DX5 print head

Mimaki CJV30 series printer cutters increase your productivity by integrating printing and cutting into one device. Unique features allow continuous unattended printing and cutting.

--Continuous Crop Mark Detection increases cutting accuracy.
--Automatic Media Clamp Function allows continuous printing and cutting.
--High density, fast drying white ink widens usage of applications
--UISS (Uninterrupted Ink Supply System) improves operating performance by allowing

continuous unattended printing.
--Up to 1440 dpi (variable dot technology)

Printing speeds:

186 sqft/hr (17.3 m2/hr) at 540 x 720 dpi, 4 pass

126 sqft/hr (11.7 m2/hr) at 540 x 1080 dpi, 6 pass

78.5 sqft/hr (7.3 m2/hr) at 720 x 1440 dpi, 8 pass

Cutting speeds:

Up to 11.8 in/sec (30 cm/sec) ,Simple Studio and Fine Cut software included for easy sticker making. For professional users, Raster Link Pro4 SG RIP is included as standard.

Mimaki CJV30-60	Mimaki CJV30-100	Mimaki CJV30-130	Mimaki CJV30-160

Print / Cut Width	610mm	1020mm	1361mm	1610mm
Inks	CMYKcmW	CMYKcmW	CMYKcmW	CMYKcmW
Ink types	ES3 & SS21	ES3 & SS21	ES3 & SS21	ES3 & SS21
Production Speed (based on 130 model)	540x720, 4pass, Bi: 17.3m² / hr 540x1080, 6pass, Bi: 11.7m² / hr 720x1440, 8pass, Bi: 7.3m² / hr
Warranty	1 Year, Gold	1 Year, Gold	2 Year, Gold	2 Year, Gold
RIP & Cutting software included

		CJV30-60	CJV30-100	CV30-130	CJV30-160
Maximum print / cut width		610 mm (24.0")	1,020 mm (40.1")	1,361 mm (53.5")	1,610 mm (63.3")
Print resolution		540 dpi, 720 dpi, 1440 dpi
Print mode (Scan x Feed)		540 x 720dpi, 540 x 900dpi, 540 x 1,080dpi
		720 x 540dpi, 720 x 720dpi, 720 x 1,080dpi, 720 x 1,440dpi
		1,440 x 1,440dpi
Ink	Kind	Exclusive solvent ink: SS21 ink, ES3 ink
	Capacity	4-color mode: 440 cc cartridge x 2/color, 880 cc/color
		6-color mode: 440 cc cartridge x 1/color, 440 cc/color
Media	Width	620 mm (24.4")	1,030 mm (40.5")	1,371 mm (53.9")	1,620 mm (63.7")
	Thickness	Less than 1.0 mm
	Roll weight	Less than 25 kg (55 lbs.)
	Roll diameter	Inside: 2 inch, 3 inch / Outside: Less than φ180 mm (7.1")
Maximum cutting speed		30 cm: 11.8"/s (42 cm: 1 6.5"/s at the angle of 45)
Cutting force		10-350 g
Applicable tools		Cutter, Water based ball-point pen, Oil based ball-point pen
Media cutting		Cutting in Y direction by cutter on the head
Media heater		Pre/print/post heater
Media take-up device		Roll take-up device (Standard), inside/outside selectable
Command		MRL-III , MGL-IIc2
Interface		USB 2.0
Applicable standard		VCCI class A, FCC class A, UL60950, CE Marking (EMC directive, low voltage directive), CB report
Power		AC100V~240V, Less than 1,380VA
Operation environments		20°C~35°C, 35~65%RH (No condensation)
Dimensions (W x D x H)		1,524 x 739 x 1,424mm (60" x 29.1" x 56.0")	1,934 x 739 x 1,424mm (76.1" x 29.1" x 56.0")	2,289 x 739 x 1,424mm (90.1" x 29.1" x 56.0")	2,538 x 739 x 1,424mm (99.9" x 29.1" x 56.0")
Weight		110kg (242 lbs.)	130kg (286 lbs.)	145kg (319 lbs.)	160kg (352 lbs.)
