K house for Asia constrcution site house

FOB Price

USD $65 - $75 / Square Meter

100 Square Meters(Min.Order)

Supply Ability 200000 Square Meter / Square Meters per Month
Port XINGANG

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	CDPH
Model Number	K -2	Material	Sandwich Panel
Use	Other, dormitory

Product Description

Description

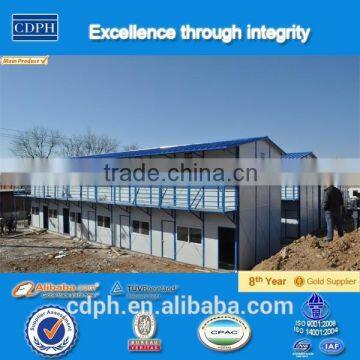

K Typesingle storey house is a cost-effective prefab house, mainly designed for construction site accommodation and office. Widely used in Asia countries, including China, India, Vietnam, and Thailand, Philippines, Indonesia and etc.

Features & Advantages:

1, Module: Width and length can be extended by times of 1820mm modular. Flexible design.

2, Fast Installation:Components are standard and fabricated in factory, less site works, quick and easy installation. Eight skilled workers can finish 100 m2 in 8 hours.

3, Reusable:Structures are connected by bolts & nuts, panels plug into channels, house can be knocked down for many times

4, Multi-storey: Can be one, two and three storeys.

5, Loading: One 40HQ container can load about 250m2without raised floor , or 200m2 with elevated floor.

6, Parameters:Wind load: 0.45KN/ m2, Anti-seismic: 7 , Service life: 5~10years.

Disassembly

All structures include raised steel flooring system are connected by bolts & nuts, panels flexible plug into channels, the house can be assemble and disassemble for 5-10 times.

When one project job is finished, house can be relocated to other site.

Specification

No.	Sort	Name	Specification
1	Specification	length	NM+160(N=4,5,6... M is modular, 1M=1820mm)
2		Width	NM+160(N=3,4,5... M is modular, 1M=1820mm)
3		Wall height	2-Storey 5720mm	3-Storey 8570mm
4		Clear height	Ground floor :2425mm First floor :2685mm	Ground floor :2425mm First floor : 2425mm Second floor: 2685mm
6	Standard accessory	Wall board	50mm EPS sandwich panel
7		Roof board	50mm EPS sandwich panel
8		Door	SIP with steel frame, single door with dimensions of 960*2028mm, furnished with a cylinder lock with 3keys. 50mm thick EPS insulation foam.
9		Window	PVC sliding window ,1735932mm/1735482mm two bay sliding, supplied with fly screen.
10		Base beam	C80 style steel. Painted
11		Column	Double C80 style steel, Painted	Double C80 style steel, ground floor reinforced. Painted
12		Floor beam	Parallel truss(C80 style steel). Painted
13		Floor purline	Gable truss(C80 style steel). Galvanized
14		Roof beam	Gable truss(C60 style steel). Painted
15		Roof purline	Gable truss(C60 style steel).Galvanized
16		Inclined brace	round steel, Galvanized
17		Stair	Steel stair, 1100mm wide.
18		Tread	Press steel board 2.5mm
19		Floor stab	15mm plywood
20	Option	False ceiling	Waterproof gypsum board or others
22		Decorative floor	PVC, laminated wood floor or ceramic tile
23		Drainage system	Provided plan, design and construction
24		Electric system	Provided plan, design and construction
25	Technical parameter	Roof Bearing load	50kg/m²
		Floor Bearing load	200kg/m²
26		Wind resistance:	10 degree
27		Fire proof	B2 grade
28		Resistant temperature	-20°Cto 40°C
29		The resistant earthquake grade	7 degree seismic intensity
