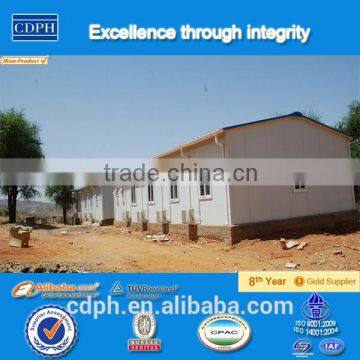

China steel frame house products made of light steel structure and sandwich panel

No.

Sort

Name

Specification

1

Specification

length

6000mmm

2

Width

2900mm

3

Wall height

2800mm

4

Clear height

2800mm

5

Roof slope

11°

6

Standard accessory

Wall board

75mm thickness EPS panel,0.5mm steel sheet,

13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.38w/.k.

7

Roof board

50mm thickness EPS corrugated panel,

0.4mm steel sheet,13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.58w/·k.

8

Door(D-1/2/3/4)

SIP single door with dimension of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.

9

Window(W-1)

PVC, white color, with dimension of 940*1000mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.

Window(W-2)

PVC, white color, with dimension of 940*500mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen.

10

Base beam

H style steel Q345, galvanized

11

Base purline

C style steel, Q235, galvanized

12

Base support

Square steel tube Q235, galvanized

13

Base lifting part

Square steel tube, Q235, galvanized

Base channel

Press forming steel plate. Q235, galvanized

Roof beam

C style steel,Q235, painted

Base panel

Plywood with 14mm thickness in room and bamboo panel with 14mm thickness in bath and kitchen

Decoration and connection

Color steel sheet, 0.35mm thick

20

Option

Decorative floor

PVC or laminated floor in room and aluminium panel in bath and kitchen

21

Drainage system

Provided plan, design and construction

22

Electric system

Provided plan, design and construction

25

Technical parameter

Bearing load

30kg/m²

27

Wind pressure:

0.45KN/M2

28

Fire proof

B2 grade

29

Resistant temperature

-20 to 50
