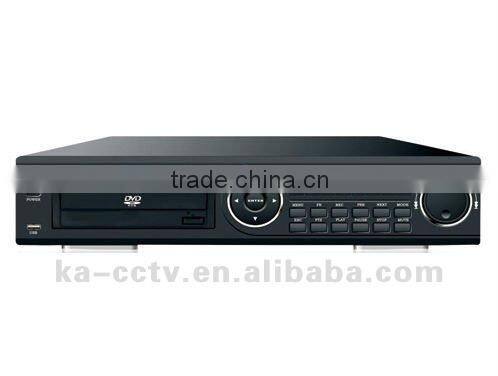

H.264 16ch Hi-tech Cctv Dvr
Negotiable
/ Unit
1 Unit(Min. Order)
- Shenzhen(EXW)
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2012 Hot 16ch DVR With VGA (XKA-9216D)
-
16 Channel Standalone CCTV DVR Made in Shenzhen China
-
8channels CCTV Quad With Audio ,(PIP,IR Remote Control,audio .alarm)
-
8ch Factory 360-degree Security Cameras Cheap Price Dvr/hvr/nvr Wireless ip Camera 7108
-
Cloud Dvr 4ch D1 Dvr H.264 Dvr,3g& Wifi,Hdmi Dvr
-
H.264 Network 2hdd 4ch D1 Dvr With Alarm And Ptz
Product Details
| Place of Origin | Guangdong, China | Brand Name | XKA DVR | |
| Model Number | 9216D |
Product Description
Function
• High-performance CPU,support HDMI,VGA,CVBS output
• Zoom function for both preview and playback
• Have the function of picture-in-picture(PIP)
• All the channels support D1 real-time coding
• Could simutaneously 17 channels preview
• Graphical operating interface,support mouse,panel snd remote control operation
• Support varied PTZ control protocol,and embedded web visiting,support HTTP,SMTP,DDNS,DHCP,PPPOE and NAT traversing.
• Loop-out function(optional)
• Support mobile surveillance
• Built-in Dynamic DNS
Parameters
Model NO. 9216D
| • Operating system | Embedded Linux operation system |
| • Operating interface | Graphical operating interface,support mouse,panel and remote comtrol operation |
| • Video standard | PAL,NTSC |
| • Video compression | H.264 |
| • Audio compression | G711A |
| • Record mode | Manual,timing,alarm,motion detection record |
| • Video search | Time,event,channel ,log |
| • Video mode | Network backup,USB backup,SATA backup |

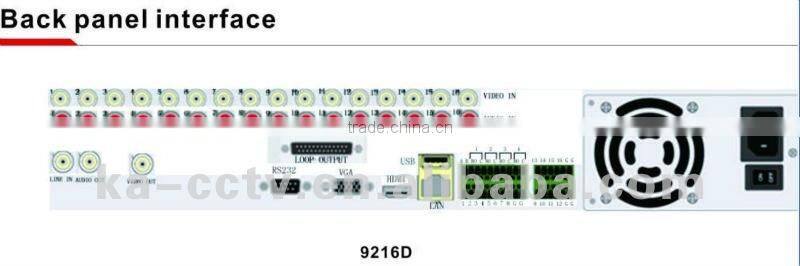

| • Video input | 16 CH BNC |
| • Video output | 1 CH BNC,1 CH VGA,1 CH HDMI |
| • Audio input | 16 CH RCA |
| • Audio output | 1 CH RCA |
| • Monitoring quality | PAL:720x576(D1);NTSC:720x480(D1) |
| • Playback quality | PAL:704x576(D1);NTSC:704x480(D1) |
| • Motion detection | Each channel can set up 192(16x12)detection zomes and multistage sensitivity |
| • Image display | 1,4,9,16 images |
| • Video speed | 25 frames/second(adjustable) NTSC:30 frames/second(adjustable) |
| • Video storage | Local HDD and network |
| • Local playback | 4 CH full D1 |
| • Alarm input | 16 CH |
| • Alarm output | 4 CH |
| • PTZA control | RS485 |
| • HDD interface | 4 interfaces(Max 8 TB) |
| • Network interface | RJ45 10M/100M/1000M adjust-automatically Ethermt interface |
| • USB interface | 2 USB2.0 high-speed interface |
| • Power supply | ATX |

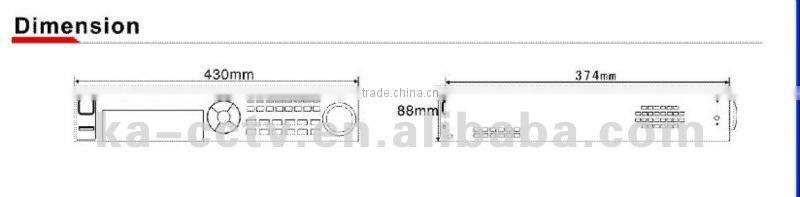

| • Ax dimension | 430X374X88mm |
