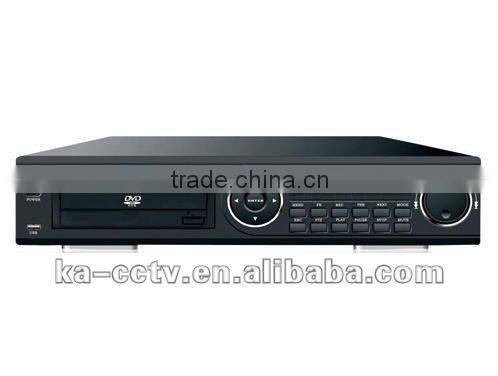

High-performance CPU DVR h.264 16CH with 4HDD

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	XKA
Model Number	9016

1.16ch H.264 Digital Video Record
2.Loop-out function(optional)
3.Support network,D1
4.Smart mobile phone monitoring

• High-performance CPU

• Zoom function for both preview and playback

• Have the function of picture-in-picture(PIP)

• Could simutaneously 17 channels preview

• Graphical operating interface,support mouse,panel snd remote control operation

• Support varied PTZ control protocol,and embedded web visiting,support HTTP,SMTP,DDNS,DHCP,PPPOE and NAT traversing.

• Loop-out function(optional)

• Support mobile surveillance

• Built-in Dynamic DNS

• Operating system	Embedded Linux operation system
• Operating interface	Graphical operating interface,support mouse,panel and remote comtrol operation
• Video standard	PAL,NTSC
• Audio compression	G711A
• Video search	Time,event,channel ,log
• Video mode	Network backup,USB backup,SATA backup
• Video input	16 CH BNC
• Video output	1 CH BNC,1 CH VGA,1 CH HDMI
• Audio input	16 CH RCA
• Audio output	1 CH RCA
• Monitoring quality	PAL:720x576(D1);NTSC:720x480(D1)
• Playback quality	PAL:704x576(D1);NTSC:704x480(D1)
• Image display	1,4,9,16 images
• Video speed	25 frames/second(adjustable) NTSC:30 frames/second(adjustable)
• Video storage	Local HDD and network
• Local playback	16 CH CIF
• Alarm input	4 CH
• Alarm output	4 CH
• PTZA control	RS485
• USB interface	2 USB2.0 high-speed interface
• Communication interface	1RS 485(PTZ);1RS 232
• Power supply	DC12V
• Ax dimension	430X374X88mm
