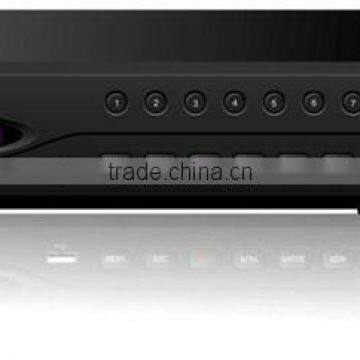

High-performance CPU,HDMI/VGA/BNC/H.264DVR/Full channl WD1/960H

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	xka
Model Number	Model NO. 31WD series

1,High-performance CPU, HDMI/VGA/TV simultaneous vido output
2,H.264 dua-stream video compression
3.Full channel @960Hrealtime

FUNCTIONS:

1. Support HDMI ,TV,VGA simultaneously output
2. Support 16/8/4ch full D1 simultaneously real-time record and network transmission,16/8/4ch full D1
simultaneously playback,and 16/8/4ch CIF/QCIF Subcode flow to realize standard h.264 coding
3. Support review and the digital zoom of the playback image .
4. Support UPNP function, built-in Dynamic DNS.
5. System supporting a variety of languages menu.
6. Support multiple code flow technology , support mobile remote monitoring.
7. System adopt graphical operating interface , support USB mouse , wireless mouse, panel and
remote control operation . support 2 SATA hard-disk, support mobile hard-disk backup .
8. Support varied PTZ control protocol , and embedded web visiting ,support HTTP, SMTP, FTP, DDNS,DHCP,
PPPOE , and support NAT traversing .
9. Support SMTP, SSL, mail alarm, support JPEG capture and post.
10.UPNP(Universal Plug&Play) (no need to forward ports in the router)

parameters:

Operating system	Embedded Linux operation system
System resource	Simultaneously 16/8/4ch D1 full real time record and network transmission and CIF/QCIF subcode flow,1-16/1-8/1-4ch D1 playback
Operating interface	Graphical operating interface ,support mouse ,panel and remote control operation
Video Standard	PAL,NTSC
Image compression	H.264
Audio Compression	G.711
Record mode	Manual ,timing ,alarm ,motion detection record
Video search	Time, event , channel, log
Backup mode	Network backup , USB backup , SATA backup
Video input	16ch BNC
Video output	1ch BNC,1ch VGA,1ch HDMI
Audio input	16ch RCA
Audio output	1ch RCA
Phonic intercom	1ch
Monitoring quality	PAL:720x576(WD1NTSC:720x480(D1)
Playback quality	PAL:720x576(D1);NTSC:720x480(D1)
Image control	Adjustable
Motion detection	Each channel can set up single detection zones and multistage sensitivity
Image display	1,4,9,16 images
Video speed	PAL: 25 frames/second (adjustable) NTSC: 30 frames/second (adjustable)
Video storage	Local HDD and network
Local playback	1-16ch simultaneously playback
Alarm input	16ch
Alarm output	3ch
PTZ control	RS485
HDD interface	2 SATA
Network interface	1 RJ45(10M/100Madjust-automatically Ethernet interface)
USB interface	2 USB2.0 high-speed interface
Power supply	DC12V
Ax dimension	360X260X60mm
