Prefab metal building ,Modular building for labor worker dormitory,army barrack

FOB Price

US$ 45 - 50 / Square Meter

60 Square Meters(Min. Order)

Port XINGANG(TIANJIN)
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	CDPH
Model Number	K Series	Material	Steel
Use	Carport, Hotel, House, Other, Office, Shop, Toilet, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Warehouse, Workshop,Plant, Office or dormitory

Product Description

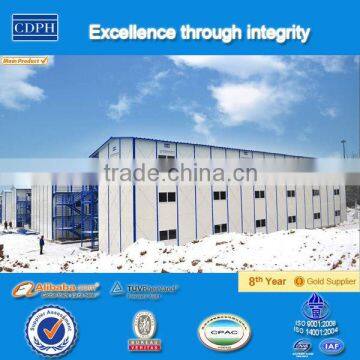

Modular building (K type) is a standard modular house which can be designed as single storey or multistory. Can be used for artisan, workers accommodation. The inside layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 100m2 in 8 hours according to instruction and CD.

The detailed information as follows:

House Type: Rixin Style
Sort	Item	Specification
Dimension	Length	n*M+150(n=4,5,6)M is the prefab unit1M=1820mm
	Width	n*M+150(n=3,4,5,)M is the prefab unit1M=1820mm
	Height of Eave/Ridge	Standard5772mm/8652mm
	Inner Net Height	Groud floor2455mm;First floor2700mm
Standard Accessory	Stair	Steel frame stair, decorative wooden floor, stainless steel railing
	Storey flooring	Steel frame with wood
	Wall Panel	50mm thickness Color steel sandwich panel, color:gray or white
	Roof Panel	75mm thickness Color steel sandwich panel
	Door	Plastic steel door, decorative wooden door, stainless steel door
	Window	Exterior window:Color steel window or Plastic steel window. Interior window:Color steel window, plastic steel window or stainless window.
Optional Accessory	Ceiling	Mineral wool acoustic panel ceiling or plasterboard ceiling
	Partition	Color steel sandwich panel or Light steel keel plasterboard
	Flooring	Wooden floor, floor tiles, PVC floor or carpet
	Water Supply and Drainage	It can be designed and constructured by us
	Electricity	It can be designed and installed by us
Resistance	Live Load	50kg/m2
	Wind Resistence	30m/second
	Fire-proof	B1 grade (apyous material)
	Earthquake Resistence	7 fission intensity
