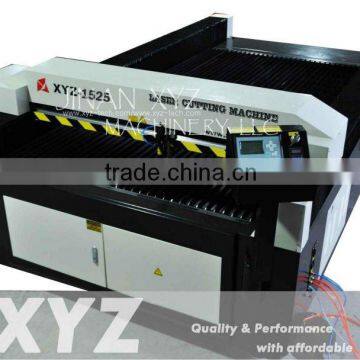

Big flat bed Laser cutting machine--New XYZ1525

Specifications

XYZ1525 Laser  Cutting Machine can meet the demand of  cutting big size materials.

The working area of 1500x2500mm can meet the demands of engraving and cutting on big size materials such as acrylic, cloth, leather, wood, plastic and paper industry. and big power laser tube(90W,130W,150W,170W) adopted can ensure big thickness material being cutted through with very good performance.
Supply with CE certificate, FDA

Specification:
1) Engraving area: 1500 x2500mm (we can also customize you bigger size like 1500x3000mm)
2) Whole machine size: 3200 x 2100x 1380mm
3) Laser power: 80W(optional 100W,150W,180W)
4) cutting speed: 0 - 12000mm/min
5) Resetting positioning accuracy: 0.1mm
6) Power supply: AC 110 - 220V, 50 - 60Hz
7) Gross power: <1,000W
8) Operating temperature:0-45oC

9) Operating humidity: 8 - 95%
10) Minimum shaping character: English 1 x 1mm
11) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI
12) Driving system: stepper
13) Cooling mode: water-cooling and protection system (water flow and temperature safty alarm system included)
14)Auxiliary equipments :Exhaust-fans, air-exhaust pipe
15)Controlling software : DSP control system.
16)Compatible software: CorelDraw; AutoCAD
17)Laser- type: Sealed CO2 laser tube
18)Net Weight:630KG

 Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.

 Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry
