China Manufacture of High Precision Low Carbon Seamless Hydraulic Steel Pipe

Production

China manufacture of high precision low carbon seamless hydraulic steel pipe

Standard

DIN2391, DIN2445, EN10305, GB/T 3639, GB 8713

Inner  Diameter

30mm~250mm

Wall Thickness

0.5mm~18mm

Material

10#~45#,16Mn,Q195~Q345,ST35~ST52

 Length

as customers required

Surface treatment

As customers required

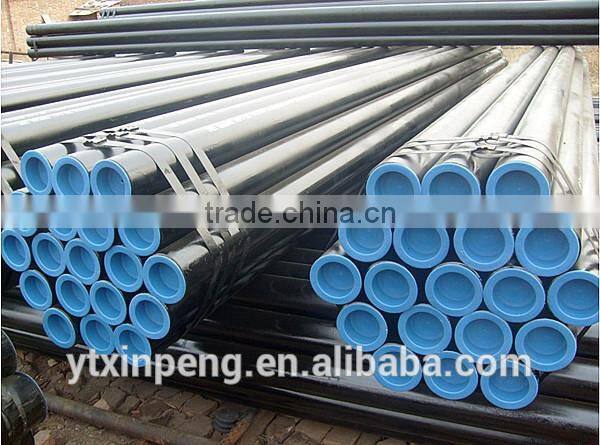

 Package

 1. bundle packing

2. marking as per customer's requests

3. paint on the pipe as per customer request

4. pipe caps as customer reques

Min Order Quantity

According to customer's requirement

Payment terms

L/C, T/T

Contact

If you have any questions, please feel free to contact me.

Delivery conditions

1. NBK(+N)

after cold forming, eventually above phase transition point, in a protective atmosphere of annealing oxidation medium

2. GBK(+A)

after cold forming, annealing in non oxidizing medium protective gas

3. BK(+C)

the final heat treatment after cold forming, therefore small steel pipe plastic, the plastic degree does not guarantee

4. BKW(+LC)

after final heat treatment, a tiny cold drawing deformation, continue again when machining steel pipe allowed inside certain limits cold deformation(bending, flaring)

5. BKS(+SR)

have a stress relief after cold forming, heat treatment, steel pipe can be carried out within a certain limit in the appropriate processing again

ID size

ID deviation (mm)

H7

H8

H9

H10

30

+0.021

0

+0.033

0

+0.052

0

+0.084

0

>30~50

+0.025

0

+0.039

0

+0.062

0

+0.100

0

>50~80

+0.030

0

+0.046

0

+0.074

0

+0.120

0

>80~120

+0.035

0

+0.054

0

+0.087

0

+0.140

0

>120~180

+0.040

0

+0.063

0

+0.100

0

+0.160

0

>180~250

+0.046

0

+0.072

0

+0.115

0

+0.185

0

>250~315

+0.052

0

+0.081

0

+0.130

0

+0.210

0

>315~400

+0.0527

0

+0.089

0

+0.140

0

+0.230

40*50

90*110

140*170

190*215

40*55

95*110

145*170

190*220

50*60

95*115

150*170

190*225

50*65

100*110

150*175

200*220

55*70

100*114

150*180

200*225

60*70

100*115

155*180

200*230

60*75

100*120

160*175

200*245

60*78

100*125

160*180

200*250

63*73

105*125

160*185

220*250

63*75

110*125

160*190

220*270

63*76

110*130

160*195

225*250

63*78

115*130

165*190

240*273

65*80

115*135

165*205

250*290

70*80

120*140

170*200

250*300

70*82

125*140

180*200

260*300

70*85

125*145

180*205

280*323

70*90

125*150

180*210

280*355

75*90

130*150

180*215

300*350

80*92

130*155

180*220

200*213

80*95

130*160

185*205

200*216

80*100

135*160

185*215

250*266

85*100

140*160

185*220

90*105

140*165

190*210

1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material

2.100% Dimension & Visual Examination

3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test

4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test  (ET or UT)

5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)

6.Straightness Test  (optional)

7.Roughness Test (optional)

8.Intergranular Corrosion Test(optional)

9.Impact Test (optional)

10.Grain Size Determinations (optional)

NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
