mini low cost modular homes,prefab labour dormitory

FOB Price

US$ 50 - 75 / Unit

1 Unit(Min. Order)

Port XINGANG(TIANJIN)
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	CDPH
Model Number	K type	Material	Sandwich Panel
Use	Carport, Hotel, House, Other, Office, Shop, Toilet, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Warehouse

Product Description

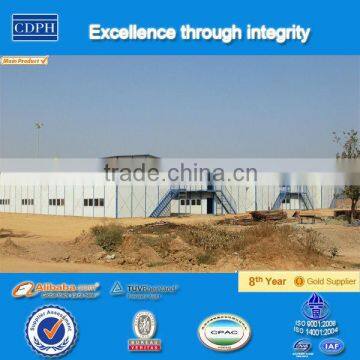

Mobile house (K type) is a standard house model which can be designed as single storey or multistory. The inside layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 100m2 in 8 hours according to instruction and CD.

The detail information is as follows:

No.	Sort	Name	Specification
1	Specification	length	NM+160(N=4,5,6... M is modular, 1M=1820mm)
2		Width	NM+160(N=3,4,5... M is modular, 1M=1820mm)
3		Wall height	5715mm	8565mm
4		Clear height	Ground floor :2425mm First floor :2685mm	Ground floor :2425mm First floor :2425mm Three floor:2685mm
6	Standard accessory	Wall board	50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.
7		Roof board	50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.
8		Door	SIP with steel frame, single door with dimensions of 955*2024mm, furnished with a cylinder lock with 3keys. Doorframe is made of 1.5mm steel, 50mm thick EPS insulation foam.
9		Window	PVC , white color, with dimensions of 1750*950mm, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen.
10		Base beam	C style steel. material:Q235.Painted
11		Column	Double C style steel. material:Q235. modular pace: 1830mm. Painted
12		Floor beam	Parallel truss(C style steel). material:Q235 Painted
13		Floor purline	Gable truss(C style steel). material:Q235. Painted
14		Roof beam	Gable truss(C style steel). material:Q235.Painted
15		Roof purline	Gable truss(C style steel). material:Q235.Painted
16		Inclined brace	round steel, material:Q235. Galvanized and Painted
17		Stair	Steel stair, material: Q235. material:Q235.Painted
18		Tread	press steel board
19		Floor stab	14mm plywood
20	Option	Elevated ceiling	Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel
22		Decorative floor	PVC, laminated or ceramic tile
23		Drainage system	Provided plan, design and construction
24		Electric system	Provided plan, design and construction
25	Technical parameter	Bearing load	50kg/m²
26		Wind pressure:	0.6KN/M2	0.45KN/M2
27		Fire proof	B2 grade
28		Resistant temperature	-20 to 50
29		The resistant earthquake grade	7 fission activate.
