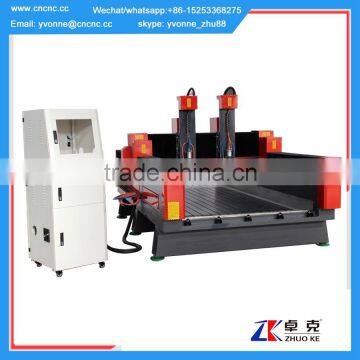

Z 500mm 1325 cnc stone cutter machine with computer control box ZK-1325 1300*2500mm

1. Linear square guide rail for X Y Z-axis and rack transmission, high precision and long life time.
2. Stainless steel water slot cooling system, ensuring the tools and materials cooling, getting the good engraving effect.
3. two 3.2KWChina water cooling spindle, more powerful and not easy to break tools.
4. Working table lower than the normal machine to make sure the machine stable when working.
5. 500mm Z-axis feeding height, better for the more thickness materials processing.
6. Well selected electrical accessory, let the failure rate to the minimum.
7. Intelligent protecting the working table, to prevent the damage by wrong operation. Also can prevent the crush caused by the design working area larger than actual working area.
8. Emergency stop button, ensuring the operation safe.
9. XYZ adopt Step motor
10.NcStudio control system. Suitable for desktop computer or laptop, Win7/xp/2000.
11.Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software.
12. Break points, power off memory way, ensuring the memory function, can continue processing if cutters break or next day working.

Items

Basic configuration

Certificate

CE

XY-axis working area

1300*2500mm

Material

Welded steel pipe machine holder and machine bed, cast iron vertical shafts and transom

Moving way

Gantry moving

Working table

Aircraft aluminum with T slot

Guide way

XYZ-axis linear square guide rail

Driving mode

XY rack gear, Z ballscrew

Z-axis working area

500mm

Max traveling speed

24000mm/min

Engraving speed

18000mm/min

Mechanical precision

0.05mm

Driving method

Stepper motor(XYZ:86BYGH450A)

Water cooling system

Stainless steel water slot

Spindle

2 3.2KW water cooling spindle

Spindle speed

0-24000rpm

Collet type

ER25

Tools diameter

3.175mm, 4mm, 6mm,8mm,10mm,12.7mm

Control system

NCStudio control system

Design software when delivery

Artcam

Compatible design software

Artcam, Type3, Ucancam, JDPaint, MasterCAM

Command

G code ,U00, mmg nc,etc

Running ambient temperature

0-45 degree

Relative humidity

30%-75%

Voltage

AC 380V,50/60Hz, three single phase

Auto tool calibration

For Z-axis

Tools

12 pcs for stone
