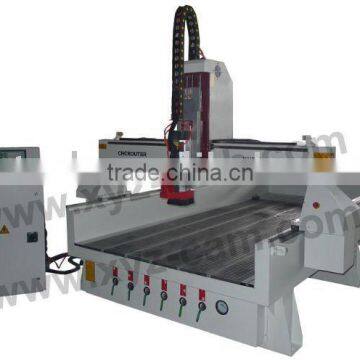

XYZ 1530 ATC

Specifications

Italy HSD ATC spindle motor

Automatic tool changing system of linear-array(optional disc-array style)

Friendly operating interface-Taiwan Syntec Control System--high stability, excellent quality and convenient maintenance, thus ensuring fast and smooth carving

Linear ball bearing square rails with the length of 25mm

2 phrase digital brushless servo system--Japanese Yaskawa servo motors and drivers

Vacuum adsorption device worktable

Unique intelligent algorithm

High speed cutting and synchronization of processing curves and straight lines are implemented.

High compatibility for different CAD/CAM software such as type3/Artcam/Castmate/Wen Tai,and etc.

Suitable to process various cabinet doors, solid wood doors, computer tables, panel furniture, screens, craft widows...

1 X,Y,Z Working Area 1500x3000x500mm Options:1300X2500X500mm 2000X3000X500mm
2 Working Size 1500x3000, 1300X2500, 2000X3000mm, Z travel can be customized
3 X,Y,Z Traveling Positioning Accuracy 04/300mm
4 X,Y,Z Repositioning Positioning Accuracy 0.05mm
5 Table Surface Bakelite material vacuum table
6 Frame Welded Steel
7 X, Y Structure Rack and PInion Drive,Hiwin Rail Linear Bearings
8 Z Structure Ball Screw, Hiwin Rail Linear Bearings
9 Max. power Consumption(Without spindle)  3.0Kw
10 Max. Rapid Travel Rate  42000mm/min
11 Max.Working Speed 36000mm/min
12 Spindle Power Motor 8.0Kw HSD Air cooling Spindle
(Automatic tool changer that can change 8 tools)
13 Spindle Speed 0-24000RPM
14 Drive Motors  Panasonic Servo Motors and Drivers
15 Working Voltage AC380V/50/60Hz,3PH
16 Command Language G Code
17 Operating System LNC-M510i System
18 Interface USB and RJ45
19 Flash Memory 2G (U Disk)
20 Collet ER32
21 X,Y Resolution  <0.01mm
22 Software Compatability  Type3 original with Dongle or Wentai , ArtCAM software/ARTCAM/CAXA

Guarantee: One year from the date of commissioning
