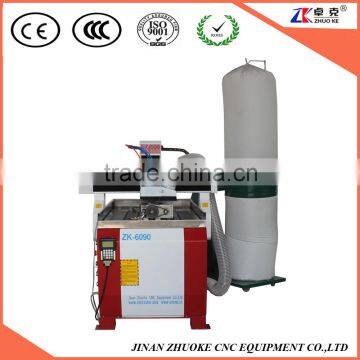

High Efficiency 6090 Mini Woodworking CNC Router With Stainless Steel Water Slot Dust Collector DSP Offline Control ZK6090-1500W

Technical Parameter

Machine Feature:

1. Whole cast iron machine bed, cast aluminum gantry with dustproof system, under impact resistance beam more stronger, higher cutting engraving precision.
2. Imported high quality ball screw, precision segmentation, to achieve the high precision engraving.
3. Adopt imported all-steel linear guide rail with the high precision,ensure machine frame much stability and durability.
4. Using the Leadshine AC driver and 85BYG high power step motor , makes the machine run smoothly, and higher efficiency .
5. The spindle motor adopt high-speed water frequency conversion brushless motors from domestic famous manufacturer . not only can cut vigorously, but also can engrave with great precision
6. Optional control system, NcStudio/DSP/Mach3, high stability, high efficiency, easy to learn.
7. Continuing working after the break point/power failure, lower the rejection rate.
8. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.

The Configuration You Can Choose For The Machine :

1.For Spindle : You can choose China brand water cooling spindle (1.5Kw/2.2Kw/3.0Kw/4.5Kw/5.5Kw or bigger) , China brand air cooling spindle (1.5Kw/2.2Kw/3.0Kw/4.5Kw/5.5Kw or bigger) ,Italy HSD brand air cooling spindle (1.5Kw/2.2Kw/3.0Kw/4.5Kw/5.5Kw/6.0Kw or bigger)

.

2.For the guide rail : You can choose high precision Taiwan Hiwin linear square guide rail or high speed Linear round guide rail .

3.For the motor , You can choose China famous brand step motor and Leadshine driver , or Hybrid servo motor driver , or Japan Yaskawa servo motor driver .

4.For the working table , You can choose aluminum T slot working table or Vacuum table ,vacuum table is mainly for MDF/Wood materials engraving or cutting work to fix the materials on the table .

5.For the machine , You can add the dust collector , it can suck the dust from the table , and keep the machine clean .

6.For the machine , if you want to do metal or stone materials engraving & cutting work , you need to add the stainless steel water slot on the machine table , so that you can use the water pump cooling the metal stone materials in case the too hot temperaure .

7.For the machine , you can choose three kinds control system , Mach3 control system with USB port , can work with laptop comuter , support Windows XP/7 .  PCN NCStudio control system , can work with desktop computer , support Windows XP , DSP offline control system , can work without computer , achieve offline control .

8.If you want to do round materials engraving cutting work , you can add a rotary attachment ( rotary axis , 4th axis ) for cylinder materials engraving and cutting .

Applicable Industries

Advertisement engraving and cutting, handicraft industry, advertisement logo,crystal word making, toys and gifts,artwork engraving,various types of man-made plate,LED,neon literally cutting groove,plastic molding light bow, interior decoration industry, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, building, small metal, stationery, rulers, badges, department card, a variety of signs, trademark processing, etc.

Applicable Materials

Organic glass,acrylic,ABS,PVC,MDF,double-color board ,copper,aluminum composite panel,wood,ox horn,marble,copper ,aluminum industry,3D technology,acrylic cutting,wave board,man-made stone,wood etc.

Models

ZK-6090, ZK-1015,ZK-1212,ZK-1215,ZK-1218,ZK-1224
