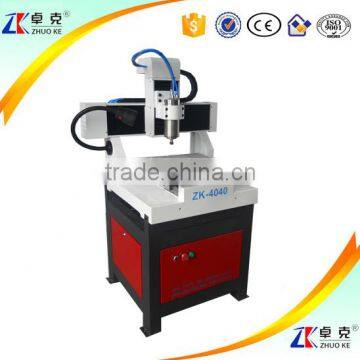

China Small PCB CNC Milling&Drilling Machine ZK-4040 400*400MM Stepper Motor Ball Screw Transmission

Product Application

To complete the production of single and double panel, to help students master the system board processes(cutting boards,carving,drilling,overhole plating). Provide a reliable platform for the training of the new technical personnel according to factory.
Meet students’ electronic design, EDA practice, electronic design contest, course design, graduation design, innovative practices, such as integrated design, innovative experimental requirements.
Provide the necessary conditions for students independent learning, cooperative learning, research study. Strengthen students’ practical and creative ability.

To culture from students to train engineers via electronic products from the principles of design,process design, prototype production of the whole process,while learning and master the mechanical process plate process

Main Features

In order to shorten the research and design time and see results as soon as possible, research institutions, universities, electronics companies can adopt Zhuoke series PCB engraving machine.The time of product design developed is very long if sent to the printed version of plant production, small trial is high cost and temporary modification of the printed version is also very troublesome.The printed version of the production of other methods are very cumbersome and the printed version is not standardized.
Zhuoke series highprecision circuit board engraving machine with drilling, carving, line isolation, width setting, the whole map and designated areas engraving, milling and shaped holes and other functions, you can also use multiple combination of carving knives way to prevent a board spending a few hours, it has high performance. It takes just 12 minutes to make a simple circuit board and also just about 20 minutes to produce a very complex circuit board. With environmental performance, using physical engraving, free corrosion, avoid environment pollution, it is the most powerful, costeffective CNC engraving machine in the PCB engraving machine industry.

Spindle

1.5KW water cooling spindle : cheap price, high efficiency, small noise, strong amd free maintenance,continuous working.

Cast aluminum gantry, more stable and strong

Control cabinet

Stepper motor: make the machine operating smoothly, high accuracy, durable, economical price.

Guide way&Transmission

Linear round guide rail: famous in China,high quality low cost, high accuacy and durable.

Ball Screw for XYZ-Axis: high accuracy, fast speed and long life.

Accessoris:
