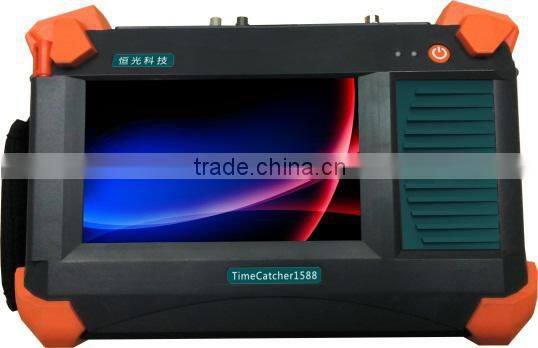

TimeCatcher WF-1588 Time Synchronization Tester / Analyzer

TimeCatcher WF-1588 Time Synchronization Tester / Analyzer

The TimeCatcher1588 is a Sync Tester / Analyzer that allow the user to test and analyze synchronization quality and compliance in various types of networks. The TimeCatcher1588 is developed for both traditional SDH/SONET core networks and IP-based backhaul networks, that can measure synchronization conformance simultaneously at a packet sync level (based on SyncE and IEEE 1588v2 technologies) and at a traditional physical sync level (1PPS, E1 interface) behind a packet synchronized devices. Multiple packet sync measurements can be performed, whether it’s related to IEEE 1588v2 slave / boundary clock performance qualification or SyncE wander can be also measured at any node in the network.

Basic Function

l Embedded time and frequency GPS / Rubidium reference.

l Built-in Rubidium oscillator,High sensitivity GPS receiver,BD receiver for timing measurement vs UTC.

l High sensitivity measurement 1588v2 time server,PTN/OTN Data transmission devices and traditional physical sync level (PTP,1PPS, 1PPS+TOD).

l Precision measurement IEEE1588v2 clock synchronization or SyncE clock synchronization accuracy performance including 2.048MHz,2.048Mb/s,Ethernet.

l TOD instant message display, TOD deviation real-time display.

l PTP messages instantly capture, analysis, storage, PTP synchronization process instantly displays.

l use as auxiliary time server to provide 1PPS+TOD or PTP signal for system time.

l Select GPS Rubidium atomic clock for at least 3 hour continue test, suitable for indoor or the place where user do not have GPS antenna environment.

l Provide G.703 2.048MHz,2.048Mb/s accuracy external clock input interface.

l Support long period continue test,Statistic analysis time synchronization and clock synchronization long-term drift,calculate MTIE,TDEV.

l Instant screen capture function, you can save test result via graph mode instant.

l Supports test result stored and data replay function.

l Built-in Li-Ion rechargeable battery, supports 8 hours continuous operation.

l USB data upload/download ports,Results of measurements on a PC sorting, archiving, analysis.

l Extensive system information query functions, such as satellite state, Rubidium state, storage space, temperature, and other information.

l Support association test function, PTP + TOD simultaneously test.

l Supports multi-input physical sync measurements.

l 7 inch TFT color screen operation,language support Chinese/ English with GUI interface.

l Fully comply with IEEE,ITU-T standard.

l Provide different types of test modules for users, to meet the different requirements of the test environment.

l Supports Instant results, trends, test patterns, message statistics, packet analysis, compensation view.

l Supports PTP / TOD simulation tests.

l Supports manual, automatic and timed tests.

l Support real-time screenshots, and the test result can be saved as an image at anytime.

l Support in-depth analysis, template matching.

l Supports on-line firmware upgrade.
