High Quality Union Quick Plastic Water Fitting
- Shanghai/Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JQQD | |
| Model Number | PM |
Product Description

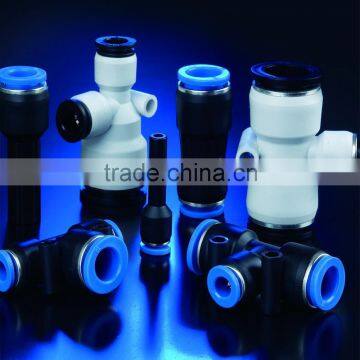

1.Picture of product
2.Descriptions of product
-------------------------------------Instructions------------------------------------
Operating Pressure and Temperature | |||||||
Temperature Size | 1/4” | 3/8” |
|
| |||
| 10mm | 12mm | 15mm | 20mm | 22mm | 25mm | 32mm |
-20℃(-4℃) | 230Psi | 170Psi | |||||
1℃(34℃) | 230Psi | 170Psi | |||||
20℃(68℃) | 230Psi | 170Psi | |||||
65℃(149℃) | 150Psi | 100Psi | |||||
Attention: Please contact if our productsare used
in different temperature and pressure.
Allowed OD Tolerance | |
Size | Tolerance |
1/4” | ±0.002“(±0.05mm)
|
3/8” | |
10mm |
±0.002“(±0.05mm) -0.004”(-0.05mm)
|
12mm | |
15mm | |
20mm | |
22mm | |
25mm | |
32mm | |
Allowed Torque | |||||||
Thread Torque | 1/4”, 3/8” | 10mm,12mmm15mm | 20mm,22mm, 25mm,32mm | ||||
plastic | Max Torque | (N.m) | 1.5 | 3.0 | 4.0 | ||
Steal | Max Torque | (N.m) | 7.9-9.0 | 12.0-14.0 | 22.0-24.0 | 28.0-30 | 40.0 |
-----------------------------------------Model---------------------------------------
---------------------------------------Standard---------------------------------------
Applied to food: JQQD water purifier adapter connector is made of
non-poisonous and non-harmful material which has passed the
certification by BS, WRAS, FDA, NSF, etc. It is the component for the
water purifier, food and beverage machine.
3.How to order our product
1.You can just tell us the model number and the quantity you need
2.If you can find the model in our website,you can offer general
drawing of the product and inform us the material and colors you need
3.We will do quote once get the information of you
4.NOTE:in general,we have stock for the model shown in website.As
for the type was customer made,we would produce once get you order.

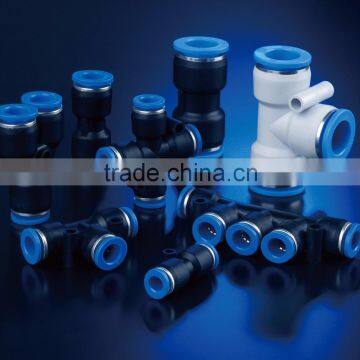

4.More product to choose
5.Certifications of product
1.Different quality for different market
2.High quality
3.Competitive price
4.Fast delivery
(believe us never be disappointed)
1.Packing of product
First, 20-100pieces/ plastic bag
20-50bags/ carton
second, customizing the packing you need
In addition, we can print your company's logo
for the OEM service
2.Trade items of product
Payment | L/C,T/T,Paypal |
Port | Shanghai,Ningbo or customers needs |
MOQ | 10pieces |
Supply ability | 100,000pieces per model number a month |
OEM | accept |
Delivery | About 5 days |
1.Introduction of company
2.Our customers
Our customers comes from all over the world,
we would treat they truly including you.
3.Welcome to contact us
Telephone :0577-62883999
Fax: 0577-62883998
