Carbon black making machine,activated carbon making machine
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Waste Tyre Pyrolysis Carbon Black Machine,Waste Tyre Pyrolysis Carbon Black Processing Machine
-
Waste tyre pyrolysis carbon black processing machine
-
Factory Direct Sell Good Quality Carbon Black Processing Machine
-
2016 JZ World-ahead carbon black processing machine
-
Factory Supply carbon black processing machine
-
henan xinxiang jinzhen carbon black ball briqurtting machine pyrolysis carbon black processing machine
Product Details
| Condition | New | Type | Tire Machine | |
| Tire Machine Type | Tire Recycling Machine | Place of Origin | Henan, China | |
| Brand Name | JZ | Model Number | JZF-103 | |
| Voltage | 220V | Power(W) | 9000w | |
| Dimension(L*W*H) | 1500mm*630mm*1600mm | Weight | 1500kg | |
| Certification | ISO9001&CE | Warranty | 12month | |
| After-sales Service Provided | Overseas service center available |
Product Description
Carbon black making machine,activated carbon making machine
Usage
Tyre recycled carbon black use can make the carbon black
powder into fuel to burning like the coal.

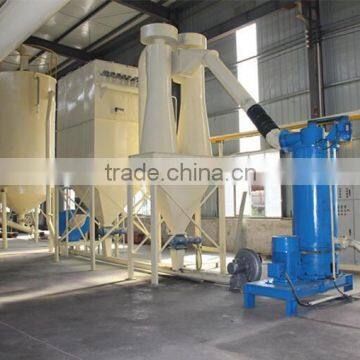

Structural principle
The components of the whole process line are screw feeder,
magnetic separator, blender belt conveyor, control panel and
pellet machine.
Working process
1.You should put the carbon black powder into the screw
conveyor , which can take thematerials into the magnetic
separator.
2.The magnetic separator can remove the steel wire and
iron wire from the carbon black powder.
3.Then add binder into the blender, the blender can mix the
materials
4.The belt conveyor can convey the materials into the pellet
machine to get the finished
carbon black pellets, which can be used as fuel for boilers
replacing oil, coal, natural gas and electricity.
Main parameters
Model | Daily capacity | Main engine power | Size(mm) | Weight |
JZ-300 | 300-500kg | 15 | 1500*630*1600 | 1.1ton |
JZ-400 | 500-800kg | 15 | 1600*750*1650 | 1.3ton |
JZ-500 | 800-1.2ton | 22 | 1800*800*1650 | 1.5ton |
JZ-600 | 1.5-1.8ton | 30 | 2100*900*1650 | 1.7ton |
Blender | 1-1.2ton | 5.5 | φ1600*1300 | 0.8ton |
Magnetic separator | 1ton | 0.5 | 600*750*1250 | 0.3ton |
Spiral Conveyor | 1ton | 3 | φ159*3200 | 0.5ton |
Control Panel |
|
| 500*300*1050 |
|
Belt Conveyor | 1ton | 3 | 4300*630 | 0.5ton |
If you want to know some about our equipment , please contact with me ! Thank you !
welcome to our factory !!
