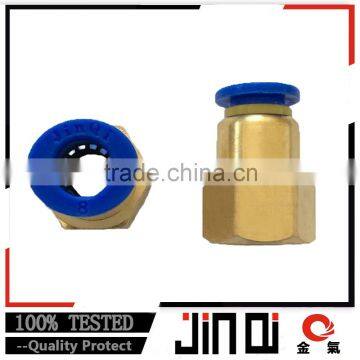

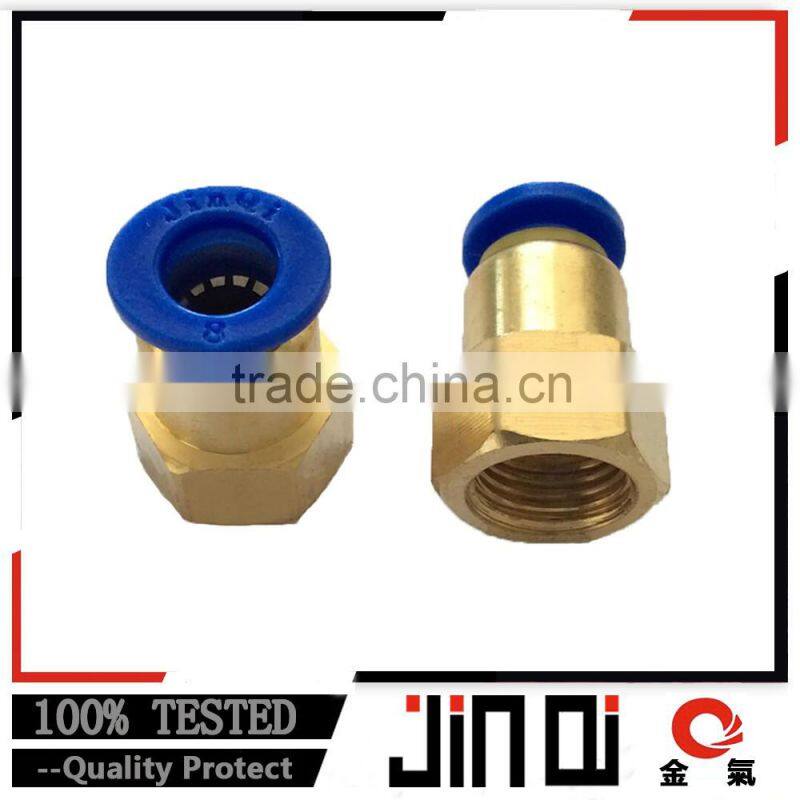

High Grade Low Price Pneumatic Connector Use in Machine
- Shanghai/ningbo
- T/T
You May Like
-
High Quality Made in China Pneumatic Coupling Use in Machine
-
Quality Supplier Widely Used Pneumatic Joint Use in Machine
-
Reliable Quality Easy to Disassemble Pneumatic Metal Fitting Use in Machine
-
China Manufacturer Simple Design Pneumatic Brass Fitting Use in Machine
-
Top Selling Products Easy Installation Pneumatic Brass Joint Use in Machine
-
OEM Manufacture Simple Design Reusable Hose Fitting for Equipment
Product Details
| Type | Fittings | Place of Origin | Zhejiang, China | |
| Model Number | JPCF | Brand Name | JQQD |
Product Description
-------------------------------------Instructions------------------------------------
Fluid | Air ,vacuum |
Pressure range | 0-10bar |
Negative pressure | -100KPa |
Burst pressure | 16bar |
Temperature range | 0-60℃ |
Tube material | PE.PU/nylon and polyurethane |
Material | Nickel-plated Brass |

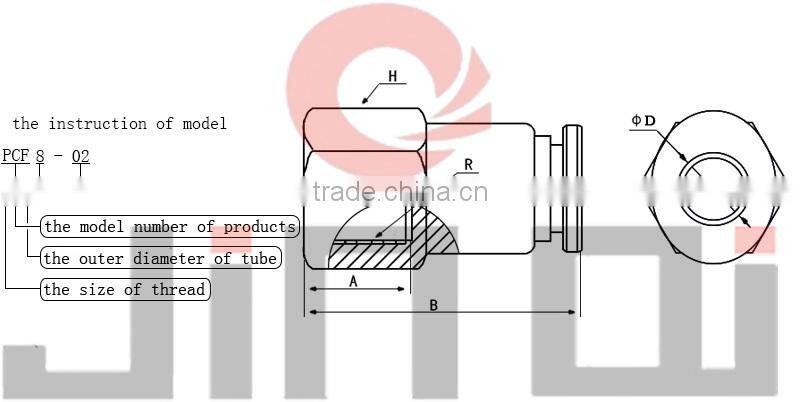

-----------------------------------------Model---------------------------------------
MODEL | Tube Size | Thread Size(BSP- R, BSPP- G) |
PCF 04-M5 | 4mm | M5 |
PCF 04-M6 | 4mm | M6 |
PCF 04-01 | 4mm | 1/8" |
PCF 04-02 | 4mm | 1/4" |
PCF 04-03 | 4mm | 3/8'' |
PCF 06-M5 | 6mm | M5 |
PCF 06-M6 | 6mm | M6 |
PCF 06-01 | 6mm | 1/8" |
PCF 06-02 | 6mm | 1/4" |
PCF 06-03 | 6mm | 3/8" |
PCF 06-04 | 6mm | 1/2" |
PCF 08-01 | 8mm | 1/8" |
PCF 08-02 | 8mm | 1/4" |
PCF 08-03 | 8mm | 3/8" |
PCF 08-04 | 8mm | 1/2" |
PCF 10-01 | 10mm | 1/8" |
PCF 10-02 | 10mm | 1/4" |
PCF 10-03 | 10mm | 3/8" |
PCF 10-04 | 10mm | 1/2" |
PCF 12-01 | 12mm | 1/8" |
PCF 12-02 | 12mm | 1/4" |
PCF 12-03 | 12mm | 3/8" |
PCF 12-04 | 12mm | 1/2" |
PCF 14-02 | 14mm | 1/4" |
PCF 14-03 | 14mm | 3/8" |
PCF 14-04 | 14mm | 1/2" |
PCF 16-02 | 16mm | 1/4" |
PCF 16-03 | 16mm | 3/8" |
PCF 16-04 | 16mm | 1/2" |
PCF 16-06 | 16mm | 3/4" |
Features:
♦Various model with simple design,can meet any layout demands of pneumatic tube.
♦The plastic tube also can be rotated freely after installation.
♦The release ring which adopted oval-shaped design is easy to disassemble.
♦All PC model pneumatic fittings have inner hexagonal bore for easy installation in narrow place.
