En10305-1 Seamless H8 Cylinder Hoing Steel Tubes
- Qingdao
- T/T Money Gram
You May Like
Product Details
| Thickness | 2, 30 | Section Shape | Round | |
| Outer Diameter | 30 - 250 mm | Place of Origin | Shandong, China | |
| Secondary Or Not | Non-secondary | Application | Hydraulic Pipe | |
| Technique | Cold Drawn | Certification | Other, ISO9001:2000 | |
| Surface Treatment | Other, honed/smooth | Alloy Or Not | Non-alloy |
Product Description

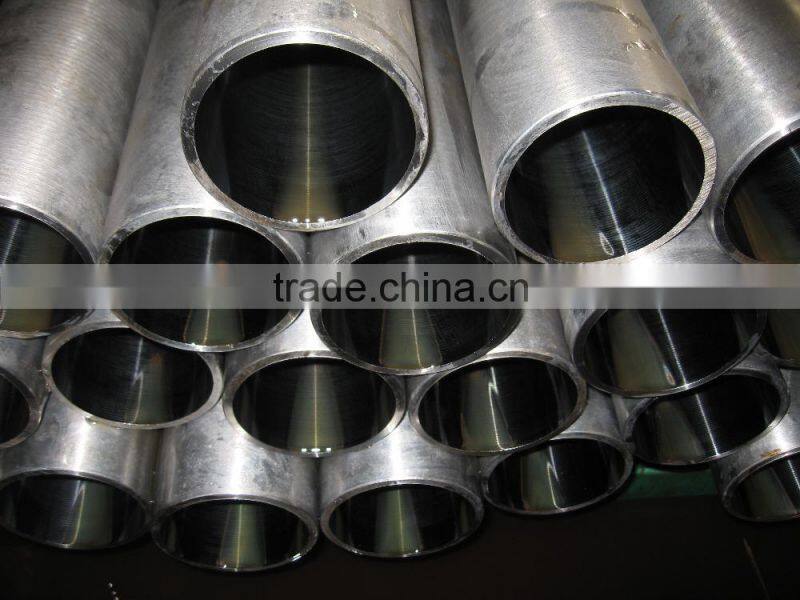

Commodity name: En10305-1 Seamless H8 cylinder hoing steel tubes
1.Grade: 20#(aisi1020,ck20),45#(aisi1045,ck45),st52(16Mn,Q345D),25Mn(stkm13c-t),27SiMn
2.ID:30-250mm
3.ID tolerance:H8,H9
4.Surface roughness:Ra 0.02— 0.4μm
5. Final supply condition:cold drawn and stress-relieved(BK+S)
6. Machining allowance:0.5-1.5mm
7.Wall thickness:10%×ID
Variety
Processing | Cylinder Diameter | Straightness | Size Accuracy | W.T/mm | Inner Bore Roughess |
Cold drawn/ cold rolled | ID30-250 | 0.3 | H9-H11 | ±10% | 0.4~1.6um |
Honed tube | ID50-250 | 0.3 | H7-H9 | ±10% | <0.4um |
Mechanics performance
Material | Tensile strength | Yield strength | Elongation | Hardness |
Ck20/20#/AISI1020 | >520 N/ mm2 | >375 N/mm2 | >15% | >85HB |
Ck45/45#/AISI1045 | >600 N/ mm2 | >520 N/ mm2 | >15% | >85HB |
ST52/16Mn/Q345D | >600 N/ mm2 | >520 N/ mm2 | >15% | >85HB |
25Mn/STKM 13C-T | >600 N/ mm2 | >530 N/ mm2 | >15% | >85HB |
Dimension tolerance
ID size | ID deviation (mm) | |||
H7 | H8 | H9 | H10 | |
30 | +0.021 0 | +0.033 0 | +0.052 0 | +0.084 0 |
>30~50 | +0.025 0 | +0.039 0 | +0.062 0 | +0.100 0 |
>50~80 | +0.030 0 | +0.046 0 | +0.074 0 | +0.120 0 |
>80~120 | +0.035 0 | +0.054 0 | +0.087 0 | +0.140 0 |
>120~180 | +0.040 0
| +0.063 0 | +0.100 0 | +0.160 0 |
>180~250 | +0.046 0 | +0.072 0 | +0.115 0 | +0.185 0 |
>250~315 | +0.052 0 | +0.081 0 | +0.130 0 | +0.210 0 |
>315~400 | +0.0527 0 | +0.089 0 | +0.140 0 | +0.230 |
Delivey conditions:
- Standard packing with plastic caps and strapped bundles.
- Commercial length 2000~10500mm,custom lengths upon request
- Surface protection
We can supply cold drawn/cold rolled seamless tube,honed tube,hydraulic pipe,hydraulic cylinder tube.
- Pretreatment : Acid cleaning- Parkerizing
- Cold drawn/cold rolled
- Annealing furnace—— stress-relieving (+SR)
- Straightener—— Straightening/ Leveling
- Straightness inspecting
Dimension inspecting

- Sawing off not good parts

LatheSurface
Polishing
Honed/SRB
Finished products
Other products
http://www.china.cn//product-detail/steel-tube-6-cold-drawn-with_1616196827.html
Any need, please feel free to contact us!!
Why you choose us as your best choice?
- Our quality is the top five in China. Raw material is mainly from some famous refinery steel mills, such as BAO STEEL, Tianjin, and Chengdu etc, which are the best and largest raw material manufacturers in China.
- we have been through ISO9001:2008 international quality system certification.
- Warranty period for our honed tubes and chrome bars is 2 years. For some special or important customers, the period is 5 years.
- All the orders, records of production and inspection would be kept for 5 years
- High Precision:
Honed tube (Roughness of tube is 0.2μm and straightness is less than 0.15/1000), piston rod (Plating thickness is 10-100 micron. Surface roughness is 0.2μm and straightness is also less than 0.15/1000)
Product details are completely according to International Standard, chrome rod and honed tube must be cut flatly, and no chrome marks on the surface of rod. (Most of domestic mills don’t do this in order to reduce cost)
- Delivery time is very fast. The average delivery time is 5-30 days after confirming the orders.
- Package:banding with steel strips, braiding parcel at outside
- Conservation: Anti rust oiled coating on the inside and outside of the surface, plastic caps at both ends.
