EN10305-1 Cold Drawn Steel Pipe For Cylinder Using
- Qingdao
- T/T
You May Like
-
Din2391 Seamless Steel BKS Cold Drawn Tube
-
En10305-1 E355 E235 E420 Precision Seamless Cold Drawn Steel Tube and Pipe
-
Stress Relieved ISO9001 2008 Verified Cold Drawn Seamless Steel Tube
-
Annealed Precision Cold Rolled Seamless Steel Hydraulic Pipe
-
DIN2391 ST52 Cold Drawn Seamless Honed Mechanical Pipe
-
Din2391 ST52 St37 E355 BKS Cold Rolled Steel Tube Quality Choice
Product Details
| Thickness | 2, 30 | |||
| Section Shape | Round | Outer Diameter | 30 - 250 mm | |
| Place of Origin | Shandong, China | Secondary Or Not | Non-secondary | |
| Application | Hydraulic Pipe | Technique | Cold Drawn | |
| Certification | Other, ISO9001:2008 | Surface Treatment | Other, honed/Surface polished | |
| Alloy Or Not | Non-alloy |
Product Description

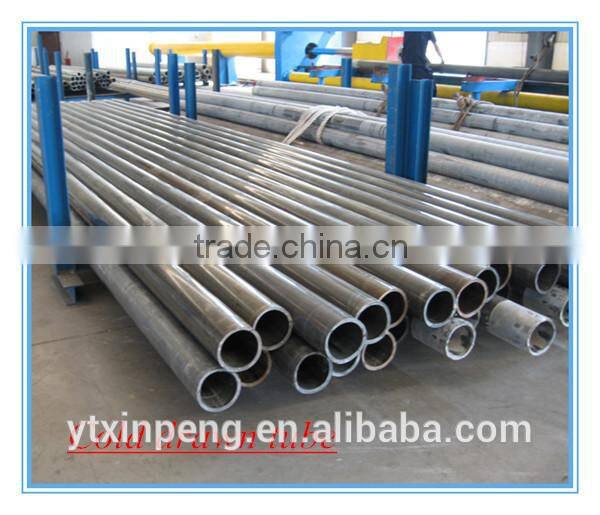

Commodity name: EN10305-1 Cold drawn steel pipe For Cylinder using
1.Grade: 20#(aisi1020,ck20),45#(ck45,aisi1045),st52(16Mn,Q345D),25Mn,27SiMn,42CrMO
2.ID:30-250mm
3.ID tolerance:H8,H9
4.Surface roughness:Ra 0.02— 0.4μm
5. Final supply condition:cold drawn and stress-relieved(BK+S
6. Machining allowance:0.5-1.5mm
7.Wall thickness:10%×ID
Variety
Processing | Cylinder Diameter | Straightness | Size Accuracy | W.T/mm | Inner Bore Roughess |
Cold drawn/ cold rolled | ID30-250 | 0.3 | H9-H11 | ±10% | 0.4~1.6um |
Honed tube | ID50-250 | 0.3 | H7-H9 | ±10% | <0.4um |
Mechanics performance
Material | Tensile strength | Yield strength | Elongation | Hardness |
Ck20/20#/AISI1020 | >520 N/ mm2 | >375 N/mm2 | >15% | >85HB |
Ck45/45#/AISI1045 | >600 N/ mm2 | >520 N/ mm2 | >15% | >85HB |
ST52/16Mn/Q345D | >600 N/ mm2 | >520 N/ mm2 | >15% | >85HB |
25Mn/STKM 13C-T | >600 N/ mm2 | >530 N/ mm2 | >15% | >85HB |
Dimension tolerance
ID size | ID deviation (mm) | |||
H7 | H8 | H9 | H10 | |
30 | +0.021 0 | +0.033 0 | +0.052 0 | +0.084 0 |
>30~50 | +0.025 0 | +0.039 0 | +0.062 0 | +0.100 0 |
>50~80 | +0.030 0 | +0.046 0 | +0.074 0 | +0.120 0 |
>80~120 | +0.035 0 | +0.054 0 | +0.087 0 | +0.140 0 |
>120~180 | +0.040 0
| +0.063 0 | +0.100 0 | +0.160 0 |
>180~250 | +0.046 0 | +0.072 0 | +0.115 0 | +0.185 0 |
>250~315 | +0.052 0 | +0.081 0 | +0.130 0 | +0.210 0 |
>315~400 | +0.0527 0 | +0.089 0 | +0.140 0 | +0.230 |
Delivey conditions
- Standard packing with plastic caps and strapped bundles.
- Commercial length 2000~10500mm,custom lengths upon request
- Surface protection
We can supply cold drawn steel pipe,honed tube,hydraulic pipe,hydraulic cylinder tube.
- Pretreatment : Acid cleaning- Parkerizing
- Cold drawn/cold rolled
- Annealing furnace—— stress-relieving (+SR)

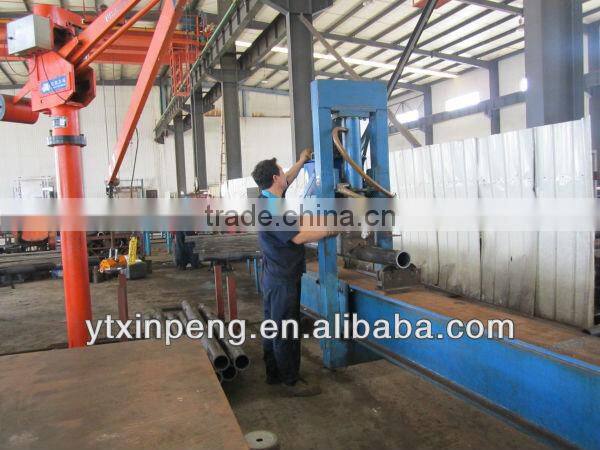

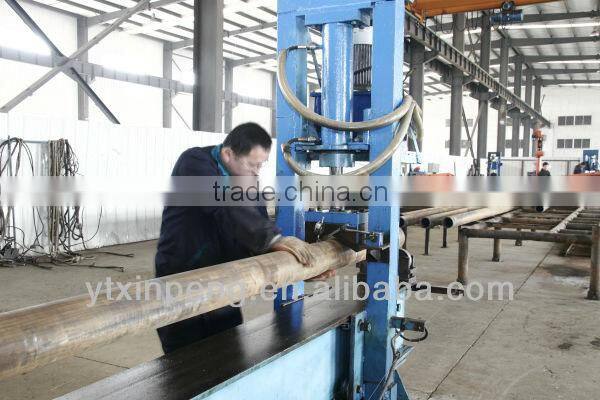

- Straightener—— Straightening/ Leveling
- Straightness inspecting
- Dimension inspecting
- Sawing off not good parts
- Lathe
- Surface Polishing
- Finished Products
Any need or intrest, please feel free to contact us!
