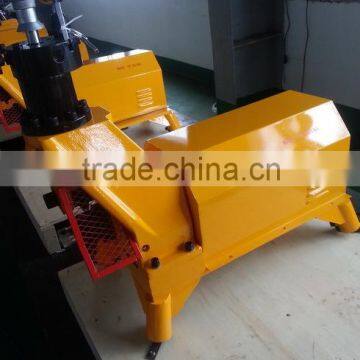

Electric hydraulic rolling groover for steel pipes 2"-12"

Specifications

1. This machine is applicable for grooving 2"-12" steel pipes and 2"-4" plastic-lining pipes.

2. Sturdy hydraulic-pump with precisely formed grips for ideal handling.

3. Compact and very stable machine design.

4. Powerful yet quiet motor.

5. Fine adjustment for groove depth and regulation.

6. Equipped with a foldable steel support to contribute to easier operation and labor saving.

7. With a guide wheel to reduce the vibrating of the pipe when grooving.

8. CE certified.

Application area

Sprinkler systems, installations, larger heading units, industrial use and mining.

Technical data:

Working range:

2"-12"(Φ57-Φ325) Steel pipe

2"-4"(Φ57-Φ114) Plastic-lining pipe

Pipe wall-thickness: : 10mm

Speed: 23 rotations/m

Power:

Three-phase motor, Voltage: 110-415v,

Power capacity: 750W, Frequency: 50-60Hz

Single-phase motor, Volate: 110-240v

Power capacity: 1100-1500W, Frequency: 50-60Hz

Standard Equipment:

Steel pipe support, 1 pc

A set of 2"-12" knurl wheel, 3 pcs

A set of 2"-12" pinch roll, 2 pcs

A set of guide wheel

·Accessories

Hydraulic steel pipe support 29.5kg

Guide wheel 3.5kg

Knurl wheel(Φ60-Φ76) 0.5kg

Knurl wheel(Φ89-Φ168) 1.25kg

Knurl wheel(Φ219-Φ325) 1.4kg

Pinch roll (Φ60-Φ168)  0.65kg

Pinch roll (Φ219- Φ325)  0.6kg
