Home > Products > Machinery and Vehicle > TY360-2PR384K Heavy off Road Vehicle, Duty off Road Dumper,off Road Truck

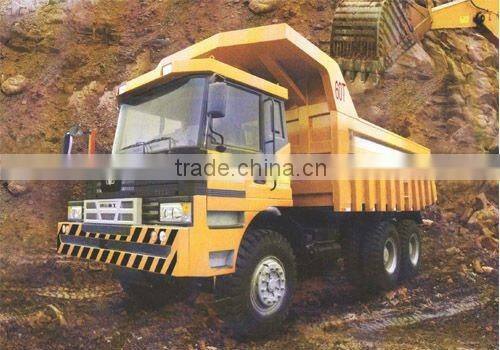

TY360-2PR384K Heavy off Road Vehicle, Duty off Road Dumper,off Road Truck
US$ 1 - 80,000
/ Unit
1 Unit(Min. Order)
- china main port
- T/T
You May Like
-
TY360-2PT384K Heavy Duty off Road Dumper,off Road Vehicle,off Road Truck
-
TY360-0PR384W Heavy Duty off Road Dumper,off Road Vehicle,off Road Truck
-
TY360-0PT384W Heavy Duty off Road Dumper,off Road Vehicle,off Road Truck
-
TY360-1PR384Y Heavy Duty off Road Dumper,off Road Vehicle,off Road Truck
-
TY360-1PT384Y Heavy off Road Dumper,off Road Vehicle,off Road Truck
-
TY380-0PV404K Heavy off Road Dumper 80ton,off Road Vehicle,off Road Truck
Product Details
| Place of Origin | Shanxi, China | Brand Name | MANNWELL, TONGYUN | |
| Model Number | TY360-2PR384K |
Product Description
Heavy off road vehicle
duty off road dumper,off road truck
6x4 Heavy off road vehicle
8x4 Heavy duty off road dumper
MODLE | TY360-2PR384K |
PHOTO | |
DIRVE METHOD | 6X4 |
CURB WEIGHT(KG) | 23000 |
PAYLOAD(KG) | 39000 |
TOTAL MASS(KG) | 62000 |
DIMENSION(MM) | 8620X3250X3950 |
MAX SPEED(KM/H) | 45 |
MIN. CLEARANCE(MM) | 380 |
MIN TURING RADIUS (M) | LESS OR EQUAL TO 11 |
MAX GRAND ABILITY (%) | 44 |
APPROACH ANGLE/ANGLE OF DEPARTURE(°) | 35/52 |
WHEELBASE(MM) | 3750+1560 |
WHEEL TRACK(MM) | FRONT 2370, REAR2198 |
CAB | SIDE PALCED AND MINERAL CABINE |
ENGINE MOLD | ISME345 30 |
DISPLACEMENT(L) | 10.8 |
RATED HORSEPOWER(KW/PS) | 254/345 |
MAX TORQUE /ROTATING SPEED(NM/MIN) | 1710/1200 |
GEARBOX MODEL | FAST 10JSD180, FAST 10JSD220, ET-20109A |
FRONT AXLE | 12T |
REAR AXLE | 25TX2 |
EMISSION | EURO III |
FRAME | 320H X1020W X(10+8(+6))MM, 510L STEEL |
BRAKING SYSTEM | DOUBLE-WAY BRAKE WITH JACOBS |
ELECTRONIC SYSTEMS | 24V |
AIR FILTER | THREE ELEMENTS DISSERT AIR FILTERS |
FUEL TANKER CAPACITY (L) | 400L |
TYRE | 14.00-24 |
CARGO BOX SIZE(M) | 5.6 X3.0 X1.5(25M3) |
CARGO BOX MATERIAL | Q700 HIGH STRENGTH STEEL PLATE |
CARGO BOX MATERIAL THICKNESS (MM) | BOTTOM 10, SIDE 8 |
HYDRAULIC | FRONT LIFTING CHINA MADE/HYVA |
MAX LIFTING ANGLE(°) | 51 |
