Bitumen Tank

FOB Price

US$ 200,000 - 500,000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	XUETAO
Model Number	Mobile

Product Description

Specifications

Bitumen Tank designed specially for Mobile Aspalt Plant
Reasonable design and layout
Easily install and move

FEATURE

Our company can manufacture mobile asphalt mixing plant. This kind of plant is easy to instal and move when you want to move it from one site to another site.

Its reasonable design and layout is popular for kind of the customer. It is a perfect plant for small and middle road construction.

MAIN PARAMETER OF MOBILE ASPALT PLANT

Model Specification		MAMP50	MAMP 80	MAMP 100	MAMP 140
Rated Output(T/H)		50	80	100	140
Max. Mixing Capacity (kg/Batch)		700	1000	1500	1800
Installed Capacity(kw)		236	270	319	367
Oil Consumption(kg/T)		≤6.5
Fuel		Diesel /Heavy Oil
Product Temperature(°C)		130~160
Aggregate Weighing Accuracy		±0.3%	±0.3%	±0.3%	±0.3%
Bitumen Weighing Accuracy		±0.2%	±0.2%	±0.2%	±0.2%
Filler Weighing Accuracy		±0.2%	±0.2%	±0.2%	±0.2%
Deviation of Aggregate and Bitumen Ratio		≤±0.5%
Accuracy of Discharging Temperature		±5
Environment Noise (dB(A))		≤80
Type of Dust Collection		Primary Dust Collection: Gravity Type
		Second Dust Collection: Bag Filler
Concentration of Discharging Powder and Dust (mg/Nm³)		≤73.1
Semi-Trailer	Including: Cold Feed System, Aggregate Dry System, Filler Bin, Dust Collection System	Including: Cold Feed System, Aggregate Dry System, Filler Bin, Dust Collection System(Two Semi-Trailers)
	Including: Cold Feed System, Aggregate Dry System, Filler Bin, Dust Collection System, Bitumen Tank, Oil Heater, Control Room	Including: Cold Feed System, Aggregate Dry System, Filler Bin, Dust Collection System(Two Semi-Trailers), Bitumen Tank, Oil Heater, Control Room

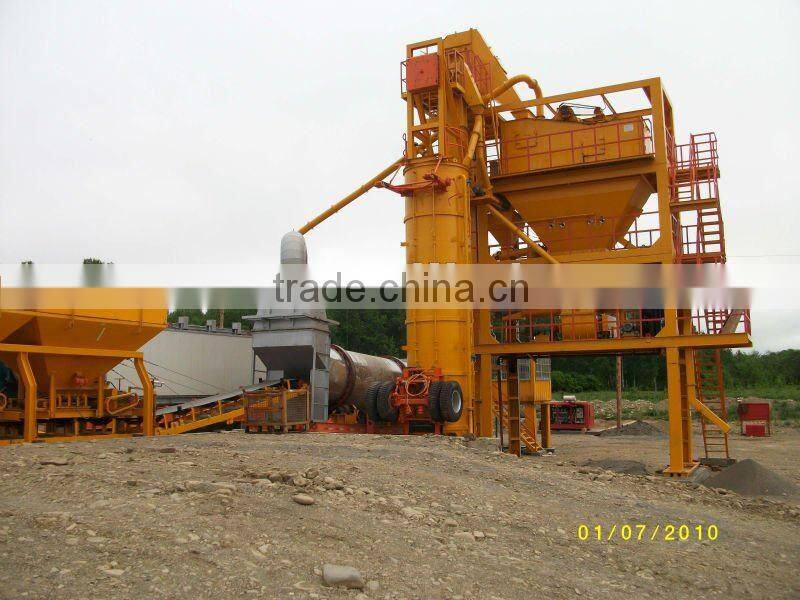

PROJECT IN RUSSIA
