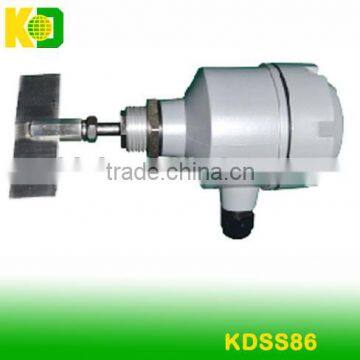

Standard Threaded type Paddle level switch
- China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KAIDI | |
| Model Number | KDSS86 |
Standard exporting carton, 2 PCS in 1 inner box, 40 PCS in an outer box
Product Description
Standard Threaded type Rotary Paddle level switch
Features:
High quality motor;
Operate reliable;
Four position sensitivity adjustable, applied widely;
Clutch device protect motor;
Double shaft sealing, protection class: IP65
Stainless-steel rotary probe and paddle
*Test strictly;
* High/low temperature type, extension length, all kinds of paddle, optional
Measure level for powdery solid material:
*Cereal *animal feed *wood chip *Plastic * sand *granular material *Rubber *agglomerate charge *cement
Specifications:
Power source: | 110VAC, 220VAC, 50/60HZ |
Power Consumption: | 3W |
Contact capacity: | SPDF 220VAC/5A 220VAC/3A |
Rotary speed: | 1RPM |
Insulation voltage: | AC1500V/min |
Torque: | 30~100kg.cm |
Specific gravity: | >=0.5 g/cm3 |
Connect: | screw probe 1"PF / 3/4"PF Flange JIS 2-1/2*5Kg/cm3 |
Model Selection:
Model | Desc. |
KDSS86: | standard screw connect |
KDSS86F: | standard flange connect |
KDSS86M: | shaft protective tube type |
KDSS86G: | shaft length adjustable type |
KDSS86FT: | hi -temp. flange type hi-temp. |
KDSS86MT: | shaft protective tube type |
KDSS86GT: | hi-temp. shaft length adjustable type |
All models drawing as following:
