Magnetic Water Level Indicator

Each PC in a plastical bag and pack in individual cartom, 2 PCS in one outer carton

Specifications

Magnetic water level indicator

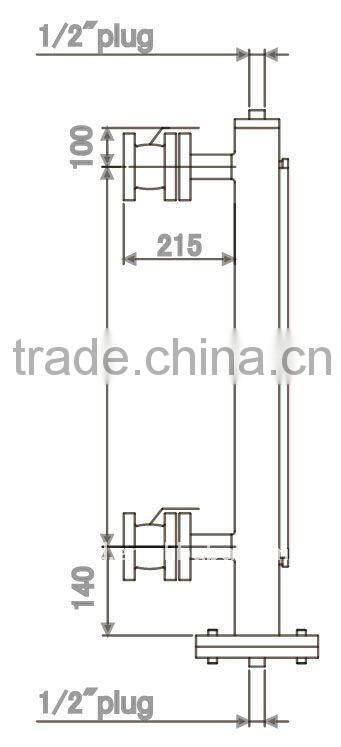

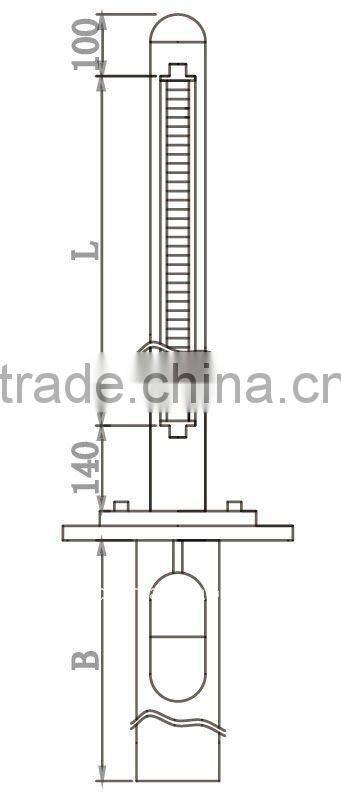

The KDMLI is standard, high performance magnetic level indicator. KDMLI is a single chamber design with either 2", 2.5", or 3" chamber diameter, as required by the application. There are twelve basic configuration styles, including top mount models.

KDMLI magnetic level indicators are produced in a wide range of materials of construction, including plastics. KAIDI also offers one of the most complete selections of process connection types and sizes in the industry.

KDMLI may be equipped with a variety of level transmitters and switches, as well as, flag and shuttle indicators with or without stainless steel scales. This enables the KDMLI to be a complete level and monitoring control.

Measurement Principle
A change of level in the process tank corresponds to a similar change within the KDMLI chamber. In response to the level movement, the KDMLI float moves accordingly, actuating the flags or shuttle for visual indication.

Features

• Broad range of chamber styles
• Fabricated non-magnetic chambers
• ANSI and DIN flanges
• Precision manufactured float
• Flag or shuttle type indicator

Applications

• Feedwater heaters
• Industrial boilers
• Oil water separators
• Flash drums
• Surge tanks
• Gas chillers

Options

• Level switches
• Level transmitters
• Stainless steel scale standard
• Customer scales
