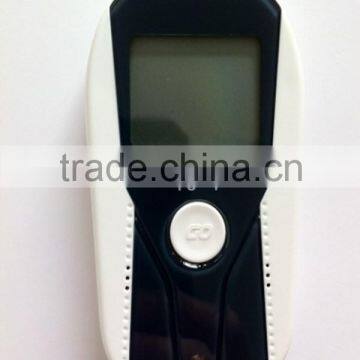

Mini temperature data logger/programmable temperature controller TC-4

Mini temperature data logger/programmable temperature controller TC-4

This data logger is mainly used for temperature recording during storage and transportation of foodstuff, medicine, chemicals and other products, especially widely used in all kinds of warehousing, logistics and cold chain, such as refrigerated containers, refrigerated trucks, refrigerated package, cold storage, laboratory, etc.

Product size: 90mm(length)X47mm(width)X17mm(height)

Technical parameters:

1. Temperature measuring range: -30C-+60C; for optional external sensor, -40C-+85C

2.Temperature accuracy: -20C-+40C, ±0.5C; others, ± 1C

3.Temperature unit: C or F optional, set through TC-4 data management software

4.Resolution: Temperature 0.1C

5.Record capacity: 16000points(MAX)

6.Record interval: 10s-24hour adjustable

7.Communication interface: USB interface

8.Power supply: inner CR2450 battery or power supply via USB interface

9.Battery life: in normal circumstances, if the recording interval is 15 minutes, and the buzzer alarm and key tone are disabled, battery can be used 1 year; if buzzer alarm and key tone are enabled, and press the key five times per day, and it alarms once, then the battery can be used for about 7 months

10.Ambient environmental temperature: -30C-+60C, in the low temperature environment, LCD displays slowly, while it has not an impact on the normal measuring or recording. Once the temperature recovers, it could display normally.

                                                          Packing:

Company Information:

                                                            About U-Control

 We're the manufacturer and has been customizing digital thermometer and temperature controller for heating and refrigeration equipment manufacturers since 2004.

The products are UL, CE, CQC, TUV , ISO9001:2000 and RoHS approved.

Technical supply free, one year guarantee and whole life long maintenance.

Our Services

                                     To find your target product

                                             Thank you for your interest to our product.

* If you feel confused that our items do not meet your require, contact us, tell us your require, we can do it.

* If you do not really understand the specification, contact us, tell us, we can explain it.

 * Any questions, any details, let us communicate.

                                                           Service

1. Professional technical team,  technical supply free,

2. Customized options

3. Custom product

4. one year guarantee and whole life long maintenance.

There is always a suitable one for you!

U-Controll Electric, your best choice!!

We look forward to hear from you!!!

Nice and lucky day!
