250kw diesel generator powered by MTU electric engine from Benz company

250kw diesel generator powered by MTU electric engine from Benz company

MTU, the abbreviation of Moteren und Turbinen-Union Friedrichshafen GmbH, is the branch of Daimler-Benz Group Companies, and is world's leading manufactures of diesel engine. It has good global reputation with its leading technology, highly reliable products and first-class aftersales service. Its power ranges from 35kw to 9000kw. They are widely used in naval ships, heavy duty trucks, construction machinery and railway locomotive.

Technical Parameters for 250kw diesel generator powered by MTU electric engine from Benz company:

1. Genset Model: CL-250C;

2. Output power：250KW/312.5KVA,

3. Rated Voltage: 400/230V;

4. Dimension （L X W X H）mm：2800 *1300 * 1800;

5. Weight：2900Kg;

6. Bore×Stroke(mm): 122*150;

7. The regulating rate of steady voltage: ≤±0.5%;

8. The regulating rate of instantaneous voltage: ≤-10%/ +15%;

9. The time of steady voltage: ≤1.5sec;

10. The waving rate of voltage: ≤0.5%;

11. The regulating rate of steady frequency: ≤3%;

12. The regulating rate of instantaneous frequency: ≤±10%;

Diesel Engine:

1. Brand: MTU;

2. Model: 6R1600G20F;

3. Cylinder No.:6;

4. Rotating Speed: 1500/1800RPM;

5. Displacement: 10.5L;
6. Lubricating oil capacity: 46L;
7. Fuel Consumption: 199g/kw.h.
8. Starting way: DC24V starting with electricity;
9. The regulation of rotating speed: Electronic speed.

10.Type:four strokes, waste gas turbine boost,direct spurting type.

Alternator :

Brand ( selectable): Hengsheng/Stamford/Marathon etc.;

Number of Phase: 3;

Connecting Type: Three Phase and Four Lines;

Number of Bearing:1;

Grading Protection: IP21/23;

Altitude: ≤1000m;

Exciter Type: Brushless (AVR automatic voltage regulating);

Insulation Class: H degree.

Control Panel

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.

Optional Types for Engine

Cummins Engine(USA ) 15KVA - 2000KVA
Deutz Engine(Germany) 20KVA - 150KVA
Perkins Engine(UK) 8KVA - 2000KVA
Volvo Engine(Sweden) 85KVA - 700KVA
Doosan Engine(Korea) 60KVA - 850KVA
Lovol Engine(China) 20KVA - 150KVA
Yangdong Engine(China) 8KVA - 40KVA
Weichai Engine(China) 8KVA - 150KVA
Shanghai Engine (China) 60KVA-1000KVA
Yuchai Engine (China) 20KVA-1125KVA

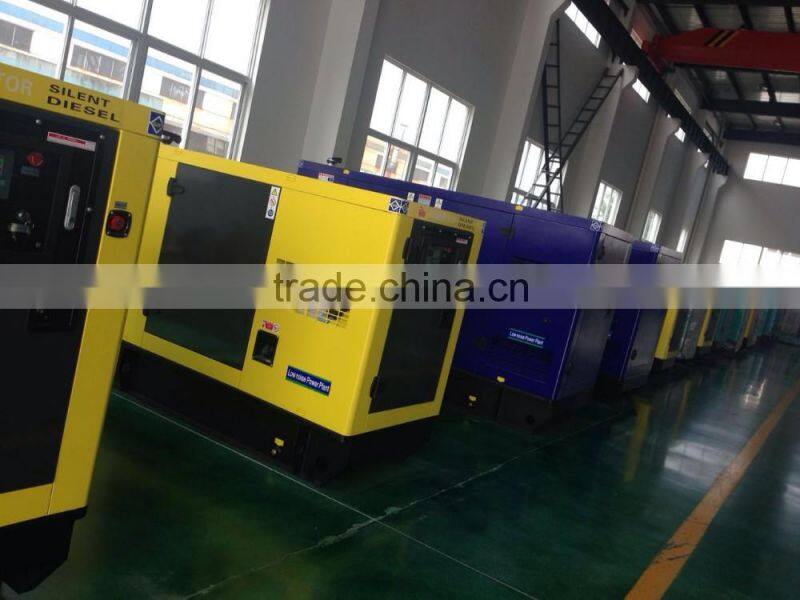

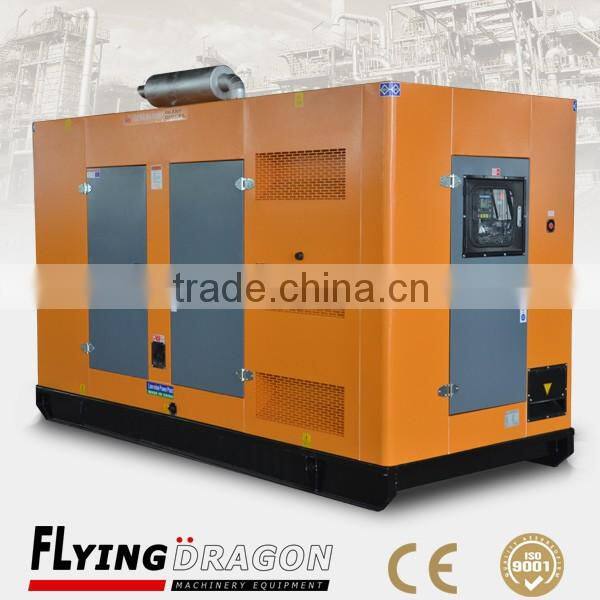

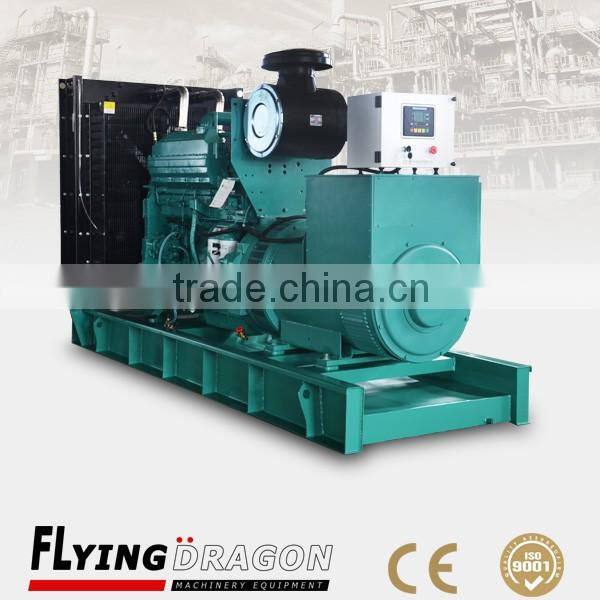

Optional types for Diesel generator set: Soundproof type, Open type.

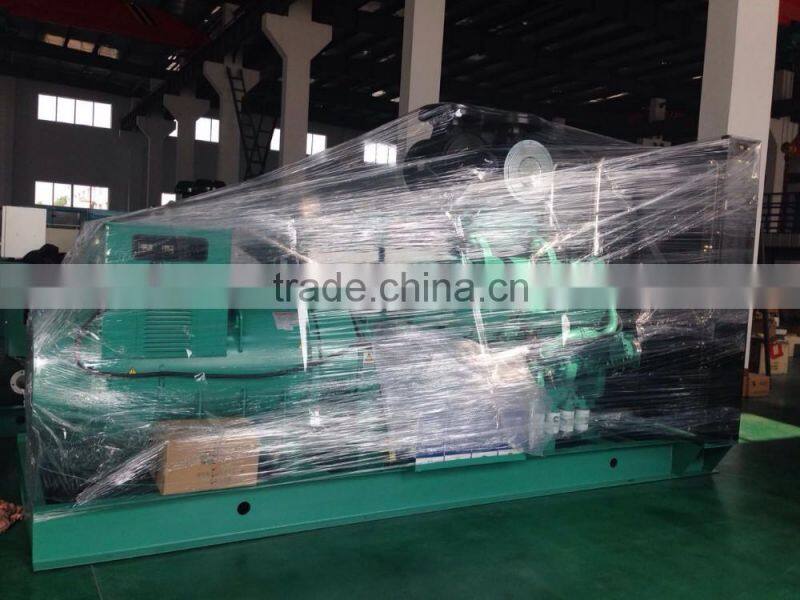

Packing Details  : lastic film wrap up the generator, load into Plywood case, 1 set/case;

Delivery Details : 7 working days after receiving the deposit.
