Home > Products > Transformer > JBK5 Transformer fo Machine Tool Black

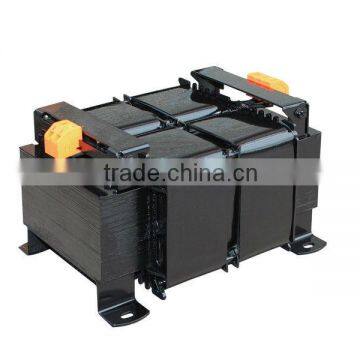

JBK5 Transformer fo Machine Tool Black
- 6000 Piece / Pieces per Month
- NINGBO or SHANGHAI
- T/T
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | AKSDQ | |
Model Number | JBK5 | Usage | Power | |
Phase | Single | Coil Structure | Toroidal | |
Coil Number | Other |
Product Description
Specifications
1.reasonable price, high quality2.reliable performance
3.long-term operation
4.beautiful appearance
pper coil
Specifications
1)IEC,ISO,CE certificate
2)Top 3 in Isolation transfromer
3)Sold to Malaysia,Singapore,Lebanon,Thailand a lot
4)OEM
Our transformers sell well all over the world, and are exported to Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa and so on. We have won a good reputation among customers at home and abroad. We will do our best to provide more high-quality products and services for you in the future!
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2.Port of loading: Ningbo or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time:10-30 days according to order quantities.
1. Quality assurance: All the products will go through lots of tests carefully before dispatch: Raw material check, Winding test, Assemble test, Painting check, Nameplate check and routine tests.
2. Competitive production capacity: monthly production more than 1500 sets
3. Manufactuer's price: Factory direct sale, most competitive price.
JBK5 series machine tool control transformers apply to be used as control power, working light of general electric appliance and mechanical equipment of various trades, and power of signal lamp with AC50-60HZ, input voltage doesn’t exceed 500V, output voltage doesn’t exceed 220V.
Type | Rated power(VA) | Rated input voltage(V) | Rated output voltage(V) | |||||
JBK5-40 | 40 | Control | illumination | indication | ||||
JBK5-63 | 63 | 220±5% | 110(127) | 24(36) | 6(12) | |||
JBK5-100 | 100 | |||||||
JBK5-160 | 160 | |||||||
JBK5-250 | 250 | |||||||
JBK5-400 | 400 | |||||||
JBK5-500 | 500 | |||||||
JBK5-630 | 630 | |||||||
JBK5-800 | 800 | |||||||
JBK5-1000 | 1000 | |||||||
JBK5-1600 | 1600 | Distribution of capacity for different windings | ||||||
JBK5-2500 | 2500 | would be according to the users requirements |
Type | Rated power(VA) | Installing dimensions | Outline dimensions | Cavity | |||||
A | C | B | D | E | F | K or K×J | |||
JBK5-40 | 40 | 56±0.2 | 46±0.5 | 78 | 72 | 95 | 1.2 | 4.6×8 | |
JBK5-63 | 63 | 56±0.2 | 46±0.5 | 78 | 72 | 95 | 1.2 | 4.6×8 | |
JBK5-100 | 100 | 64±0.2 | 62±0.5 | 85 | 75 | 98 | 1.5 | 4.6×8 | |
JBK5-160 | 160 | 84±0.2 | 73.5±0.5 | 96 | 92 | 110 | 1.5 | 5.5×10 | |
JBK5-250 | 250 | 84±0.2 | 85±0.5 | 96 | 100 | 110 | 1.5 | 5.8×10 | |
JBK5-400 | 400 | 90±0.2 | 85±0.5 | 120 | 100 | 130 | 2 | 5.8×10 | |
JBK5-500 | 500 | 90±0.2 | 98 | 120 | 120 | 130 | 2 | 5.8×10 | |
JBK5-630 | 630 | 122±0.2 | 90±0.5 | 150 | 110 | 155 | 2 | 7×14 | |
JBK5-800 | 800 | 122±0.2 | 105±0.5 | 150 | 130 | 155 | 2 | 7×14 | |
JBK5-1000 | 1000 | 138±0.2 | 105±0.5 | 168 | 128 | 170 | 2 | 9×15 | |
JBK5-1600 | 1600 | 138±0.2 | 116±0.5 | 168 | 140 | 170 | 2 | 9×15 | |
JBK5-1000 | 1000 | 127.5±2 | 152±2 | 155 | 205 | 135 | 3 | 7×12 | |
JBK5-1600 | 1600 | 140±2 | 176±2 | 180 | 230 | 153 | 3 | 7×12 | |
JBK5-2500 | 2500 | 173±2 | 200±2 | 205 | 260 | 170 | 4 | 7×12 |
