xcmg 5t wheel loader (3m3, 5ton payload) of xcmg zl50g loader
USD $15,000 - $70,000
/ Unit
1 Unit(Min.Order)
- 50000 Unit / Units per Month
- SHANGHAI
- T/T
You May Like
-
XCMG loading machine LW400KN of 4ton wheel loader
-
wheel loader china LW500KL of XCMG wheel loader for sale
-
mini wheel loader LW188 (1.8 ton wheel loader) of 1.8 ton wheel loader
-
XCMG zl50g wheel loader china with 5 ton wheel loader
-
Chinese XCMG LW500FN front wheel loader
-
XCMG LW500KN (3.0m3, 5ton payload) of wheel loadel
Product Details
| Condition | New | Brand Name | XCMG | |
| Model Number | ZL50G | Place of Origin | Jiangsu, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7985*2835*3400mm | Rated Load | 5000kg | |
| Certification | CE,Ghost,ISO | Warranty | One year or 1200 working hour: whichever occurs first | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

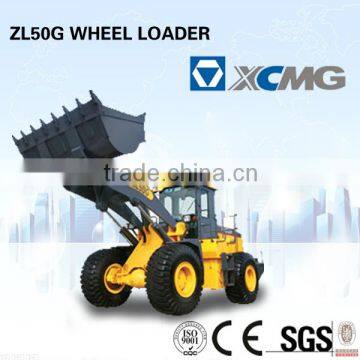

XCMG zl50g loader 5t wheel loader loading machine(3m3, 5ton payload)
price xcmg wheel loader zl50g
XCMG 5t wheel loader
Elastic suspension cab, Spacious, Bright and Good view for driver
XCMG wheel loader with ce
| Overall Data | Steering System | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bucket Capacity (m3) | 3 | Type | Hydraulic Load Sensing | ||||||||||||
| Rated Payload (kg) | 5000 | Cylinders-Bore×Stroke (mm) | 2-100×324 | ||||||||||||
| Operating Weight (kg) | 16800 | Steering Pump | Gear Pump | ||||||||||||
| Traction Force (kN) | 155 | System Pressure (MPa) | 15 | ||||||||||||
Breakout Force (kN) Max.Dumping Height (mm) | 170 3103 | Flowrate (L/min/RPM) | 176/2200 | ||||||||||||
| Travel speeds (km/h): | Steering Angle | ±35° | |||||||||||||
| I | II | Hydraulic System | |||||||||||||
| Forward | 11.5 | 36 | Lift Cylinders-BorexStroke(mm) | 2-180×721 | |||||||||||
| Reverse | 16 | Tilt Cylinder-BorexStroke (mm) | 1-200×563 | ||||||||||||
| Engine | WEICHAI WD10G220E21 | Model of Implement Pump | Gear Pump | ||||||||||||
| Rated Power (kw/rpm) | 162/2200 | Flowrate (L/min/RPM) | 220/2200 | ||||||||||||
| Peak Torque (Nm/rpm) | 860/1400-1600 | System Pressure (MPa) | 16 | ||||||||||||
| Starting Voltage (V) | 24 | Pilot Control System Pressure(MPa) | 2.5 | ||||||||||||
| Drive Train | |||||||||||||||
| Hydraulic Cycle Time, Rated Load in Bucket (In Second): | |||||||||||||||
| Torque Converter | Single-stage, Duo-turbine, 4-element | Raise(Loaded) | Dump | Lower(Empty) | Total | ||||||||||
| Torque Ratio | 4 | 6 | 1.2 | 3.8 | 11 | ||||||||||
| Transmission | Planetary Powershift Transmission | Electric System | |||||||||||||
| Gear | 2F/1R | System Voltage (V) | 24 | ||||||||||||
| Pressure of Transmission (MPa) | 1.2-1.5 | Battery(2 in series) (Ah) | 120 | ||||||||||||
| Main Reducer | Spiral Bevel, 1-stage Reduction | Lamp Voltage (V) | 24 | ||||||||||||
| Final Reducer | Planetary Reduction | Service Refill Capacity | |||||||||||||
| Tire | 23.5-25 L-3 16PR | Fuel Tank (L) | 235 | ||||||||||||
| Brake System | Hydraulic Tank (L) | 220 | |||||||||||||
| Service Brake | Single Circuit Caliper Air Brake | Crankshaft (L) | 20 | ||||||||||||
| Setting Pressure (MPa) | 0.70-0.78 | Transmission (L) | 45 | ||||||||||||
| Parking & Emergency Brake | Air Actuated Caliper Brake | Front Axle (L) / Rear Axle (L) | 23/23 | ||||||||||||
| Air Conditioning System (Optional) | |||||||||||||||
| Heating Capacity (W) | 5800(±10%) | ||||||||||||||
| Cooling Capacity (W) | 4500(±10%) | ||||||||||||||
