Home > Products > Cleaners/Defluers > Automatic Stencil ultrasonic cleaning machine

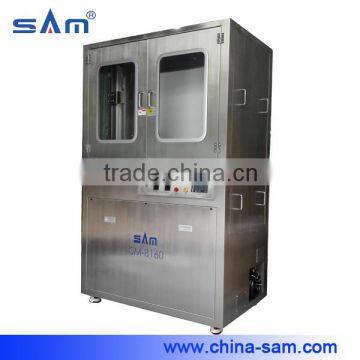

Automatic Stencil ultrasonic cleaning machine
- Shenzhen /Hongkong
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | SAM | Model Number | SM-8160 | |
| Feature | Critical Cleaning / Residue Free | Fuel | Electric | |
| Certification | CE | Use | Other | |
| Cleaning Process | Solvent Cleaning | Cleaning Type | Industrial Ultrasonic Cleaner | |
| Industry Used | Electronic Industry | Material | Metal / Coil | |
| Power(W) | 10KW | Dimension(L*W*H) | 1220mm*700mm *2200mm | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Features
Patent design, close contacting ultrasonic combining with spray cleaning, the stencil is no need to dip into the tank
The stencil moves up and down with a gap 0.5-2 mm between the ultrasonic source with the cleaning agent fl ows by
High pressure air knives blowing the stencil closely during the lift makes the drying time very short
Efficiently clean fi ne printing pitch and apertures with the solder paste and glue
The cycle time is less than 10 min for the solder paste and 15 min for the glue
PLC control, two modes, simple operation with buttons, safe and reliable, easy maintenance
MPC technology with fi ltration system, low running cost and environment-friendly
Specifications
External dimensions:1220mm(L)×700mm(W) ×2200mm(H)
Spraying chamber dimensions:870mm(L)×152mm(W) ×870mm(H)
Max stencil size :736mm*736mm*40mm(L*W*H)
Min stencil size : 550mm*500mm*30mm(L*W*H)
Clean agents : DI water + water-based cleaner
Ultrasonic power :1.8KW
Ultrasonic frequency :40KHZ
Water pump pressure : 0.2~0.3Mpa
Volume of tank :30L
Heating power : 4KW
Work temperature: room temperature~60℃
Fans power : 3KW
Voltage/Hz:380V AC/50HZ
Power:10KW
Weight:350 kg
