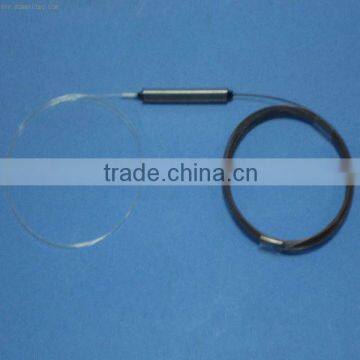

High Quality PLC Fiber Optic Splitter at Pretty Competitive Price

FOB Price

US$ 1 - 100 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Fiber Optic Splitter
Model Number	High Quality PLC Splitter

High Qualtiy PLC Splitter(1x4;1x8;1x16;1x32;2x16;2x32)
Good Optical performance
High consistency
Small size
High reliability

Application:

1. Fiber Optic CATV;

2. Fiber to home (FTTH);

3. Passive Optical Networks;

4. Fiber communication systems;

5. Local Areal Networks (LAN)

Features:

1. High reliablility;

2. Small size;

3. Good Optical performance;

4. High consistency

Parameters		1x4	1x8	1x16	1x32	1x64
Operating Wavelength(nm)		1260-1650
Insertion Loss (dB)	Max(S/P)	7.4/7.2	10.7/10.5	13.7/13.5	16.9/16.5	21
Loss Uniformity (dB)	Max	0.6	0.8	1.2	1.7	2.5
Return Loss (dB)	Min(S/P)	50/55	50/55	50/55	50/55	50
PDL (dB)	Max	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	Min	55	55	55	55	55
Pigtail Length(m)		1.2(±0.1) or customer specified
Fiber Type		SMF -28e or customer specified
Wavelength Dependent Loss(dB)		1	1	1	1	1
Temperature Stability		0.6	0.6	0.8	1	1
(-40~85 °C)(dB)		0.6	0.6	0.8	1	1
Operating Temperature( °C)		-20~75
Storage Temperature( °C)		-40~85
Packaging Size(L x W x H)(mm)		40x4x4	40x4x4	40x4x4	50x7x4	60x12x4
