Home > Products > DC Contactor RELAY > 125a DC CONTACTOR RELAY 125D

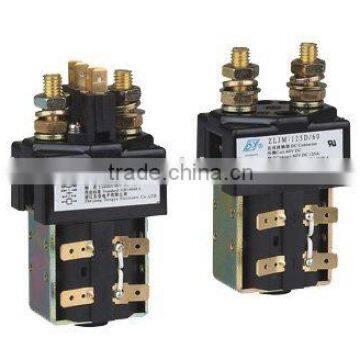

125a DC CONTACTOR RELAY 125D
- 1000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | ZLJM-125D | Electricity Type | DC | |
| Number of Pole | 2 | Main Circuit Rating Voltage | Other, 12VDC-120VDC | |
| Main Circuit Rating Current | Other, 125A |
Product Description
Model No. | ZLJM—125D/ |
Contact Arrangement | 1H (SPST-NO) |
Contact Material | AgCdO(12) |
Contact Rating(at Resistive Load) | 125A 80VDC 125A 250VAC |
Max. Switching Voltage | 80VDC,250VAC |
Max. Switching Power | 25000VA |
Endurance of Over Loading Current(7Ie/10S) | 875A/10S |
Coil Rated Voltage | 12,24,48,60,72,96,120VDC,etc |
Pick-up Voltage | (40~70) % of coil rated voltage |
Drop-out Voltage | (5~30) % of coil rated voltage |
Contact Pressure Drop | At most 30mv when 100A |
Insulation Resistance | Min. 100MΩ at 500VDC |
Dielectric Strength (Between Insulated Electric Parts) | 1000VAC 50 HZ/60 HZ (1 minute) |
Operate Time | Max. 50mSec. |
Release Time | Max. 50mSec. |
Ambient Temper | -25℃~+60℃ |
The shocking of fixed point | (10~200)HZ,Acceleration≤3.5g |
Shocking | (60~100) ops/minute,Acceleration≤4g |
Mechanical Life | 100,000 Operations (no load) |
Electrical Life | 50,000 Operations (at rated load) |
Model No. | ZLJM—125D/ |
Contact Arrangement | 1H (SPST-NO) |
Contact Material | AgCdO(12) |
Contact Rating(at Resistive Load) | 125A 80VDC 125A 250VAC |
Max. Switching Voltage | 80VDC,250VAC |
Max. Switching Power | 25000VA |
Endurance of Over Loading Current(7Ie/10S) | 875A/10S |
Coil Rated Voltage | 12,24,48,60,72,96,120VDC,etc |
Pick-up Voltage | (40~70) % of coil rated voltage |
Drop-out Voltage | (5~30) % of coil rated voltage |
Contact Pressure Drop | At most 30mv when 100A |
Insulation Resistance | Min. 100MΩ at 500VDC |
Dielectric Strength (Between Insulated Electric Parts) | 1000VAC 50 HZ/60 HZ (1 minute) |
Operate Time | Max. 50mSec. |
Release Time | Max. 50mSec. |
Ambient Temper | -25℃~+60℃ |
The shocking of fixed point | (10~200)HZ,Acceleration≤3.5g |
Shocking | (60~100) ops/minute,Acceleration≤4g |
Mechanical Life | 100,000 Operations (no load) |
Electrical Life | 50,000 Operations (at rated load) |
