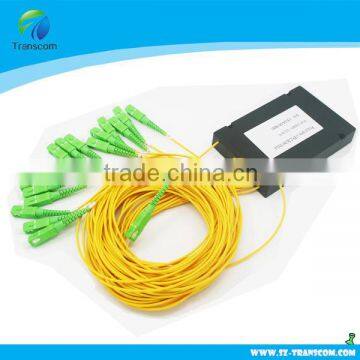

Cassette Type ABS SC/APC 1x16 PLC Splitter
- SHENZHNE
- T/T Credit Card
You May Like
-
Cassette Type 1M 2.0mm 1x32 PLC Splitter Module
-
Cassette Type 1x64 PLC Splitter
-
1x16 PLC Fiber Optic Splitter Module
-
FTTH Optical PLC Splitter for GPON Distribution
-
1x8 PLC Splitter (MINI TYPE) 1m, (input: SC/PC & output: SC/PC, 0.9mm), G.657A, Single mode
-
1x4 PLC Splitter (MINI TYPE) 1m, (input: SC/PC & output: SC/PC, 0.9mm), G.657A, Single mode
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | PLC Splitter |
Product Description
Cassette Type ABS SC/APC 1x16 PLC Splitter
Cassette Type ABS SC/APC 1x16 PLC Splitter Feature
1.Good uniformity and low insertion loss
2.Low Polarization Dependent Loss
3.Stability Telecordia GR-1221 and GR-1209
4.Components through TLC-Certified,Conform to YD1117-2001
5.Operating environment: -40ºC to +85ºC
6.High Polarization Extinction Ratio & Excellent Uniformity
7.G.657A Fiber
8.Good channel-to-channel uniformity
Cassette Type ABS SC/APC 1x16 PLC Splitter Parameter
Parameter | Specification | ||||||||
Operating Wavelength(nm) | 1280 ~1650 | ||||||||
Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×8 | 2×16 | 2×32 |
Insertion Loss(dB) | ≤3.9 | ≤7.1 | ≤10.3 | ≤13.3 | ≤16.3 | ≤19.8 | ≤10.8 | ≤13.8 | ≤16.8 |
Uniformity(dB) | ≤0.4 | ≤0.5 | ≤0.5 | ≤1.0 | ≤1.0 | ≤2.5 | ≤1.0 | ≤1.5 | ≤2.0 |
PDL(dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.1 | ≤0.2 | ≤0.2 |
Wavelength Department Loss (dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.3 | ≤0.4 | ≤0.7 | ≤0.1 | ≤0.3 | ≤0.4 |
Temperature Department Loss (dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.3 | ≤0.4 | ≤0.4 |
Directivity(dB) | 55 | ||||||||
Return Loss (dB) | 50 | ||||||||
Operating Temperature(℃) | -40 ~ +85 | ||||||||
Cassette Type ABS SC/APC 1x16 PLC Splitter Applications
1.Fiber to the point (FTTx)
2.Fiber to the home (FTTH)
3.Passive optical networks(PON, GEPON)
4.Local area networks (LAN)
5.Cable television (CATV)
6.Test equipment
